| Brand Name: | Siliconegreat |
|---|---|
| Color: | Clear |
| Sample: | Yes |
| appearance: | Nice |
| MOQ: | 200m |
| Model Number: | SGT006 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Product Description:

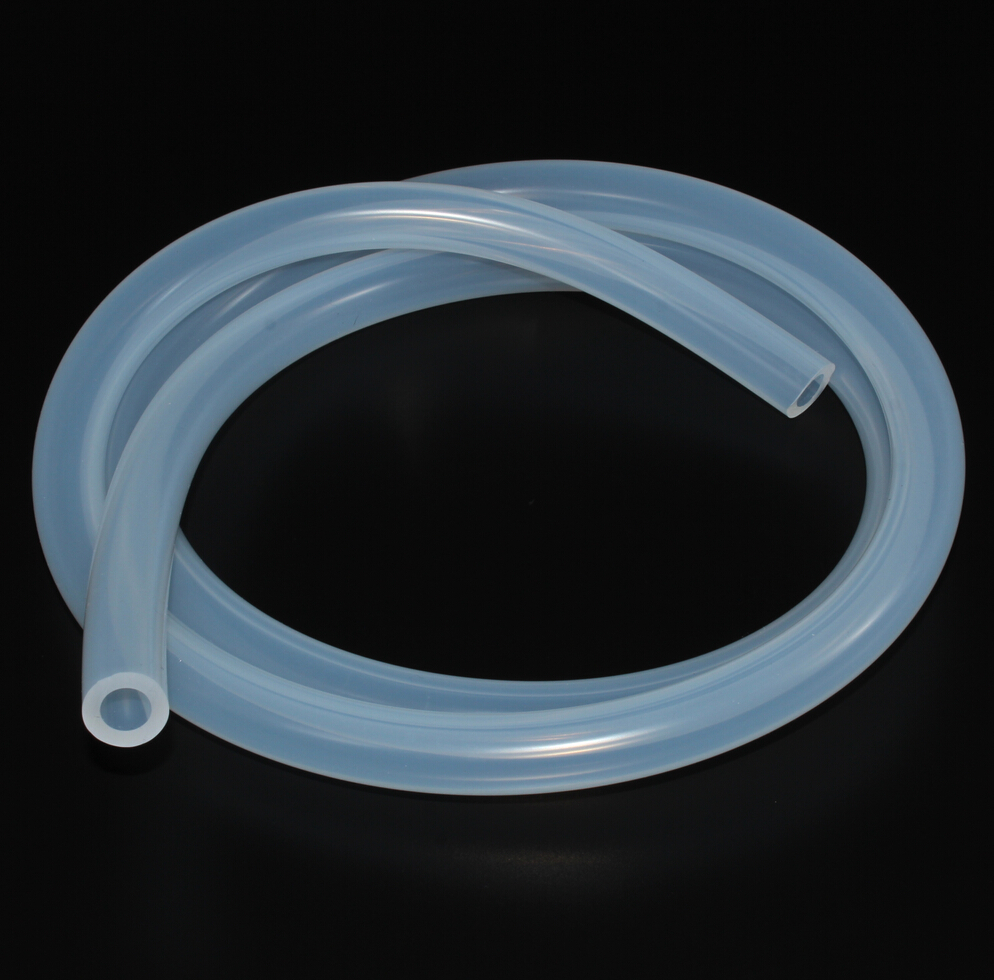

the Industrial Type Peristaltic Pump Silicone Tube has an extremely
Resilient silicone with Medical-grade platinum cured silicone raw material. the
Pump tube is extruded with platinum-cured high purity silicone material, it is
with a smooth inner wall and it will not sticky after pressing for a long time.
the tube is with accurate tolerance, even wall, high tear-resistance & high
Resilience.It displays excellent resistance to heat, weathering, ozone, and a
Wide range of chemicals. and will retain its flexibility & properties
Within -50°C ~ 200 °C.
Please feel free to contact us at info(at) or visit our website for more information.
Application:
Laboratory Equipment Peristaltic Pumps Titration
Pump Filling Equipment Biological Engineering Laboratory Uses GMP Pharmaceuticals
Etc.
Features:
Extruded with 100% medical-grade platinum cured raw silicone material.
Siliconegreat Peristaltic Pump tubing is Made of the medical food-grade silicone material, which is suitable for safe Use in any field.
Cold Tolerance & High-Temperature Resistance
Siliconegreat Peristaltic Pump tubing will not harden in cold weather and high-temperature Resistance.
Wear-Resistant & High Tear Resistant & Stable Flow
Siliconegreat Peristaltic Pump tubing is fatigue resistant,wear-resistant, high Tear-resistant & stable flow.
Long Working Life
Siliconegreat Pump tubing working life is more than 200 hours at 600RPM with the water without pressure.
Does Not Sticking Together after A Long Time of Pressing
Siliconegreat Pump tubing is
Stick-resistance. (Our test: the total thickness of the two walls of the silicone
Tube is 2 mm,1.8 mm after clamping, and baked at 150℃for 50 hours. Lt is not sticking
Together.)
Specification Overview:
P.N |
Peristaltic Pump Silicone Tube |
Hardness |
40~60A |
Tolerance |
±0.1mm~±0.05mm |
Temperature Resistance |
-50℃~200℃ |
Product Feature |
the pump tube is extruded with platinum-cured High purity silicone material, it is with a smooth inner wall and it will not Sticky after pressing for a long time. the tube is with accurate tolerance, Even wall, high tear-resistance & high resilience. |
Working Life |
the main factors affecting the service life of silicone rubber tubes are: 1) Pump speed; 2) Pump pressure; 3) Silicone rubber hose material properties; 4) Chemical compatibility; 5) Fluid corrosion. Our testing methods for limit life of Peristaltic pump silicone tubes are as follows: 1) Medium is water under the normal Temperature; 2) the speed of the peristaltic pump is 300rpm; 3) Continuously testing for 24 hours every Day; 4) the testing result for the qualified Products is about 500 hours. |
Chemical Applicability |
1) Resistant to weak acid and a weak base Such as weak corrosion of drug, low concentration of potassium permanganate, Acetaldehyde reagent, animal oil, vegetable oil, Vaseline, glucose, alcohol, Hand sanitizer, fruit juice, disinfectant liquid, blood, weak acid-alkaline Gas. 2) Not suitable for strong acid, alkali and Organic solvents such as high concentration of sulfuric acid, hydrochloric Acid. Sodium hydroxide, nitrate, lubrication oil and silicone oil, mineral Oil, oil, gasoline, diesel oil, hydraulic oil, high concentration of acetone, Carbon tetrachloride, high concentration ozone, etc. 3) Please contact us if there are any other Questions regarding the suitability of the product. |
Applications |
this product is widely used in laboratory Equipment, GMP pharmaceutical, biological engineering, molecular biology, Fine chemical industry, environmental protection, food processing, drinking water Projects, and other fields. |
Post-processing |
Logo Printing |
Certificate |
Cell Toxicity Test, CE, FDA |
FAQ:
Q1: Type of our company?
A: Siliconegreat is an Industry and Trade Integration
Company.
Q2: What kind of silicone products do you produce?
A: Various levels of silicone extrusion products, custom
Silicone tubings, sealing ring, various shapes of silicone strip, etc.
Q3: Is the free sample available?
A: Yes! One-meter free sample. but the shipping cost
Will be on your side.
Q4: What is your MOQ?
A: No MOQ. but the value of the goods should be more
Than 350 USD.
Q5: What is your delivery time?
A: 1) Samples are generally shipped by air within two Days if we have stock.
2) the formal order will be
Shipped within 10 days. If you have any special requirements, please negotiate
the delivery date with us.
Q6: What is your payment term?
A: by T/T (Tele-transfer), Usually 30% down payment
& the balance will be paid off before shipping.
Q7: Is a Customized silicone tube available?
A: Yes. Please offer your required specifications and
Drawings.
Q8: What format of the file do you need if I want my own Design?
A: JPG, AI, CDR or PDF, etc. We have professional Designers and we can draw the artwork.
