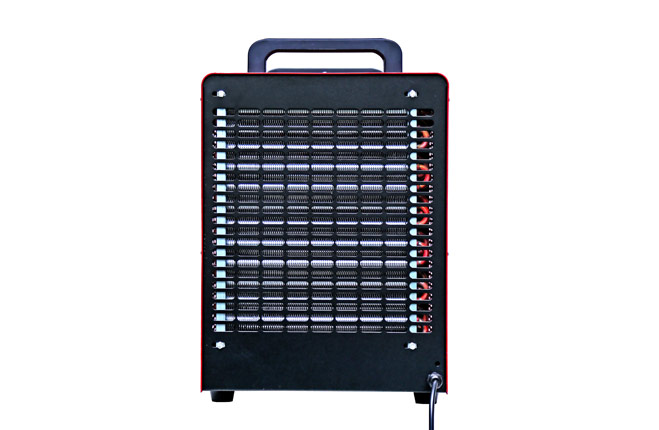

WRC-350 20L Welder water cooler is a large-capacity water cooler with a water tank capacity of 20L, which can meet the heat dissipation requirements of argon arc welding machines, electric welding machines, spot welding machines, plasma welding machines and other electrical equipment requiring circulating water cooling. WRC-350 welding water cooler adopts built-in large wind blower, high-power high-lift centrifugal pump, three-layer four-tube high heat dissipation rate copper row radiator, which can efficiently exchange heat with the surrounding air in time, greatly improving the heat dissipation power.



Advantage of WRC-350 20L



the water tank is made of high temperature resistant material and is integrally formed to effectively avoid cracking and water leakage.



Use high-lift stainless steel water pump to help speed up heat dissipation efficiency.



High-quality structural design can exert maximum heat dissipation function.



Specification of WRC-350 20L Welder Water Cooler

Main voltage	220V	380V
Frequency	50Hz/60Hz
Current	2.1A	1.2A
Phase number	1 phase
Heat dissipating power	4.6KW
Pump power	0.37kw
Max.Pressure	0.6Mpa
Tank capacity	20L
Working temperature	-20℃-60℃
Net Weight	17kgs
Gross Weight	19kgs
Product dimension(mm)	560*330*450(L*W*H)
Packing dimension(mm)	630*340*500(L*W*H)



Application of WRC-350 20L Welder Water Cooler

AC and DC argon arc welding equipment, gas shielded welding equipment, plasma power supply equipment, resistance welding machine, laser cutting machine, etc.
