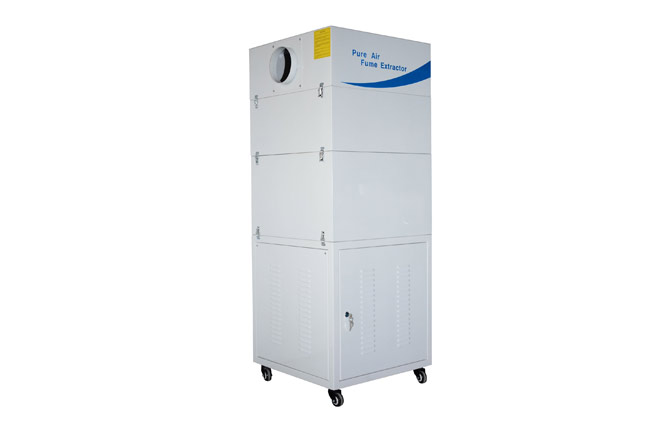

Bao-1000  is used to purify the fume generated during welding of metal materials. Bao-1000 is equipped with a high-power fan with high suction and low operating noise. It has a four-stage high-capacity filter to ensure high-efficiency purification of dust, odor and harmful gases. the filtration efficiency of bao-1000 can reach 99.7%, which can filter 0.3 micron micro dust (Laboratory) and meet the indoor emission standard.



Advantage of Bao-1000 welding extraction system



It can filter 0.3 micron dust.



Imported motor, stable performance, low noise, can work continuously for 24 hours.



the suction arm hose is made of high-grade polyester, which is fireproof and flame retardant.



Specification of Bao-1000 Welding Fume Extraction Systems

Air Flow	1000m3/h
Voltage / Frequency	220V, 50Hz
Input Power	750W
Air Pressure	2000Pa
Filtration Rate	99.97%
Filter Type	G3 primary Filter + F5 medium efficiency filter+ H13 HEPA filter + gas filter
Noise	≤ 60dB
Exhaust Arm	Φ150mm x 1.8M
Machine Dimension	550*550*1450mm
N.W	100kg



Application of Bao-1000 Welding Fume Extraction Systems

Suitable for single station manual arc welding, argon arc welding, secondary welding, grinding and polishing and other fume collection and filtration.
