Complementary to, 2-D tapered fiber optic cable bundle uses flat-bottom groove and lid to stack multiple fibers tightly together in a rectangular or circle arrangement.



Features of fiber optic cable bundle



Arbitrary pattern



Customer determined core pitch



Pitch accuracy<5um



Fiber type: SM/MM/PM



Compact Design



Customized solutions

how It Works

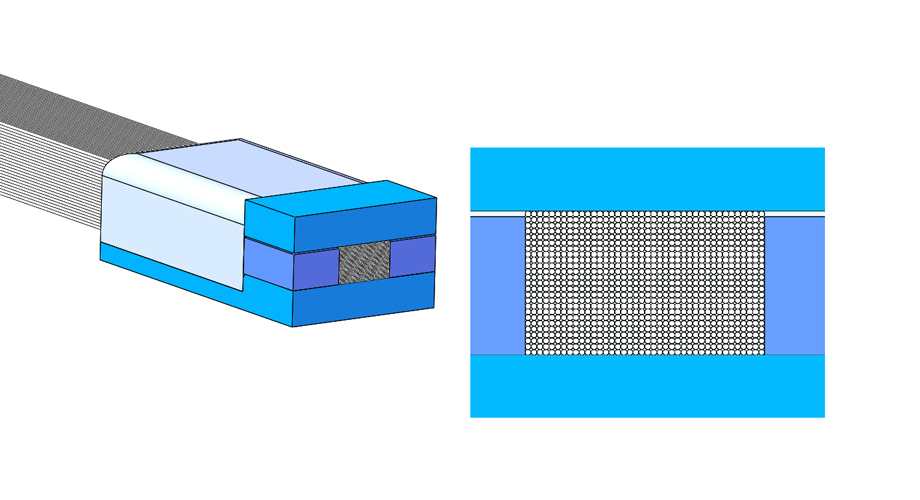

D fiber optic bundle, or fiber bundle optics, uses flat-bottom groove and lid to stack multiple fibers tightly together in a rectangular or circle arrangement. in tapered fiber bundle, the core distance of the fiber is usually determined by the fiber diameter, so once the type of the bundled fiber is determined, the core distance of the fiber is fixed as well. To achieve smaller core pitch, MEISU has its own corroding technique to reduce the existing fiber diameter to any size.  We also haveFiber bundles pdf You can review.

 MEISU is one of professional fiber optic switches manufacturers. We provide Linear Fiber Array, PM Fiber Device,  and so on. Want to know about? Please contact us.
