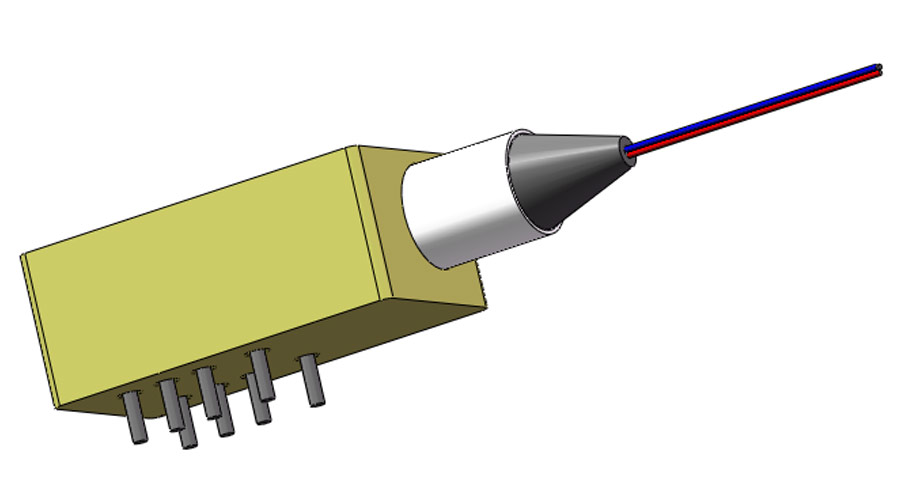

this kind of  is driven by a relay to control the prism to turn, thus switch the path, with only few channels such as,2, and. It is normally used for OLP (Optical Fiber Line Protection) system. this mini switch can be seen as an updated version of the regular mechanical optical switch in terms of the size of the case. Therefore, compared with the normal mechanical switches, it is more integratable.



Micro Optical Switch Feature



1x4 optical switch,1x2 optical switch,2x2 optical switch



Latching and Non-latching



IL: 0.7dB



Switching speed: 4ms



Epoxy-free on the optical path



High isolation



Compact design



how It Works

Mini Mechanical Optical Switch is of the same structure of the normal mechanical optical switch, realized by using mechanical devices to move mirror or prism physically, thus to redirect optical signals to the desired output port. Whereas, mini type is more compact and easier to be integrated into customer's system.



MEISU is one of professional fiber optic switches manufacturers. We provide Linear Fiber Array, PM Fiber Device,  and so on. Want to know about? Please contact us.
