Working Frequency: | Downlink up to 2.4Gbps Uplink up to 200Mbps |
---|---|
Port Number: | 20 |
Type: | CDMA |
Brand Name: | Wavetel |
Screen: | 1000 |

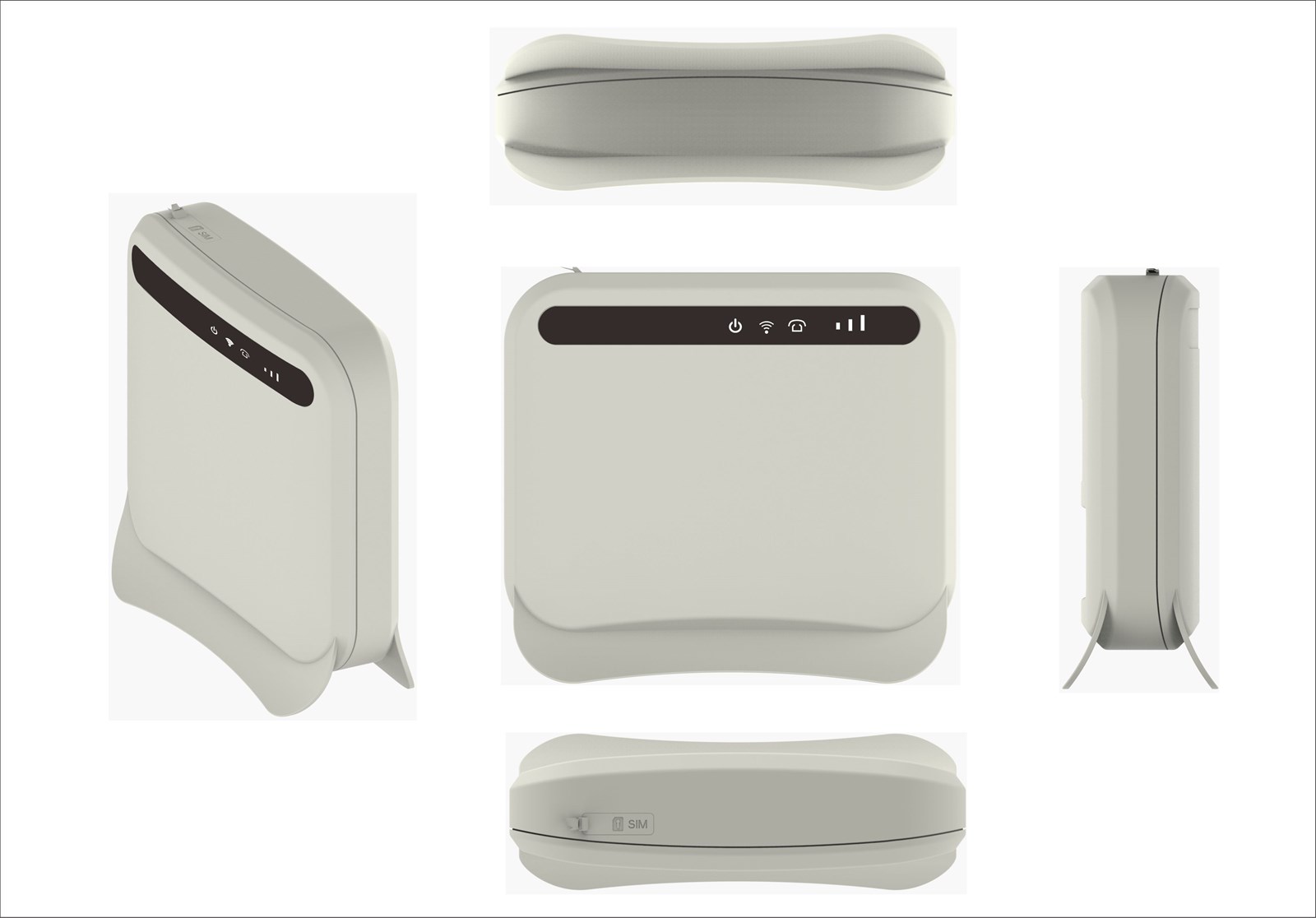

Model Number: | W220 Cat 4 4G/LTE Wireless Router |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
Interface
1 x 10/100Mbps Ethernet LAN
1 x 10/100Mbps Ethernet LAN/WAN (Optional)
1 x RJ11(Optional)
WiFi IEEE 802.11a/b/g/n/AC (a&AC are optional)
1 x SIM Slot
1 x Power Interface
1 x 2400mAh Internal Battery (Optional)
LTE
LTE CAT4
LTE FDD Downlink: 150Mbps Uplink: 50Mbps
LTE TDD Downlink: 130Mbps Uplink: 30Mbps
LTE Bands Combo
Q1: LTE Band 1/3/7/8/20/38/40/41; 3G Band 1/2/5/8
Q2: LTE Band 1/2/4/7/12/38/40/41; 3G Band 1/2/5/8
Q3: LTE Band 1/2/4/7/28/40; 3G Band 1/2/4/8
Q4: LTE Band 3/7/20/42/43
*the bands could be customized according to the operator bands
WiFi
IEEE 802.11a/b/g/n/AC (a&AC are optional)
Security: WEP, WPA, WPA2, WPA-PSK, WPA2-PSK
WiFi Features:WMM, WLAN-LAN Isolation, Multi SSID, AP Isolation
Antenna: Internal, MIMO 2x2
Max Users: 32
Environmental
Dimension: 130 x 132 x 41mm
Net Weight 400 g
Power Supply: 12V/1A
Operation Range: 0° to 40°C, 32°to 113°F
Humidity:10-90% non-condensing
