Working Frequency: | Downlink up to 2.4Gbps Uplink up to 200Mbps |
---|---|
Port Number: | 20 |
Type: | CDMA |
Brand Name: | Wavetel |
Screen: | 1000 |
Model Number: | R4600 Load Balance Router |
Place of Origin: | China (Mainland) |
Quick Details
Specifications

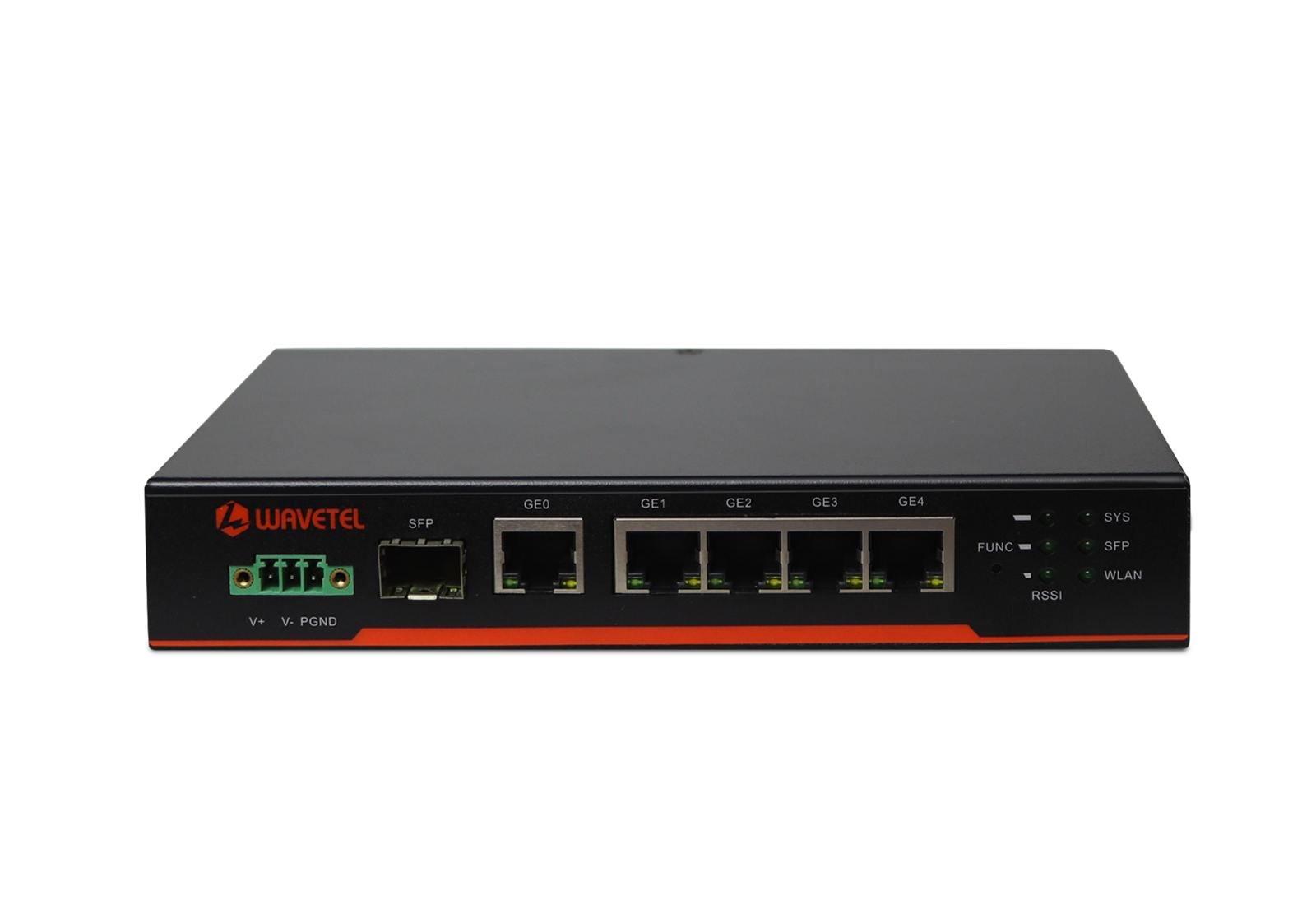

Hardware Specifications:
5* 10/100/1000 Mbps Ethernet ports
1*100/1000 Mbps SFP optical ports
1* FUNC button
1* 3 standard core power interface
Dimension: 179mm*135mm*34mm
Structure design: the high-duty metal case
Power consumption: ≤24W
Input: DC12V/2A
Operating temperature: -40+85°C
Operating humidity: 1095%RH
Store temperature: -40+85°C
Installation: desktop, wall-mounted, slideway
Key features:
Various network protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPoE, DNS etc.
Port setting: Port Mirroring, Flow Statistics, LAN and WAN Port Setting
Multi-WAN Function
WAN Load Balancing: Bandwidth Occupancy, WAN IP Tracing
WAN Bandwidth Percentage Display
LAN IP Statistics
Detecting Online: ICMP Detecting, ICMP Detecting
Static routing and dynamic routing of RIP/OSPF/BGP
PWE3, VPLS, L3 VPN
QoS: packets priority, traffic policing, traffic shaping,rate-limiting
Centralized network management of CLI, WEB and SNMP
NAT function
ACL function
Firewall, packet filtering etc
VPN functions: GRE, L2TP VPN, IPSec VPN, EOIP VPN, MPLS VPN etc.
(VPN optional, GRE over IPSec, IPsec over L2TP.)
802.1Q VLAN and QinQ
Link detective functions such as BFD, DLDP(switch to backup link according to detective result quickly)
Log function
