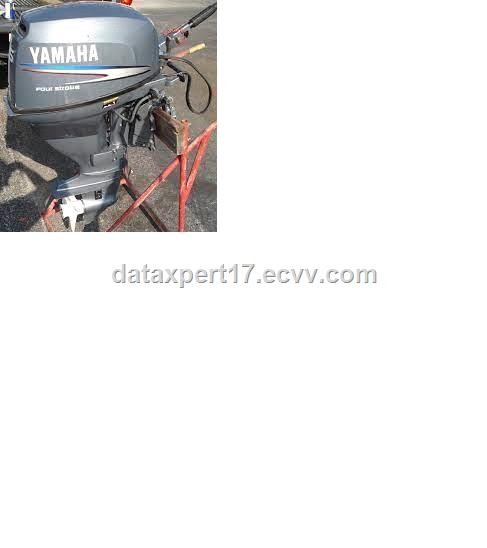

Used Yamaha F25D 4 stroke outboard engine with tiller handle 25hp


Engine type      4-Stroke
Displacement      498 cm3
No. of cylinders/Configuration      2/In-line
Bore x stroke      65.0 mm x 75.0 mm
Prop shaft output at MID range      18.4kW / 5,500 rpm
Full throttle operating range      5,000 - 6,000 rpm
Lubrication system      Wet sump
Carburettors      1 carb.
Ignition / advance system      CDI Micro-Computer
Starter system      Manual
Gear ratio      2.08 (27/13)
Dimensions
Recommended boat transom height      S:381mm
Weight with propeller      F25DMHS: 77.0 kg
Fuel tank capacity      Separate, 25 litres
Oil pan capacity      1.4 litres
Steering      Tiller handle
Throttle and Shift Controls      Twist grip throttle, FNR/side shift
Trim & Tilt Method      Manual (4°,8°,12°)
Lighting Coil / Alternator      12V - 14A
Number of propeller options      11
Remark      the kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft
Propeller      Included
