Product Main

Quick Details

Dimensions (L x W x H) (mm): 2.48 x 2.29in
Engine Position: Outboard
Fuel Type: Gasoline
Condition: Used
Brand Name: Used Yamaha

Specifications

Used Yamaha F20LEHA 20HP 4-Stroke Outboards Motor

 Type: Outboard Motor
 Year: Current
 Model: F20 HP
 Series: Four Stroke Portable
 HP: 20
 Engine Type: 2 Cylinder
 Displacement: 22.1 ci (362 cc)
 Borex Stroke: 63 x 58.1 mm (2.48 x 2.29in)
 Prop Shaft Horsepower: 20 @ 5500 RPM
 Compression Ratio: 9.3
 RPM Range: 5000-6000
 Fuel Induction System: Carbureted SOHC
 Fuel Type: Unleaded gasoline (minimum pump octane 87)
 Exhaust: Thru prop
 Ignition System: CDI
 CARB Rating: 3-Star
 Alternator Outputat WOT: 10A
 Starting System: Electric
 Lubrication: Wet Sump
 Oil Capacity: 1.7 quarts
 Recommended Engine Oil: Yamalube 4M
 Gear Ratio: 2.08
 Control Type: Tiller Handle
 Trolling Throttle Adjustment: N/A
 Cooling: Water, Thermostatic Control
 Weight: 121 lb (56 kg)
 Gear Shift: F-N-R
 Command Link System: No
 Enhanced Ultimate Corrosion Protection System UCP: Standard Feature
 Power Trim and Tilt: No
 Power Tilt: No
 Shaft Length: 20 inch
 Gearcase Rotation: Right Hand (Standard)
 Propeller: Standard 9.25 x 12 aluminum
 Freshwater Flush: Yes

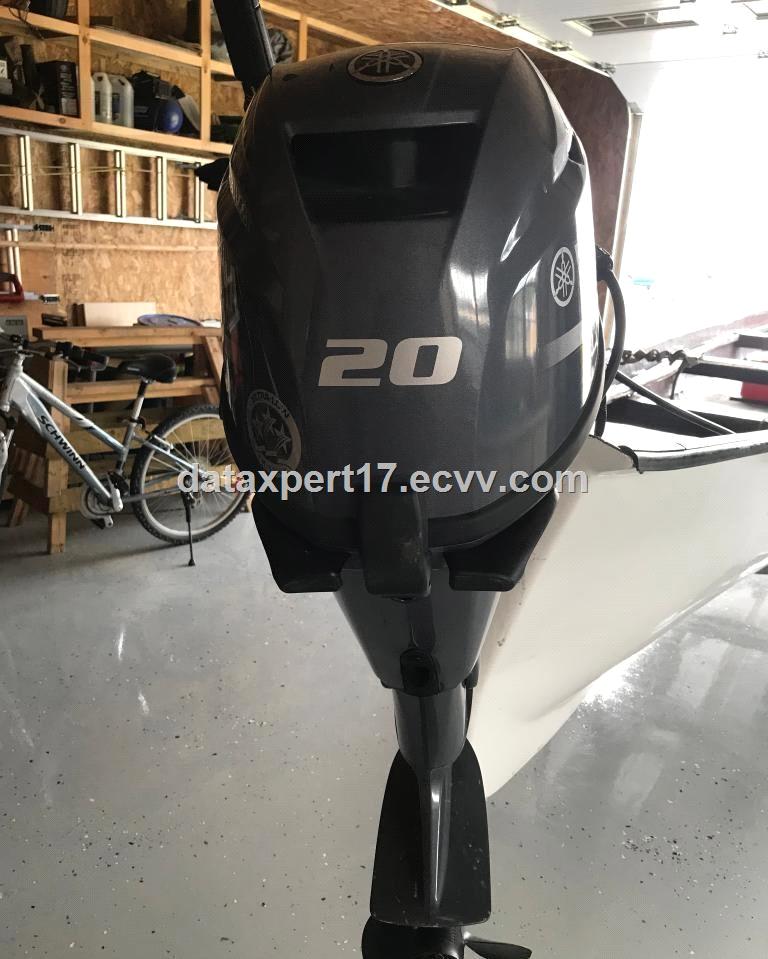

Used Yamaha 20HP 4 Stroke Outboard Motor Engine
