LTE Feature

LTE CAT4

  LTE FDD Downlink: 150Mbps  Uplink: 50Mbps

  LTE TDD Downlink: 130Mbps  Uplink: 30Mbps

LTE Bands Combo

  TDD-LTE: B38/39/40/41

  FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28
  TD-SCDMA: B34/39

  UMTS:B1/B2/B5/B8
  GSM Quad-Band

*the bands could be designed according to the operator bands

Hardware

 Antenna:  4G Main antenna
  4G MIMO Rx Diversity antenna
  WiFi antenna

 LCD  Display: 1.46"  128128 TFT
 LED: Monochromatic
 USB: Micro USB 2.0 High Speed
 SIM/USIM Card slot and Micro-SD Card slot
 Button: Power, WPS, Reset
 Battery Item: Lion battery 2400mAh



WiFi Features
Frequency Band: 2.4GHz
802.11b/g/n   up to 150Mbps
Modes supported: 802.11b/g/n
 User amount: Max to 10
  Security modes:  Open, WEP, WPA-PSK, WPA2-PSK
   WPA-WPA2 Hybrid mode (Mixed Mode),TKIP-CCMP Hybrid mode (Mixed Mode)
   WPS 2.0, Hidden SSID supported

Concurrency (FC quality for LE1.0): AP-STA, mSSID (AP-AP) up to 2 SSID's
   STA-STA communication block/allow between two SSIDs

Other: QoS and PS, WMM, WMM-PS/uAPSD, ERP protection, Coexistence,
  LTE coexistence (static channel selection), Data Switching/Forwarding,
  Switching of packets amongst clients, Support for forwarding data to and from WAN,
  VPN Pass-through



Environment

Normal Operation:    0°C to +45°C
Restricted Operation:-10°C to +55°C
Storage: -20°C to +70°C

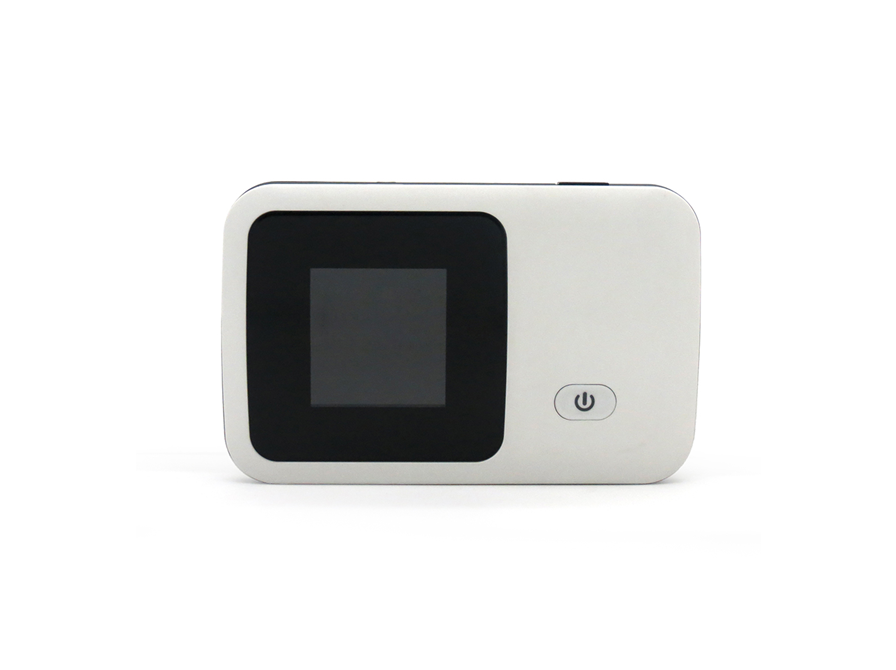

Type: Portable hotspot device with LCD(optional)
Size(mm):100*63.5*14.6
Weight(g):105g
