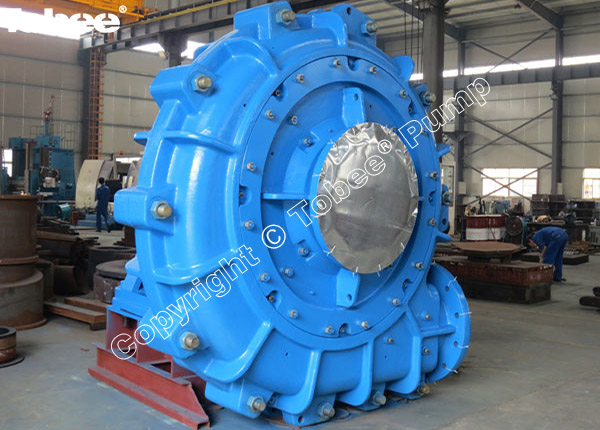

Tobee 8x16TU-AH Slurry Pump is perfect for difficult mill duties with long wear life, It is most complete range of centrifugal slurry pumps for use in mining, industrial, and chemical applications. the 18x16 horizontal slurry pumps were created for ultra heavy duty applications like mill discharge, pipelines, process plant and tailings, and other specialty applications.

Design Features:

√ Available with only one impeller, the heavy duty slurry pump is a horizontal cantilever unit that allows slurry to enter the pumping chamber from only one suction side.

√ Another key feature of this horizontal pump is the double-casing design. Parts in contact with the slurry are replaceable and made of high-chrome for maximum resistance to wear and abrasion. Rubber and polyurethane are selected to make liners and impellers, ensuring excellent serviceability, longevity and durability under all conditions.

√ this series of heavy duty slurry pump offers a variety of impeller options to meet a broad range of operating conditions and customer specific requirements.

√ the rotating shaft is sealed by way of packing seal. the expeller dynamic seal and other mechanical seal arrangements are among options, too.

√ A number of pumps can be connected in series for use.

√ the discharge outlet has 8 positions at 45 degree intervals that can be selected to meet the installation and application requirements

18/16 TU AH Slurry Pump Drive Module Design:



Grease Lubricated Bearing Assembly

the grease-lubricated bearing assembly houses a large-diameter shaft in its unique bearing cartridge designed especially for heavy-duty tasks. Due to its compact design, the bearing takes up little space while providing minimum vibration and deviation. Grease lubrication minimizes the possibility of oil leakage and little extra maintenance effort is needed. the rotor is easily adjustable. Users can install several rotors operating in series.



Horizontal Axially-Split Bearing Assembly

Lubricated by oil, the axially-split bearing assembly features a large-diameter shaft and a short cantilever. It delivers high rigidity, and is unlikely to deform or vibrate even when highly abrasive solids are encountered. the bearing is directly mounted inside the bearing support which can be split into 2 halves along its center line. this mounting method allows for ease of disassembly, inspection and adjustment of bearing. Water

Cooling system effectively cools down the hot bearing, greatly improving its use life.



Cartridge Type Oil-Lubricated Bearing Assembly

Spacious cartridge design allows for the installation of a large-diameter rotating shaft. Built specially to handle heavy-duty tasks, the metric size bearing is lubricated by thin oil. Users can install several bearings operating in series. Compact design and high reliability are 2 major benefits of this bearing for its end users.
