Standard or Nonstandard: | Standard |
---|---|
Shape: | Serrated Gasket |
Material: | Metal |
Brand Name: | J top |
Color: | metal |
Model Number: | JT-G 5000 |
Place of Origin: | China (Mainland) |
service: | OEM provied |
speical type: | add graphtie ptfe cover |
Quick Details
Specifications

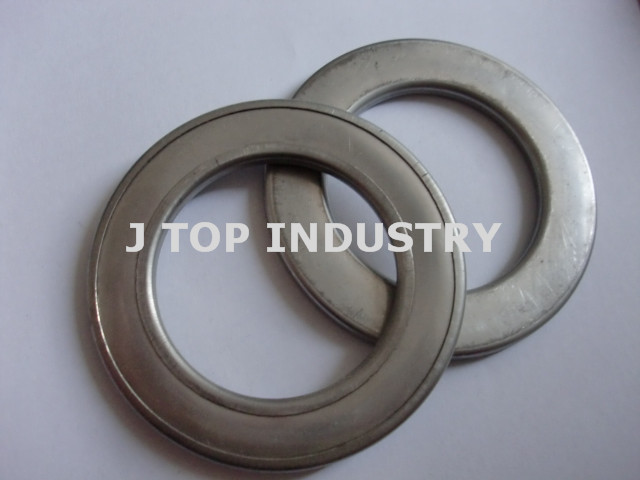

Metal clad gasket,Metal jacket gasket JT-G 5000
the metal coated gasket is filled with flexible graphite, Ceramic fiber, asbestos and non asbestos board, and wrapped with metal sheets of various materials such as stainless steel, tinplate and red copper. It is Especially suitable for high temperature and high pressure sealing parts such As heat exchanger and pressure vessel. It can effectively prevent the Scattering of gasket and the erosion of medium, and improve the pressure resistance At the same time
Product application: it is especially suitable for heat Exchangers, gas pipelines, cast iron flanges, cylinder heads, boilers and other Containers. Generally, during installation, the initial thickness of the gasket Can be pressed with 30% deformation, which can effectively seal the unevenness and small defects of the flange. It can be suitable for various media by Selecting different metals and filling materials.
Optional materials:
Metallic materials |
German standard |
Hardness HB |
Temperature (C°)) |
Density g / cm3 |
Carbon steel, tinplate |
1.1003/1.0038 |
90~120 |
-60~500 |
7.85 |
SS304, SS304L |
1.4301/1.4306 |
130~180 |
-250~550 |
7.9 |
SS316, SS316L |
1.4401/1.4404 |
130~180 |
-250~550 |
7.9 |
Copper |
2.0090 |
50~80 |
-250~400 |
8.9 |
Aluminium |
3.0255 |
20~30 |
-250~300 |
2.73 |
Other special materials such as titanium, nickel and Monel can be required.
Lining material:
Flexible graphite, asbestos board, non asbestos
Board; ceramic fiber, mica board, high-strength board, etc. Please consult our company
for details.
Available sizes:
Outer diameter: 5000mm, thickness: 2 ~ 8mm
Production Standard: national standard, American Standard, Japanese European standard, German standard, etc.
Special forms Can be produced. Please consult:
Metal O-type Coated gasket
Red copper O-ring
