| Type: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE ISO9001 |
| Dimension(L*W*H): | 3000X1200X2500 |
| Weight: | 500kg |
| Model Number: | LCS-ZZ |
| Brand Name: | m&j mACHINERY |
| Place of Origin: | China (Mainland) |
| Power: | 3.3KW |
| Voltage: | 220v/380V cUSTOMIZED |
| Driven Type: | Electric |
| Automatic Grade: | Semi-Automatic |
| Packaging Material: | Wood |
| Packaging Type: | Bags,Pouch,Stand-up Pouch,kraft bagpp woven bag big bag, bulk bag, sack,, |
| Application: | Food,wheat barley sesame seeds, vegetable seed, peanuts, bean, bulgur,, |
| Condition: | New |
| Function: | weighing, filling, vacuum sealing, conveying |
| Packing Range: | 1kg to 5kg, 2kg, 25kg to 50kg, 5kg-50kg,10kg, 10-20kg,25 to 50 kilos |
Quick Details
Specifications

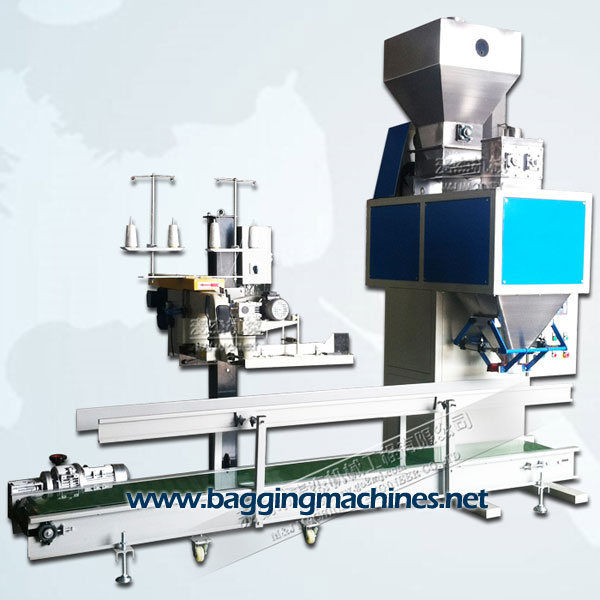

rice packing machine, rice packaging machine 5kg 50kg
Applications:
This unit is a semi-automatic packing system applicable rationing weighing and packing of the powdery material discharged forcefully by the feed gearing. Such as mortar, fertilizer, feed, medicine, chemical materials, etc.The bag must be supplied and clamped by manual.
Flowing Process:
Manual Bag placing→Automatic filling→Automatic weighing→Automatic bag conveyer→Automatic bag sewing
Main Structures:
1. Automatic filling system
2. Automatic weighing balance
3. Automatic belt conveyor
4. Automatic sewing machine
5. Electric control cabinet
To see more, please click our website:
To see more, please click our website:
Technical Parameters:
Model
LCS
LCS-Y
LCS-Y2
Weighing
Range
1-5,
5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions
±0.2%FS
Packing
Capacity
150-200bag/hour
250-300bag/hour
480-600bag/hour
Power
supply
220V/380V,
50HZ, 1P/3P ( Customized)
Power
(KW)
3.2
4
6.6
Dimension
(LxWxH)mm
3000x1050x2800
3000x1050x3400
4000x2200x4570
The
size can be customized according to your site.
Weight
700kg
800kg
1600kg

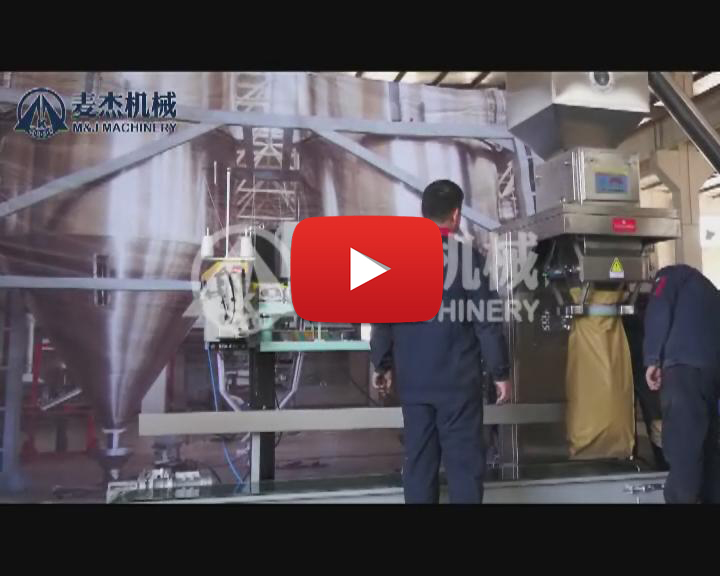

Machine Video
