TECHNICAL SPECIFICATIONS

Machine Demension

Food print-(L X W): 4500X3500mm;     Height(with tube):3500mm;     Weight(Tank Empty):2450kgs

Work Envelope

X-Y cutting range: 3000X1500mm;     Z axis travel:180mm;     Table Size:4350X2260mm

Standard Model Spes.

Dry running speed: X-Y  10000mm/min, Z  5000mm/min;     Repeatability: 0.0254mm;     Cutting accuracy:0.10mm

BENEFITS & FEATURES

1, Machines are highly designed in South America and produced in China with strict production control,

2, All top brands parts in machine, this ensures machine stable working and long life.

3, High accurate & High skilled assembly engineers.

4, Easy operation: NCstudio/ESA/ECS control for choose, programm easy and opertaion simple. Cutting parameters date inside control

5, SERVOS: ALL servos in XYZ, M2,CANOpen and EtherCAT communication

6,Auto Lubrication system for all motion parts

7,Pressure can be adjustable in control system from 0-380mpa any time and any points. Save energy in cutting different materials

8,Integrated control with cutting table: save space, reduce wires problem compared with independently controler; fantastic looking; better operation;easy for trouble  shoot.

9,Accuracte abrasive feeding hopper with step motor controling,this ensures feeding continuous and accurately. Water & dust seals, backwater protection

10,All stainless steel covers for pump, cutting table, all stainless steel for controler,better protection,

11, All water & dust proof for whole machine

RESOURCE

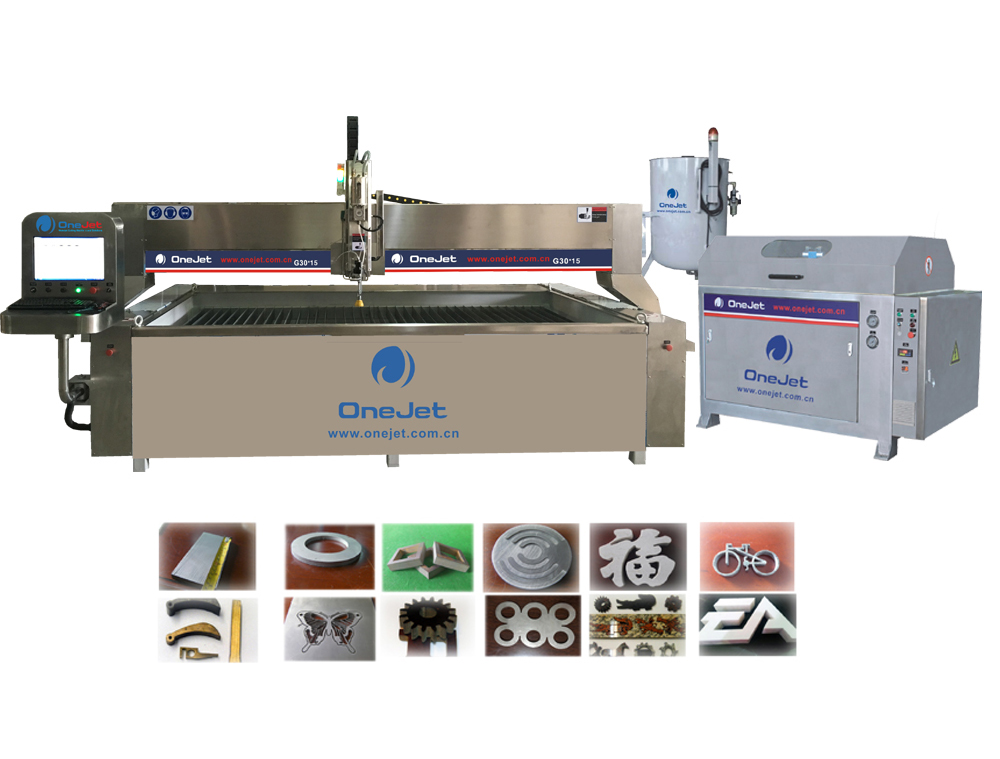

the GANTRY type waterjet machines are the most robust and accurate on the market. Maintain and given precision with dualservo parallel to the axis "Y" and joined our unique system of protection against dust and splashes makes this to be one of the best machine in the market.
