| After-sales Service Provided: | No overseas service provided |
|---|---|
| Condition: | New |
| Brand Name: | BJTOPTECH |
| Origin: | China |

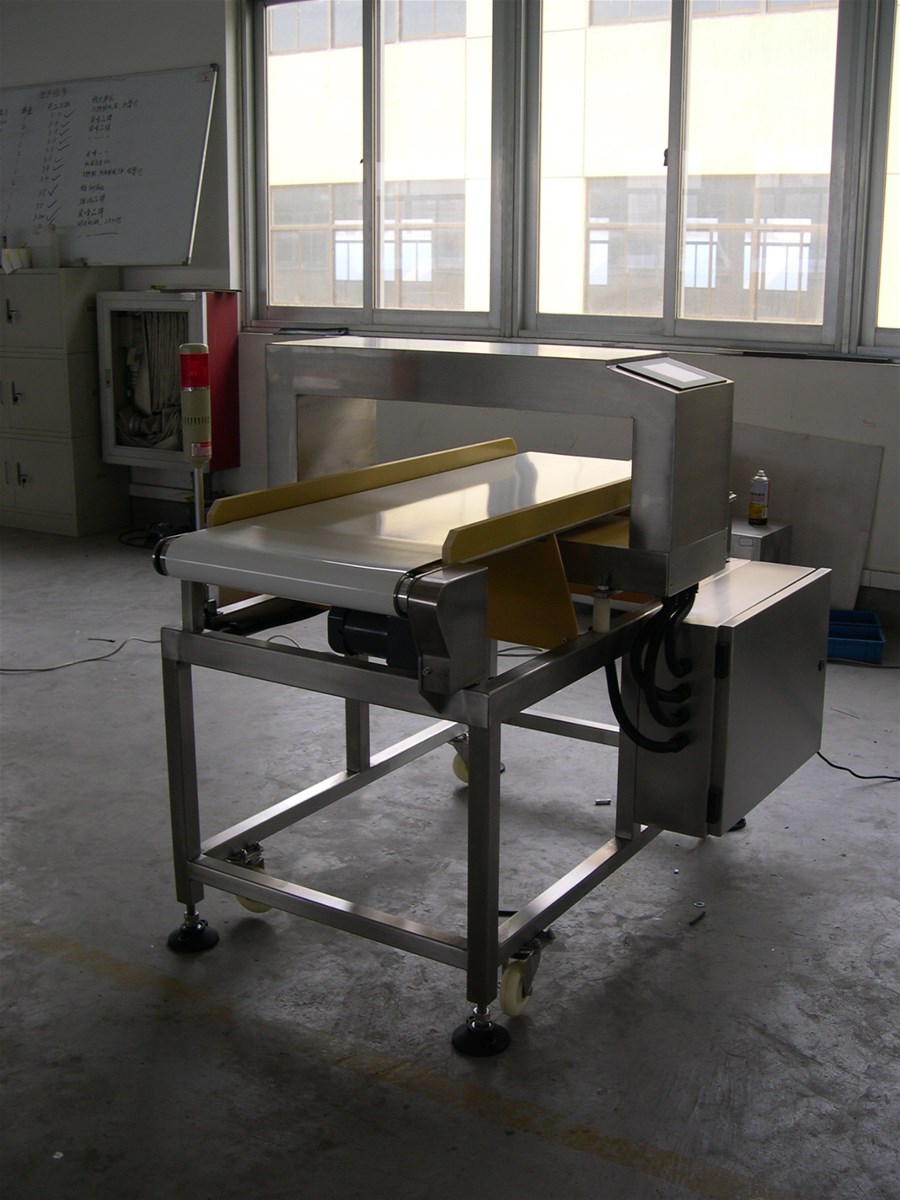

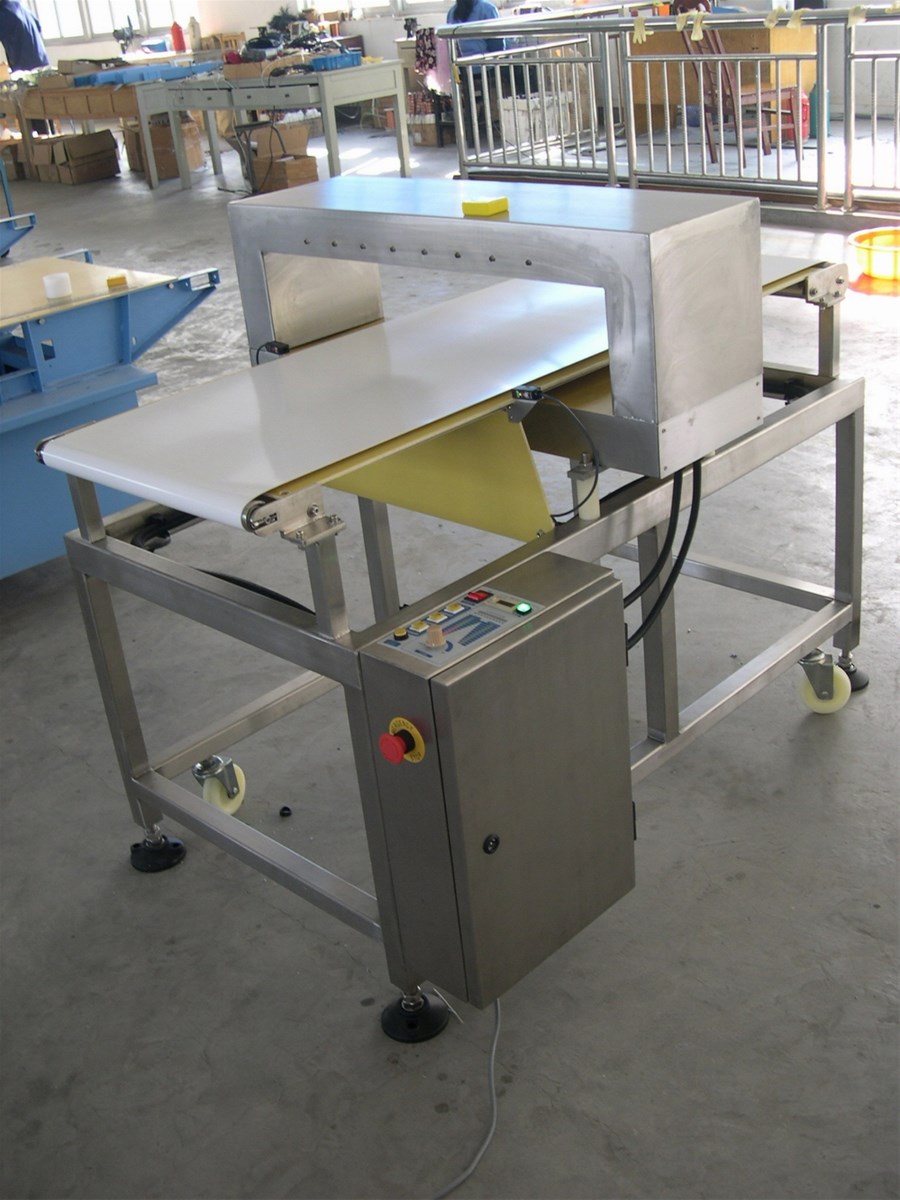

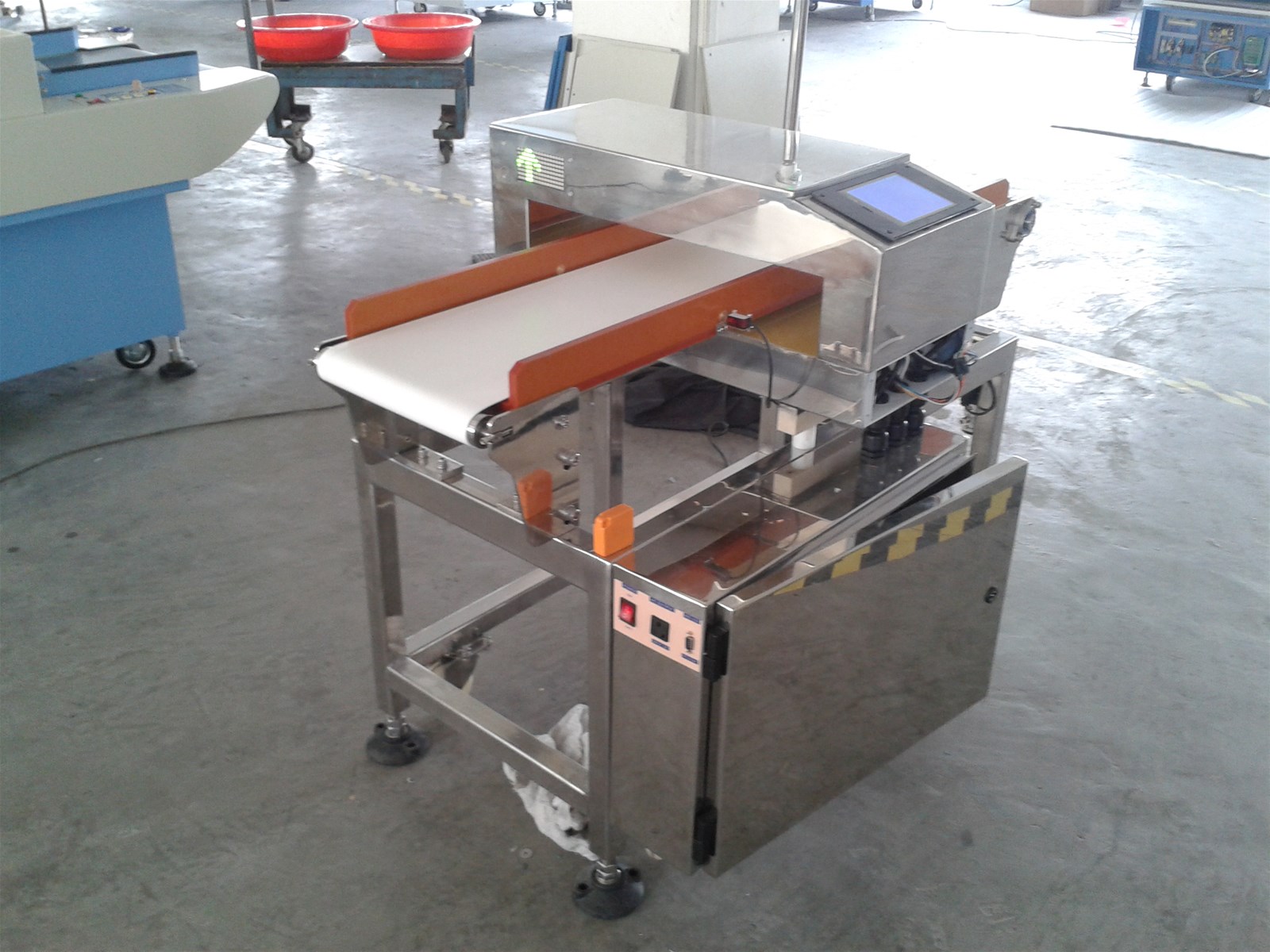

| name: | metal detector for alumin foil packing |
| Model Number: | JD-600 |
| Place of Origin: | China (Mainland) |
| tunnel width: | 400mm |
| tunnel height: | 200mm |
Quick Details
Specifications
[FEATURES]
1.Cycled,9 pairs of scnsor,excellentanti-disturbance performance.
2.Based on LED bar displayed control panel.
3.Hi accuracy detection locating technology,LED indication.
4.Lovel setup indication and real-time scnsitivity display.
5.Optional conveying mode after alarm.
6.Optional automatical restart.
7.Reliability mechanical frame design,Hi stable during detection.
8.Designed for universal AC power supply,switch power supply.
[PURPOSE]
Detecting the metal chips inside the packing bag with aluminum foil layer.
[SPECIFICATIONS]
Model: 630/4010
Detection method: Magnetic induction
Detection sensitivity: Steel or iron at 1.0mm
Detection adjustment: 10step
Detection width: 400mm
Detection hight: 150mm
Alarm method: Buzzer/Lamp/Blet stop or return back
Belt speed: 32m/min(50HZ), 40m/min(60HZ)
Power source: AC200-240V 50-60HZ
Rated output: Appr140W
Dimension: 1500mm(L)*700mm(W)*900mm(H)
Weight: Appr220Kg
