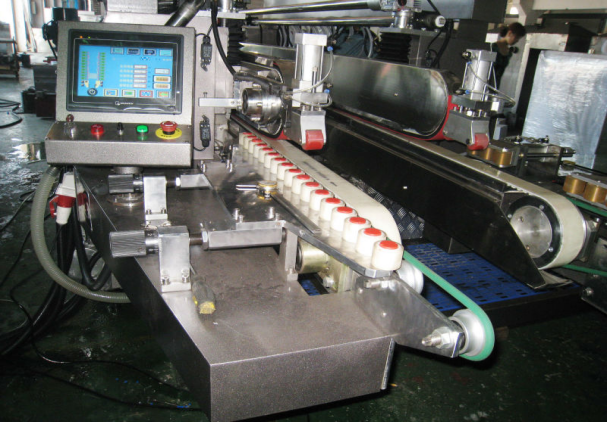

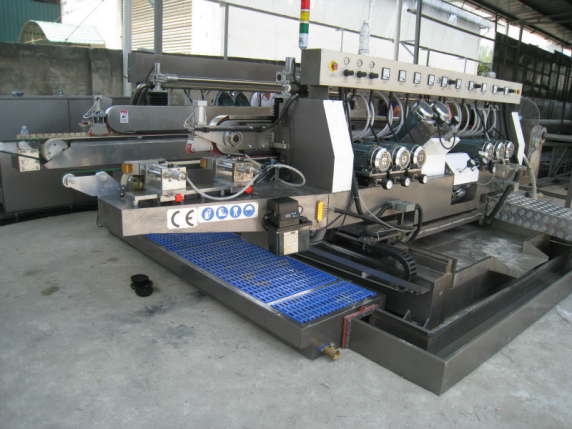

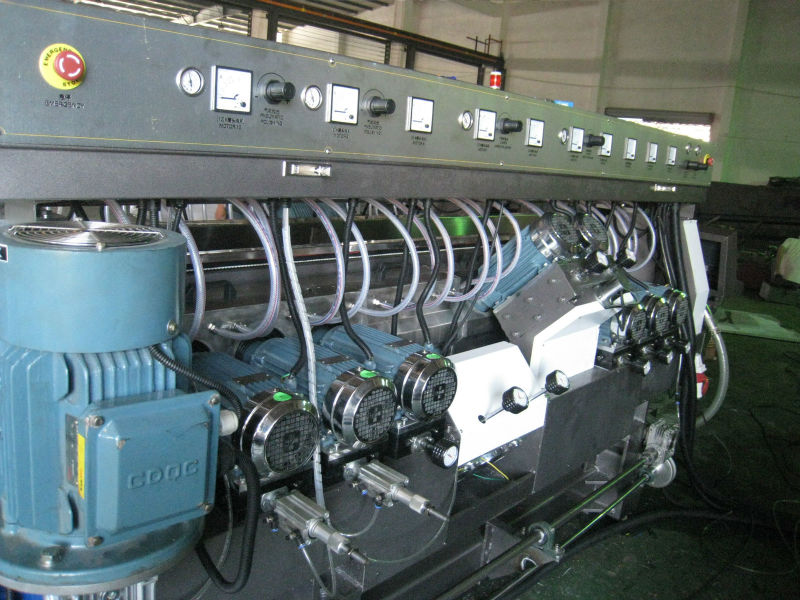

It is suitable for grinding glass with all kinds of specifications, which can do rough grinding, precise grinding and polishing on hemline and up and down edges of flat glass. The adjustment of glass width adopts linear guide rail and ball screw rod, keeping the machine to be steady and high precision. Using PLC controlling system and auto-compensate pneumatic polishing grinder to make it easy operated. The machine meets the needs for processing in large quantity.
Major technical specifications:
|
Speed: |
0.5-6.5m/min |
|
Min. Processed size: |
230x230mm |
|
Max. Processed width: |
2500mm |
|
Glass thickness: |
3-30mm |
|
Max. Hemline grinding: |
5mm |
|
Max. Arris grinding: |
3mm |
|
Total power: |
52KW |
|
Weight: |
7600kg |
|
Overall size: |
4850x4600x1900mm |
|
Working height: |
880mm |
GUARANTEE/ AFTER SALE SERVICE
|
Guarantee Period |
one year |
|
Best Service |
long-term technical support |
|
Other Supports |
English Software & Instruction, Detailed Videos |
