DPP-80 Blister Packaging machine





Features:



1.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. the errors and noises of other gear wheel transmission can be avoided.

2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.

3.It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

4.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

5.the machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.

Technical Specification

Model	DPP-80
Punch frequency	10-33times/min
Production capacity	2400plates/hour
Max. Forming area & Depth	105x70(standard depth ≦15mm), Max. Depth 25mm( as adjusted
Standard Stroke range	30-80mm
Standard plate size	80x70mm  (can be designed as per user's required)
Air pressure	0.4-0.6Mpa
Compressed air required	Air compressor≥0.3m3/min
Total power supply	380V/220V  50Hz  2.8Kw
Main motor	0.75Kw
PVC hard Film	0.15-0.5*110 (mm)
PTP Aluminum film	0.02-0.035*110 (mm)
Dialysis Paper	50-100g*110(mm)
Mould cooling	Tap water or Recycling water
Overall Dimension	1840x590x1100 (mm)(LxWxH)
Weight	Net 450kg      Gross weight: 520kg
Noise index	<75dBA



Work process

1,Forming ( up and down heating)

2,Heating Sealing ( up heating)

3,Embossing

4,Impression

5,Cutter

6,Finished product output

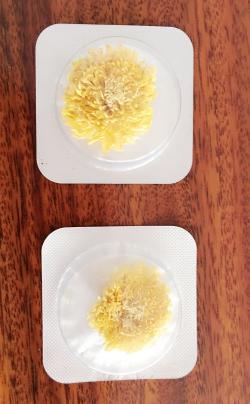

Sample
