| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Production Capacity: | 30000 |
| Type: | Rotary Tablet Press |
| Brand Name: | BSIT |
| Condition: | New |
| Certification: | GMP standard |
| Dimension(L*W*H): | 1230x950x1800 |
| Weight: | 1230*950*1800 |
| Power(W): | 3 |
| Voltage: | 2000kg |
| Max. Tablet Diameter(mm): | 25 |
| Max. Tablet Thickness(mm): | 10-25 |
| Max. Pressure(KN): | 80 |
| Model Number: | ZPW-25 |
| Place of Origin: | China (Mainland) |
| Fuel: | Electric |
| Industry Used: | Other |
| Material: | Metal / Coil |
| Raw material: | effervescent granulate and powder |
| rotary tablet press: | 25 puch |
Quick Details
Specifications
Bright Shien Co-Effervescent tablet routary press equipment, Effervescent tablet marking machine

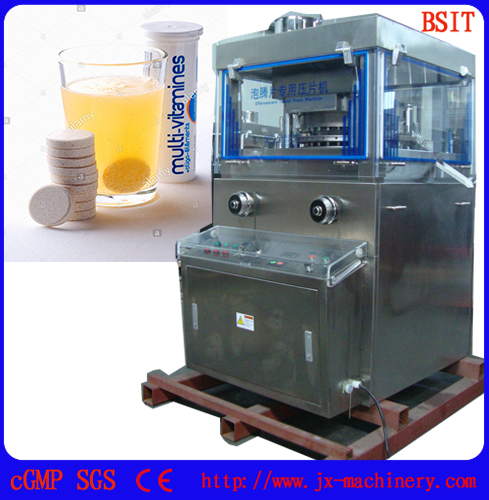

Rotary Effervescent Tablet Press
Tip:Rotary Effervescent Tablet Press Machine , Effervescent tablet press, VC tablet press, Effervescnet Tablet press for VC,Tabelt Press for Effervescent Tabelt, Tablet Press Machine
Information
this rotary tablet press machine is the latest development of our company. It is specialized in repressing effervescent tablet from granular raw materials. It is mainly used to produce tablet in the pharmaceutical/heal-food industry.
Feature
1. the machine uses a special way for solving the problems of demoulding difficultly, such as strong stickiness, poor mobility, easy to damp, high humidity and so on.
2. It is the best choice for suppressing in the high humidity environment.
3. the upper and lower punch rotating to get rid of bonding dust.
Working principles
1.the cover of this tablet press machine is made of stainless steel with close type. the inner tablet surface is also made of stainless steel materials which could keep surface luster and prevent from cross pollution, meets GMP requirement.
2.the compression area is enclosed with transparent organic glass. through the transparent protective cover can see the mechanical operation of the situation clearly, and can open all of them, easy to cleaning and maintenance.
3. Speed is infinite speed, can be adjusted.
4. Mechanical and electrical integration, variable speed operation.
5. Transmitting system is sealed in the oil box under the main machine, which works separately, not pollution each other and easy to send out heat and resist grinding.
6. Machine equipped with suction machine which could absorb the powder of working area.
Technical Parameter
| Model | ZPW23 | ZPW25 |
| Dies(sets) | 23 | 25 |
| Max.dia.of tablet(mm) | 25 | 22 |
| Maximum.Output:(PC/min) | 27000 | 30000 |
| Maximum pressure(kn) | 80 | 80 |
| Max.Depth of fill(mm) | 10-25 | 10-25 |
| Thickness of largest tablet(mm) | 3-11 | 3-11 |
| Motor(kw) | 3 | |
| Overall size(mm) | 1230*950*1800 | |
| Net weight(kg) | 2000 | |
