| Item Type: | Light Strips |
|---|---|
| Light Source: | LED |
| Brand Name: | Rayborn |
| Emitting Color: | White |
| Certification: | CE,LVD,RoHS |
| Working Lifetime(Hour): | 50000 |
| Input Voltage(V): | 100v ,277v |
| Model Number: | RB-STC-300W |
| Place of Origin: | China (Mainland) |
| Lamp Body Material: | Aluminum |
| Working Temperature(): | |
| Color Temperature(CCT): | 2700-6500K |
| CRI (Ra>): | 80 |
| Lamp Luminous Flux(lm): | 390000LM |
| Lamp Power: | 300 |
| Package: | 5meter/reel |
| Color Available: | 4000k 5000k 6000k |
Quick Details
Specifications

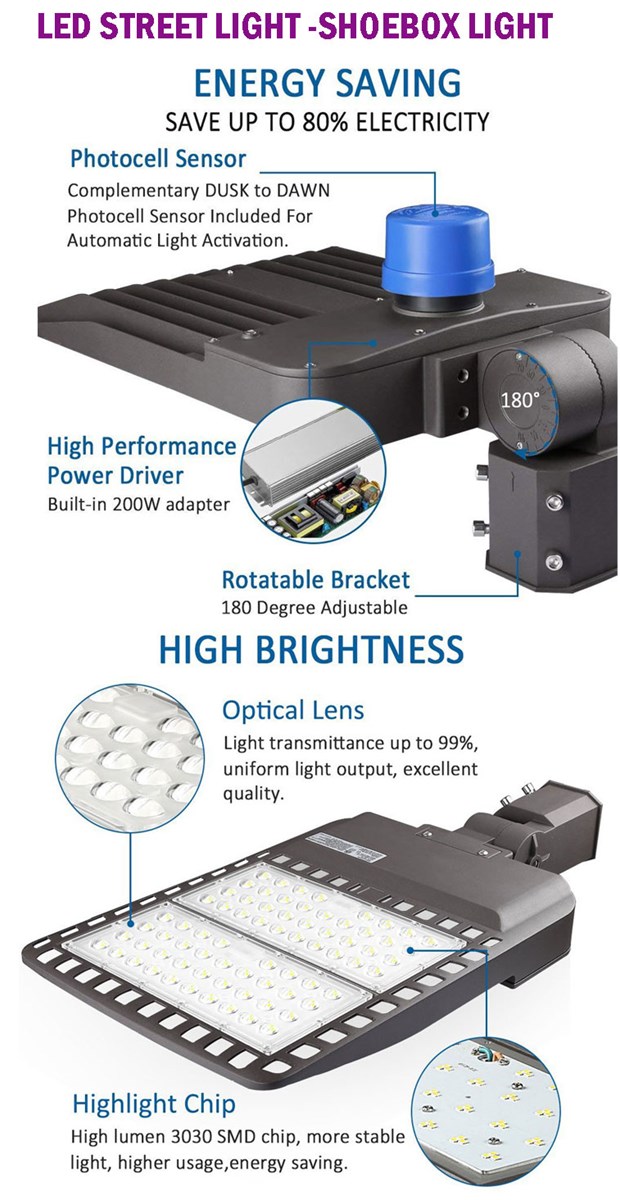

This is our company hot selling product"Led Shoe Box light",below is our product feature.
1) product used 3030SMD chip,Meanwell driver,hollow out heat sink design
2) lighter weight and good heat dissipation
3) 11 kinds of installation adapter /brackets
4) lamp luminous efficiency reaches 120lm
5) lighting distribution curve: 85x135mm/ 90x140/ 100x140
6) can be with photocell sensor and motion sensor option
| Item No.: | RB-PAL-300W | ||
| Input Voltage: | AC 100~277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Driver: | Meanwell Driver | ||
| Led Chip: | 3030SMD Chip | ||
| Power Factor: | 0.98 | ||
| Power Efficiency: | 93% | ||
| LED Power | 300W | ||
| LED QTY: | 300pcs | ||
| LED Working Voltage: | DC 40~48V | ||
| System Consumption: | 305W | ||
| LED Luminous Flux | Warm White | 30800LM | |
| Pure White | 32000LM | ||
| Cool White | 32000LM | ||
| Viewing Angle: | 140/90 degree | ||
| Center Illuminance | Height 7M | 259LUX | |
| Height 10M | 127LUX | ||
| Height 12M | 88LUX | ||
| Illuminance Area | Height 7M | Dia.597CM points visible | |
| Height 10M | Dia.853CM points visible | ||
| Height 12M | Dia.1024CM points visible | ||
| Illuminance Uniformity: | 0.6 | ||
| Color Temperature | Warm White | 3000-3500K | |
| Pure White | 4000-5300K | ||
| Cool White | 5300-6000K | ||
| Color Rendering Index | Ra80 | ||
| Light Distribution: | LED points visible | ||
| Light Design: | LED The secondary light distribution lens | ||
| LED Junction Temperature: | 115 | ||
| Working Temperature: | 35~55 | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mthree line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
