| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 18 months |
| Weight: | 3500kgs |
| Place of Origin: | China (Mainland) |
| Machine Type: | Insulating Glass Production Line |
| Condition: | New |
| double glazing glass machine: | double glass machine |
Quick Details
Specifications

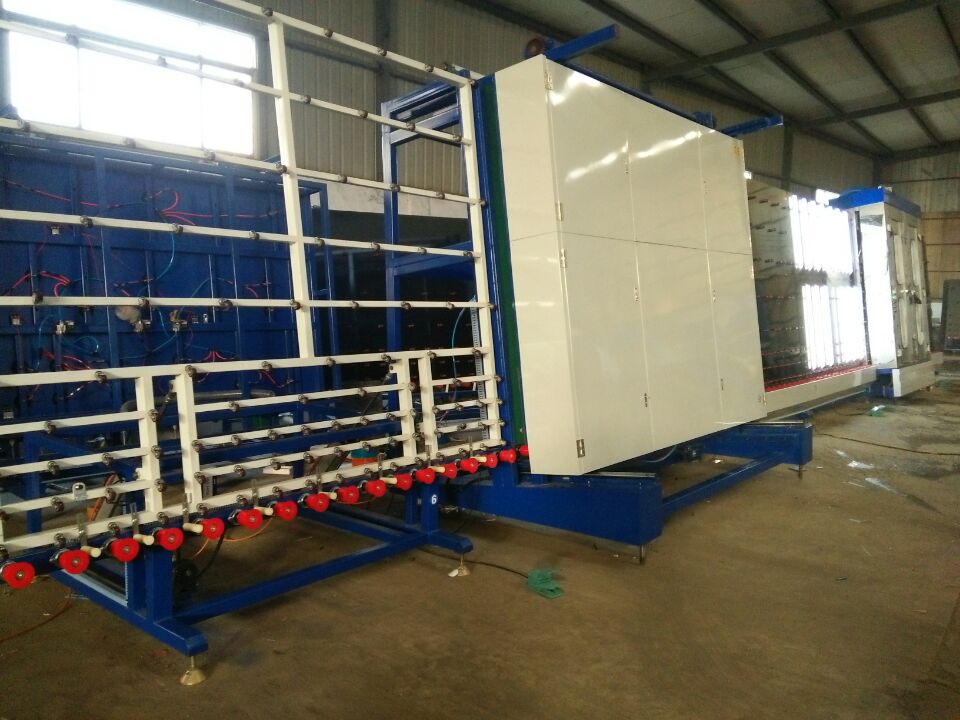

LBZ2500Vertical Insulating Glass Automatic Flat Press Production Line/Double Glazing Glass Machine
LBZ2500 Vertical Automatic Flat Press Insulating Glass Production Line
1. Features:
A. the whole line is composed of feeding part, glass washing and drying part, lamp inspection part,
glass conveyor part, aluminum frame locating part, flat (roller) press part, tilting part.
B. Low-E Insulating Glass Production Line, soft low-e brush installed, it can process low-e glass.
C. It can make triple insulating glass, that is three layers insulating glass and shaped insulating glass.
D. Washing and drying part with full stainless steel.
E. Heating device, auto heat the water in cold weather.
F. Man-machine interface, easy to operate
2. Technical Data
Model |
Max.Glass Size |
Min.Glass Size |
Glass Thickness |
Power |
Weight |
Dimension |
LBZ2500 |
2500*3000mm |
300*500mm |
3-50mm |
25Kw |
8000Kg |
22000*2000*3380mm |
LBZ2200 |
2200*3000mm |
300*500mm |
3-50mm |
25Kw |
6500Kg |
20000*2000*3000mm |
LBZ2000 |
2000*2500mm |
300*500mm |
3-50mm |
20Kw |
6000Kg |
14000*1680*2800mm |
LBZ1800 |
1800*2500mm |
300*500mm |
3-50mm |
20Kw |
5000Kg |
14000*1680*2600mm |
LBZ1800G |
1800*2500mm |
300*500mm |
3-50mm |
12.8Kw |
4800Kg |
13500*1680*2600mm |
LBZ1600 |
1600*2000mm |
300*500mm |
3-25mm |
13.59Kw |
4000Kg |
12000*1250*2600mm |
above is the normallyed used size we produce, also we can make specially according to you requirements.
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
