| Properties: | Diagnosis & Injection |
|---|---|
| Brand Name: | darppon |
| Application: | diagnosing of pregnancy |
| Color: | white |
| Name: | Vet pregnancy ultrasound scanner |
| Model Number: | KX5200V |
| Place of Origin: | China (Mainland) |
| Wrist design: | truely innovative |
| Smart and light: | 5.7" high resolution color LCD , 1.1kg weight |
| Display mode: | B,2B,4B ,B/M,M, total 5 kinds |
| Gain range: | 0~127dB |
Quick Details
Specifications
Vet pregnancy ultrasound scanner with Palm-size Full-digitalforpig,sheep,goat,cattle,horse
Application:
Designed widely for diagnosing of pregnancy, fertility and disease on Bovine, Equine, Ovine, Canine, Feline, Goat, Swine, Llama and other animals.
Features:
- Wrist design: truely innovative.
- Smart and light : 5.7" high resolution color LCD , 1.1kg weight.
- No fan: Avoid cross-infection for virus.
- 2 pcs Internal li-battery: work for 5 hours.
- USB port: directly store image to U disk.
- Gridding calculate: quick measure by eye.
- Accessory: a lot of optional parts for customer different use habit.
Technical Specification:
| Monitor | 5.7" High resolution color LCD, high brightness, high contrast,wide visual, suitable for outdoor use. |
| Body mark | 1. General use 2.Bovine 3.Canine 4.Equine 5.Feline 6. Cardiology, 7.Swine---7 kinds, total 27 pcs of body marks with probe position. |
| Display mode | B,2B,4B,B/M,M, total 5 kinds. |
| Pseudo-color | 8 kinds (incl. B/W). |
| Gain range | 0~127dB |
| Dynamic range | 27~90dB |
| Gray | 256 |
| Language | Chinese/English switchable |
| Probe socket | Single probe socket, automatically identify the probe,support several optional probes |
| USB port | Support one-key storage image to USB and color laser printer directly print various image and reports. |
Measurement and analysis:
- General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc.
- Cardiac measurement: depth, slope, heart rate, time.
- OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
- Gridding calculate, let customer simply calculate the measure result by eye, save time, convenient.
- Other measurement: Automatically calculate the Back fat and Lean percentage of swine.
- OB report function
- Automatically save the last parameters, customer can directly use it on next time.

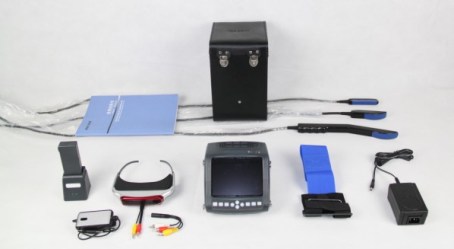

Standard configuration:
| No. | Standard configuration |
| 1 | Main unit: 1 PC |
| 2 | 6.5MHz linear rectal probe: 1 PC |
| 3 | Power adapter: 1 PC |
| 4 | Internal battery: 2 pcs |
| 5 | the leather Case: 1 unit |
| 6 | Base Charger, belt, bracket, shutter release: 1 PC for each. |
Optional configuration:
| No | Optional configuration |
| 1 | 4.0Mhz multi-frequency convex rectal Probe |
| 2 | 6.5MHz multi-frequency micro-convex probe |
| 3 | 3.5MHz multi-frequency convex probe |
| 4 | 7.5MHz multi-frequency linear probe |
| 5 | Thermal printer |
| 6 | Battery(2400mAH) |
| 7 | Black suitcase |
