| Type: | Graphic |
|---|---|
| Model Number: | LM1095R |
| Brand Name: | TOPWAY |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

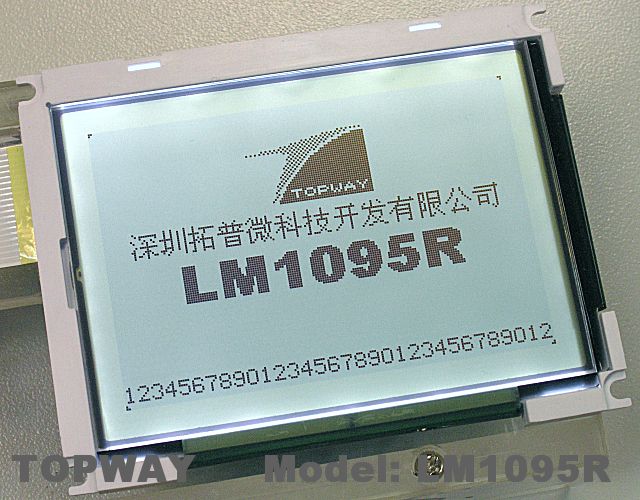

TOPWAY Technology LM1095R Full Graphics LCD Module
* 192x128 display form
* High contrast FSTN positive screen
* Super light white LED back light, low power design 4 level grayscale
* Built-in Chinese char ROM and user-defined char ROM
* Operating-Temperature -20 ~70 degree Storage-Temperature -30~80 degree, high reliability
* Slim design
* Outline dimension: 92.7x72.0x8.7max(t)
Please visit our website to get more information
* 192x128 display form
* High contrast FSTN positive screen
* Super light white LED back light, low power design 4 level grayscale
* Built-in Chinese char ROM and user-defined char ROM
* Operating-Temperature -20 ~70 degree Storage-Temperature -30~80 degree, high reliability
* Slim design
* Outline dimension: 92.7x72.0x8.7max(t)
Please visit our website to get more information
| Description | |
| Product Name | Graphic 12896 LCD Module |
| Model No. | LM1095R |
| Dot Format | 128 x 96 |
| Outline Dimension(mm) | 93.4 x 72.7 |
| Assem. Size(mm) | 89.5 x 66.0 |
| Viewing Area(mm) | 77.5 x 54.0 |
| Pixel Size( mm) | 0.35 x 0.35 |
| Viewing Angle | 6 O' clock |

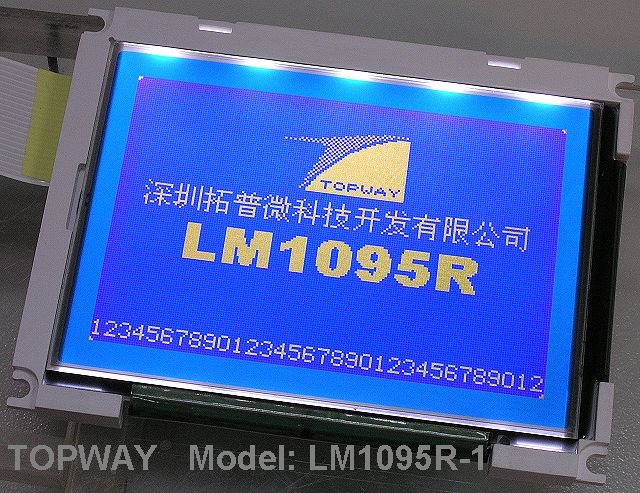

| LCD Type | FSTN & STN blue |
| Backlight | White |
| Driver IC | SID13700 / RA8803 / NC |
| Power supply | 5V or 3V |
| Interface | Parallel |
| Touch panel | Optional |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
