1.16x2 Characters
2.Parallel interface
3.3.3v & 5v power supply optional
4.STN-YG, STN-Gray, STN-blue, FSTN-Negative with YG & White  LED backlight optional

Item	Description

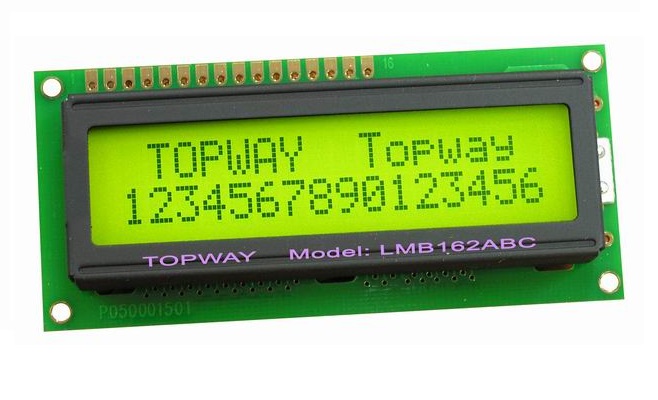

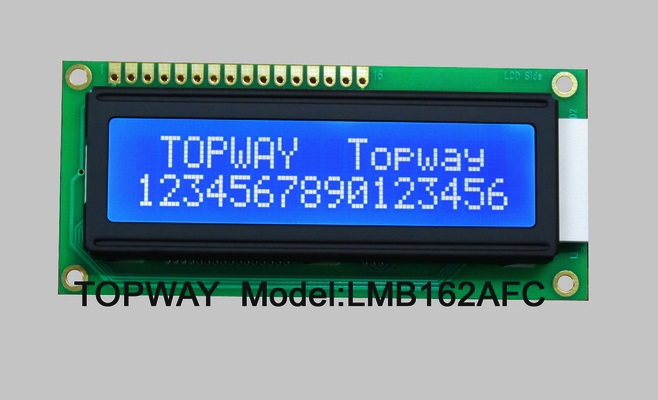

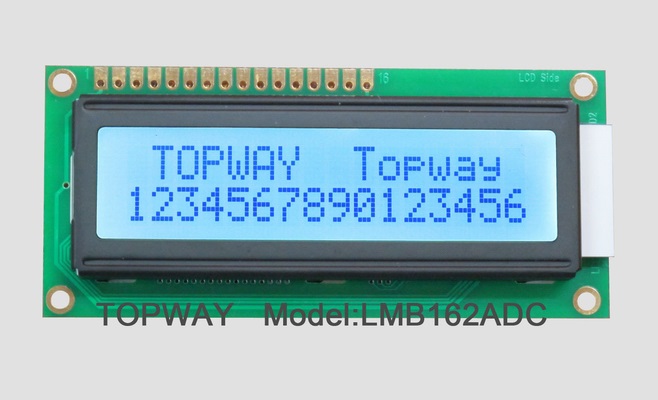

Product Name	162 COB Character LCM
Model No.	LMB162A
Dot Format	16 x 2
Outline Dimension(mm)	80.0 x 36.0 x 14.3MAX
Assem. Size(mm)	75.0 x 31.0
Viewing Area(mm)	64.6 x 16.0
Character Size( mm)	2.95 x 5.55
Viewing Angle	6 O' clock
LCD Type	STN-YG, STN-Gray, STN-blue, FSTN-Neg.
Backlight	White or Y/G LED backlight
Driver IC	ST7066U
Power supply	5V or 3V
Interface	Parallel
Operating Temp	-20o C~70o C
Storage Temp	-30o C~80o C
