| Type: | Graphic |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | Parallel or Serial |
| Resolution: | 128x64 |
| application: | LCM |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
1.128x64 dots
2. Parallel & Serial interface optional
3. COG type, cost effective, 3.3v power supply
4. Viewable size compatible with standard 128x64 graphic LCD module
5. Ultra high contrast, White LED backlight
6. FSTN-Positive, FSTN-Negative & STN-blue display result as option
7. Low power consumption, widely used on hand-held devices
2. Parallel & Serial interface optional
3. COG type, cost effective, 3.3v power supply
4. Viewable size compatible with standard 128x64 graphic LCD module
5. Ultra high contrast, White LED backlight
6. FSTN-Positive, FSTN-Negative & STN-blue display result as option
7. Low power consumption, widely used on hand-held devices
| Description | |

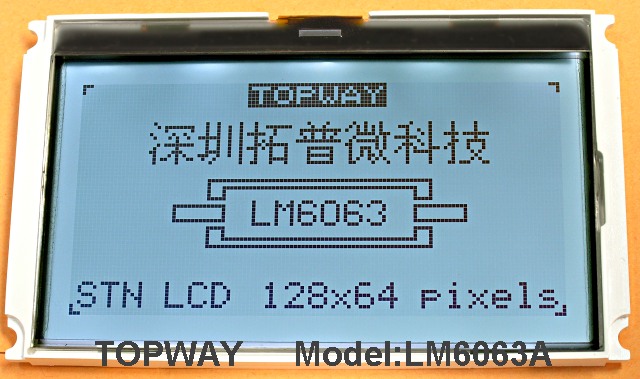

| Product Name | COG display 128 x 64(LM6063A) |
| Model No. | LM6063A |
| DotFormat | 128 x 64 |
| Outline Dimension(mm) | 84.0 x 50.0 x 8.7MAX |
| Viewing Area(mm) | 72.0 x 39.5 |
| DotSize( mm) | 0.49 x 0.49 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN-Blue, FSTN-Pos., or FSTN-Neg., |
| Backlight | White LED backlight |
| Driver IC | ST7565 |
| Power supply | 3.3V |
| Interface | Parallel or Serial |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
