| Type: | Graphic |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | Parallel or Serial |
| Resolution: | 192x64 |
| application: | LCM |
| Model Number: | LM6072 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
1.192x64 dots, support parallel and serial interface
2. 3.3V power supply, low consumption
3. COG type, cost effective
4. STN-YG, STN-blue with YG or white LED backlight
| Item | Description |

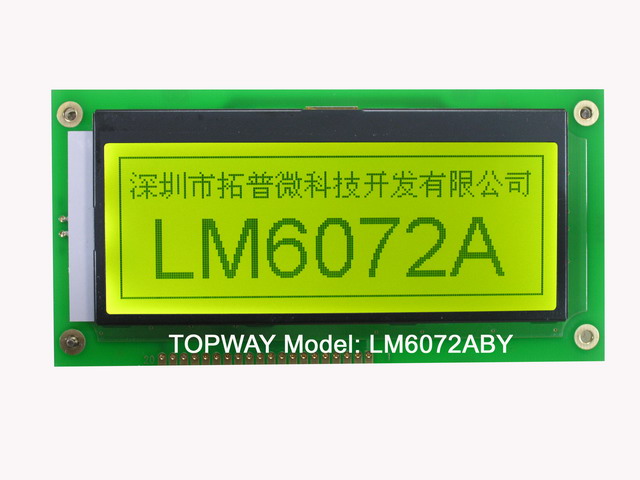

| Product Name | COG 19264 LCD Module(LM6072A) |
| Model No. | LM6072A |
| DotFormat | 192 x 64 |
| Outline Dimension(mm) | 130.0 x 65.0 |
| Assem. Size(mm) | 121.0 x 53.0 |
| Viewing Area(mm) | 104.0 x 39.0 |
| Pixel Size( mm) | 0.46 x 0.46 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN YG & STN blue |
| Backlight | White or Y/G LED backlight |
| Driver IC | IST3020 |
| Power supply | 3.3V |
| Interface | Parallel or serial |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
