| Usage: | Universal Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | TN1058 |
| Brand Name: | TONNY |
| Place of Origin: | China (Mainland) |
| Best price and service: | 15015204254@163.com |
| WEB: | www.tomy.org.cn |
Quick Details
Specifications

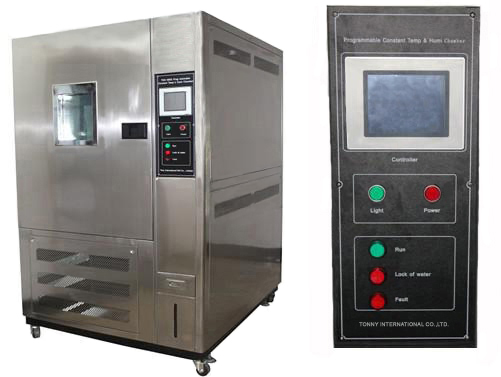

TN1058 Programmable Constant Temperature and Humidity Chamber
INTRODUCTION
It is mainly used for aerospace, aviation, petroleum, chemical industry, military, automotive, motorcycle), shipbuilding,
electronics, communications and other scientific research and production units to provide the environment temperature
and humidity change.
ORDERING INFORMATION
|
Model |
TN1058 -80L |
TN1058 -150L |
TN1058 -225L |
TN1058 -408L |
TN1058 -800L |
TN1058 -1000L |
|
|
Effective size(WxDxH),cm |
40x40x50 |
50x50x60 |
60x50x75 |
80x60x85 |
100x80x100 |
100x100x100 |
|
|
Dimension(WxDxH),cm |
100x870x170 |
105x97x175 |
115x97x190 |
135x115x195 |
145x130x210 |
147x140x210 |
|
|
Power |
3500 W |
3500 W |
4000 W |
6000 W |
10 KW |
13 KW |
|
|
Power supply |
AC220V 50Hz |
AC220V 50Hz |
AC220V 50Hz |
AC380V 50Hz |
AC380V 50Hz |
AC380V 50Hz |
|
|
Temp. range |
Low temp:(A:+25 ℃; B:0 ℃;C:-20 ℃; D:-40 ℃;E:-60 ℃;F:-70 ℃); High temp:150 ℃; for 180 ℃ ,customized |
||||||
|
Humidity range |
20-98% R.H; for 10%-98% RH ,customized |
||||||
|
Heating efficiency |
＞3 ℃/min |
||||||
|
Cooling efficiency |
＞1 ℃/min,max 5 ℃/min |
||||||
|
Temp. accuracy |
0.1 ℃ |
||||||
|
Temp. fluctuation |
±0.5 ℃ |
||||||
|
Temp. uniformity |
±2 ℃ |
||||||
|
Humidity fluctuation |
±3﹪R.H |
||||||
|
Humidity uniformity |
±2﹪R.H |
||||||
|
Structure and components |
Observation window |
The conductive film toughened glass, lighting equipment within 13 w |
|||||
|
Fan |
Centrifugal fan |
||||||
|
Heater |
U fin chip 304 # seamless steel high-speed heating electric heaters. |
||||||
|
The refrigeration compressor |
The French based compressor |
||||||
|
Refrigeration fittings |
Evaporator, fan |
||||||
|
Cooling way |
Air-cooled |
||||||
|

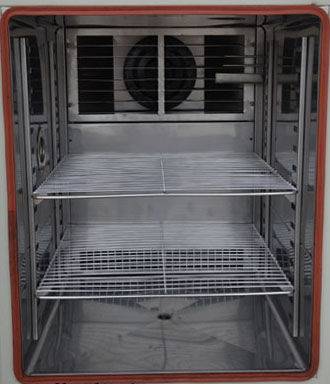

Sample frame |
Two floors |
||||||
|
Electrical accessories |
Famous brand electrical components |
||||||
|
Lead hole |
The left,Φ50 mm |
||||||
|
Wiring way |
in accordance with the international electrotechnical standard |
||||||
|
Security device |
Protection switch: overtemperature protection switch, ceramic fuse, water shortage protection switch, electromagnetism protection switch, error alarm system, alarm buzzer. |
||||||
|
Standards |
GB2423.1 test A low temperature test methods
GB2423. 3 test Ca steady temperature and humidity test methods ISO,ASTM,EN,etc |
||||||
