TN11328  Electronic Fabric Strength Tester,Tensile Tester---Single Column

INTRODUCTION

for a variety of textile stretch, tear, elongation set, constant load, elastic, seam slippage, peeling and other mechanical properties.

TEST PRINCIPLE

Constant - rate - of - extension (CRE) principle,in other words,one clamp which is stationary and another clamp which moves which a constant speed throughout the test,the entire testing system being virtually free from defletion.Do different test standards with the help of different clamps.

FEATURES and BENEFITS

1.High-force loading conditions, the rigid frame configuration, precision ball screwpreload.

2.Gauge automatic positioning feature.

Servo motor drives, high-resolution digital closed-loop controller.

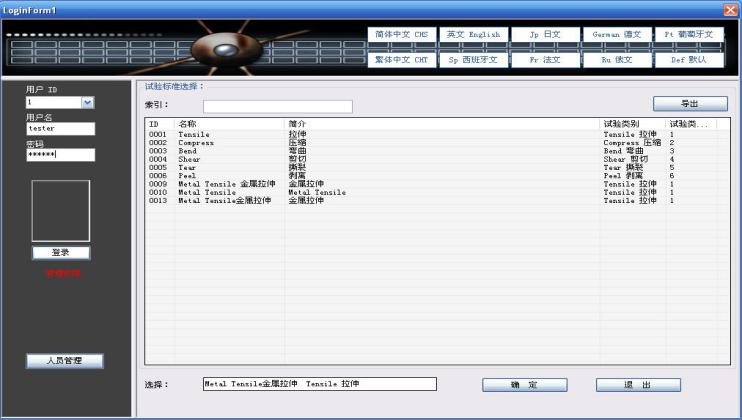

4.Test modular design, open data management.

TECHNICAL PARAMETERS

1.Ordering Information:

2.Force measurement range : 200 N - 5000 N,usually 2000 N or 3000 N

3.Minimum scale value : 0.1 N      Force measurement accuracy : ≤ ± 0.2% F · S

4.Tensile speed: 0.1-1000 mm / min digital speed, error ≤ ± 2%

5.Effective travel : 0-600 mm or specified

6.Elongation resolution : 0.01 mm

7.Sample holder : manual clamping or pneumatic clamping

8.Power supply : AC 220V ± 10%  50 Hz 600 W

9.Dimension : 500 × 630 × 1200 mm (L × W × H)

10.Weight : 80 kg (standard)

STANDARDS

Material testing machine testing standards used in the textile sample
GB/T 3923.1/2  GB/T 13772.1/2/3  FZ/T 20019  FZ/T 70006  FZ/T 01085  FZ/T 01030  FZ/T 70007  ISO  ASTM  JIS  BS  DIN etc.
