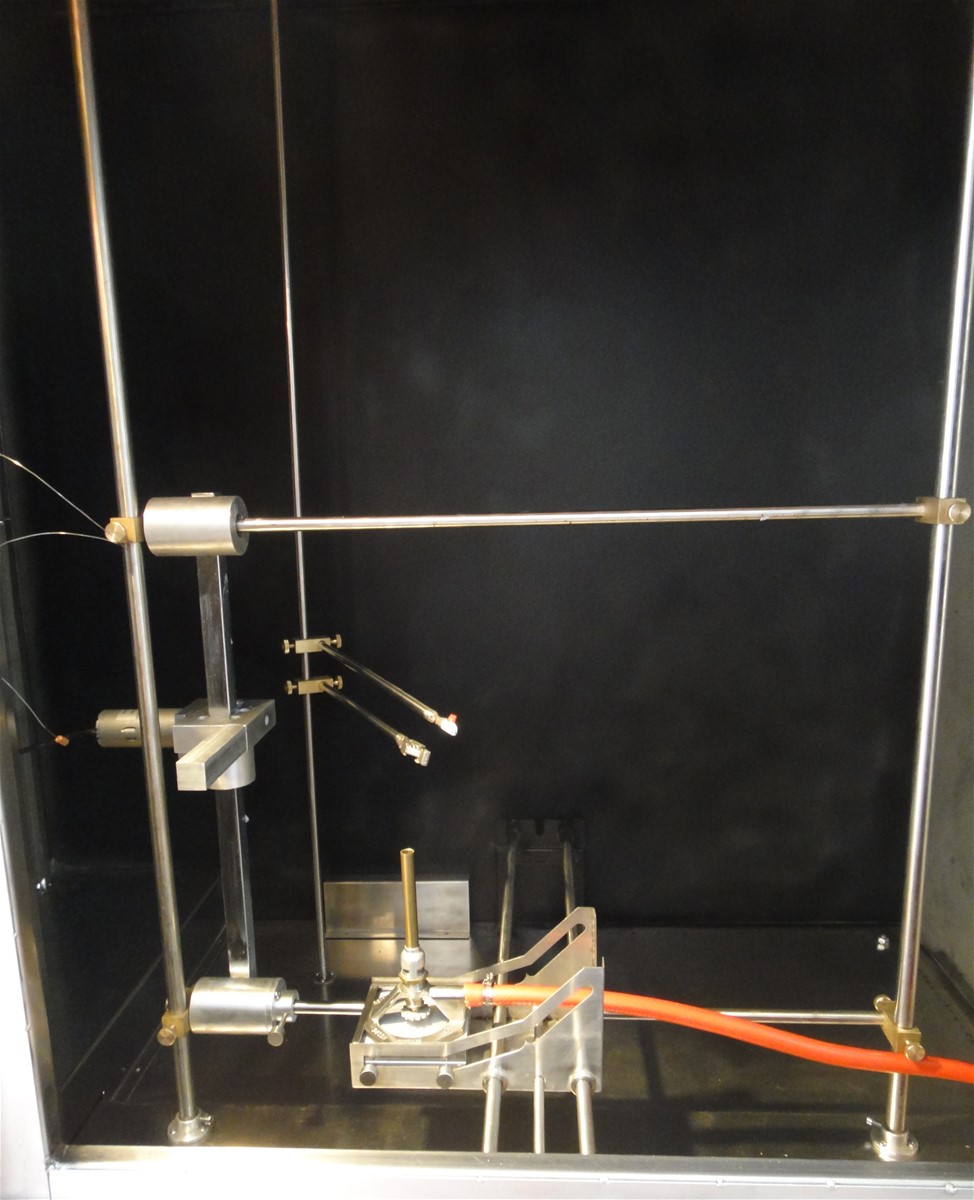

TN1938  Horizontal and Vertical Flammability Tester



INTRODUCTION

1.Use the bunsen burner with specified size and specific gas source (methane and propane),to burn samples(90 °and 0 °) with a certain height and a certain angle, then observe whether it is burned,and use The burning time and burning length to evaluate fire risk.

2.this tester is used for the flammability testing of plastic materials such as V-0 V-1 V-2, HB, 5V, HF-1 HF-2, HBF material.

3.It is also suitable for Lighting equipment, low-voltage electrical appliances, household appliances, machine tool electrical appliances, motor, electric tools, electronic instruments, electrical instrumentation, information technology equipment, electrical business equipment, electrical fittings and accessories such as electrical and electronic products and its component parts,Insulation materials, engineering plastic, or other solid combustible materials.

TECHNICAL PARAMETERS

1.Burner : single gas bunsen burner ( inside diameter Φ9.5 ±0.3 mm) and mixed gas bunsen burner (diameter Φ 12 ±0.3 mm)

2.Test angle : 0 °, 20 °, 45 ° manual switch

3.Flame height : 20 mm ± 2 mm ～180 mm ±10 mm,adjustable

4.Burning time : 0-999.9 s ± 0.1 s,adjustable

5.Residual flame time : 0-999.9 s ± 0.1 s, automatic recording, pause manually

6.More than burning time : 0-999.9 s ±0.1 s, automatic recording, pause manually

7.Combustion gas : methane gas(98%) or propane gas( 98%),can also be replaced by liquefied petroleum gas (LPG)

8.Flow pressure : with double flow meter and pressure gauge (gas and air)

9.Temp. test range : 0 -1000 ℃

10.Flame temp. Requirement : heating from 100 ℃ to ±5 ℃ up to 700 ℃ ±3 ℃ in 44 ± 2 seconds and 54 seconds ± 2 seconds.

11.Temp. measuring thermocouple : two import armoured thermocouple type (K) (Φ 0.5 mm) ,double temp. Measuring system, V - 0/1/2 (50 w) and 5 VA/B (500 w) level)

12.Experimental background : black background

13.Test process, test program automatic control, independent convulsions

14.Studio volume : 0.75 cubic, stainless steel chassis

15.Dimension(w*d*h): 1100 *700 *1300 mm

STANDARDS      skp      tonnyinstruments

Plastic horizontal combustion test: UL,HB,IEC 60695-11-10,IEC 60707,ISO1210,GB/T2408;

50 W vertical combustion test: UL 94,V0,V1,V2,IEC 60695-11-4,IEC 60695-11-10,ISO 1210,GB/T 2408,GB/T 5169.16,GB/T5169.22;

500 W vertical combustion test: UL94,5VA,5VB,IEC 60695-11-3,IEC 60695-11-20,GB/T 5169.15,GB/T5169.17;

Thin soft plastic vertical combustion test: VTM-0,VTM-1,VTM-2,ISO 9773;

Foamed plastic vertical combustion test: HF-1,HF-2,HBF,ISO 9772,GB/T 8332.
