| Model Number: | KYL-815 |
|---|---|
| Brand Name: | KYL |
| Place of Origin: | China (Mainland) |
| Inpute type: | 4 digital inputs |
| outpute type: | 4 replay output |
| control distance: | 2-3km LOS |
| Max.Voltage: | 24V |
Quick Details
Specifications

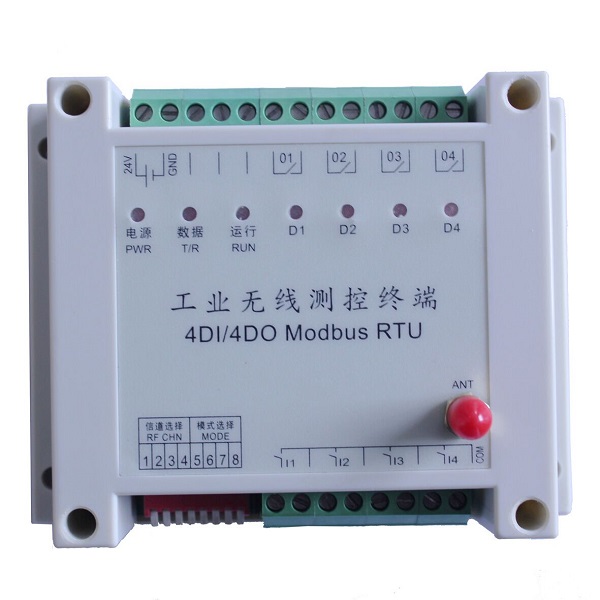

4 way relay Wireless I/O module to Control ON-off
Pin Definition:
Accessory
Welcome to contact Sarah if have any question:sales01(at)RF-data(dot)com
Features :
1. 4-way isolated input, high reliability and stability.
2. 4-way relay dry contact output, contact current is 220V, 5A.
3. Collocated with a wireless data module inside whose transmitting distance is about 2km-3km;
4.the working frequency 433MHz
5.RF power: 1000mW;
6.Receiving sensitivity: -120dBm
7. Receiving current: 60mA; transmitting current: 350mA
8. Power supply: DC 12V-30V
9.Data rate : 1200pbs/2400bps/9600bps/19200bps
10. Dimension: 95mm x 90mm x 40mm
Pin Definition:
Port name |
Pin No. |
Definition |
Remarks |
COM1 |
1 |
GND |
GND |
2 |
VCC |
DC:12-30V | |
3 |
- |
No conection | |
4 |
- |
No connection | |
5 |
- |
No connection | |
6 |
OUT1 |
1st way relay day contact output | |
7 |
|||
8 |
OUT2 |
2nd way relay day contact output | |
9 |
|||
10 |
OUT3 |
3rd way relay day contact output | |
11 |
|||
12 |
OUT4 |
4th way relay day contact output | |
COM2 |
1 |
IN1 |
1st on-off input |
2 |
GND | ||
3 |
IN2 |
2ns on-off input | |
4 |
GND | ||
5 |
IN3 |
3rd on-off input | |
6 |
GND | ||
7 |
IN4 |
4th on-off input | |
8 |
GND |
