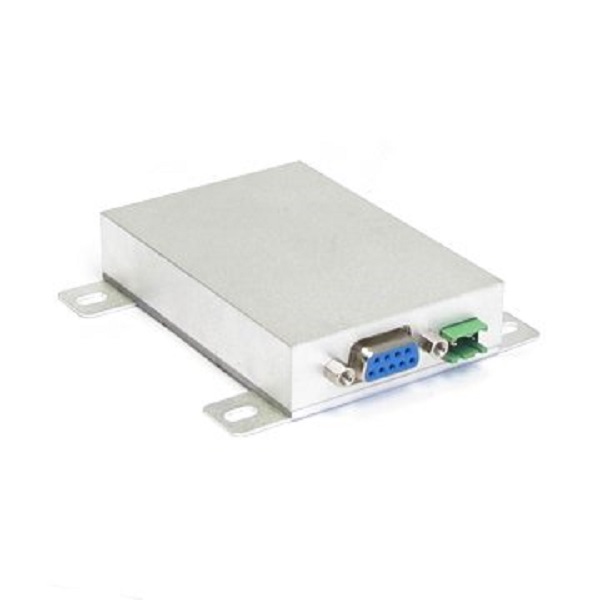

| Model Number: | KYL-600H |
|---|---|
| Brand Name: | KYL |
| Place of Origin: | China (Mainland) |
| Interface: | RS485/RS232/TTL |
| Frequency: | 150mhz/230mhz |
| Air speed rate: | 1200bps/2400bps |
| Output Power: | 5W |
| Volatge: | 12V |
Quick Details
Specifications
Data Sheet:
- Audio/data compatible
- Double phase-lock loop, double VCO structure, high stability
- Providing various MODEM communication agreements
- Modulation: FSK/MSK
- Metal shell metal, good shielding performance.
- Sensibility: -119dBm
- Carrier frequency: VHF/UHF/230MHz
- Air data rate:1200/2400
- Interface: TTL/RS-232/RS-485 optional
- Frequency stability: 2.5ppm
- Number of Channels: 8/16/32 or more (optional)
- Channel spacing: 25kHz
- Antenna impedance: 50 ohm
- Supply voltage: 12V
- Power output: 5W (500mW-5W optional)
- Size: 96x58x18mm(without radiator)
- Transmission distance: 8-12Km
Pin Definition
Pin No. |
Signal Name |
Definition |
Description |
Remarks | ||
Power |
1 |
VCC |
DC12V±10% |
Maximum transmission current: 1.5A |
| |
2 |
GND |
Grounding of power supply |
|
| ||
| ||||||
Signal base |
1 |
GND |
Grounding of power signal |
|
| |
2 |
A(TXD) |
Data receiving |
TTL TX / RS232 TX / RS485-A |
Choose one | ||
3 |
B(RXD) |
Data transmitting |
TTL RX / RS232 RX / RS485-B | |||
4 |
NC |
|
|
| ||
5 |
DGND |
Grounding of Signal |
|
| ||
6 |
PTT |
Audio transmitting control |
|
| ||
7 |
MIC in |
Microphone input control |
|
| ||
8 |
SPEAKER OUT |
Speaker output control |
|
| ||
|
9 |
TEST |
Factory testing |
|
| |
Accessories:
Pls kindly note for long range transmission we recommend using 5.5dbi clip antenna or fiberglass antenna
Application:
- AMR (Automatic Meter Reading)
- Wireless alarm and security systems
- Building automation, wireless monitoring and access control system
- Wireless data transmission, automatic data collection system
- Radio modem can be used for sports training & competition
- Wireless dishes ordering
- Wireless POS, PDA wireless smart terminal
- RF modem can be used for electronic bus station and intelligent traffic
- RF transmitter wireless electronic display screen and queuing machine
- Wireless telemetry charging for parking, parking lot
- Wireless modem automobile inspection and four-wheel orientation
- Wireless sensor industrial wireless remote control and air conditioning remote controller
- Data communication used for railway, oil field, dock and army
- LED display in thruway and public places
- Wireless RS232/RS485 conversion/connector
- Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system
- Wireless data collection, controlling in industry and oil field, water measure and more
