| Type: | Character |
|---|---|
| Model Number: | LMB0820A |
| Brand Name: | TOPWAY |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

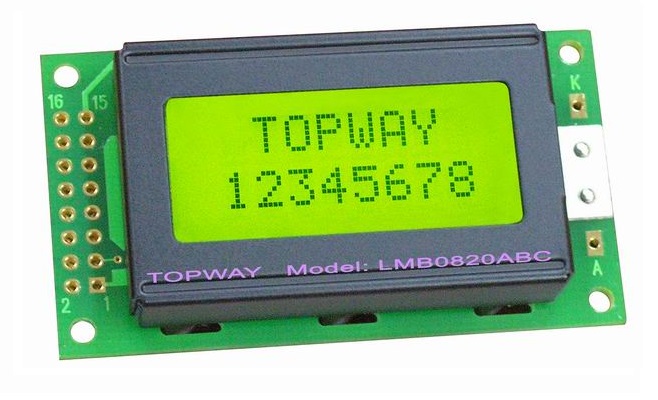

Character 8x2 LCD Module
1)8x2 characters
2)Outline(mm): 58.0x32.0x14.0MAX
3)Parallel interface, support both 3.3V or 5V power supply
4)STN-YG, STN-Blue with YG or white LED backlight optional
1)8x2 characters
2)Outline(mm): 58.0x32.0x14.0MAX
3)Parallel interface, support both 3.3V or 5V power supply
4)STN-YG, STN-Blue with YG or white LED backlight optional
| Item | Description |
| Product Name | Chracter 8x2 LCD Module(LMB0820A) |
| Model No. | LMB0820D |
| Dot Format | 8 x 2 |
| Outline Dimension(mm) | 58.0 x 32.0MAX |
| Assem. Size(mm) | 53.0 x 27.0 |
| Viewing Area(mm) | 27.81 x 11.5 |
| Character Size( mm) | 2.96 x 5.56 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN-YG, STN-blue |
| Backlight | White or YG LED backlight |
| Driver IC | ST7066U |
| Power supply | 3.3V or 5V |
| Interface | Parallel |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
