ISO certification Turbine Oil Cleaning Machine,Turbine Oil Purifier

 I.Application
TF series is particularly suitable for purifying turbine lubricating oil.It also applys to treat hydraulic,coolant oil and other lubrication in which contain large amount of water and others such as vapor,impurities,sludge,dielectric and colloid.
TF series will result in the improvement of the properties of turbine oil or other lubrication and extending the maintenance period of turbines or other equipments which have lubrication system and keep them operate in good condition.

II.Description
TF turbine oil purifier series is developed by vacuum evaporation technology,coacervation technology,coalescing technology,separating engineering technology and refined purification technology.It can eliminate water,gas,impurities,colloid,dielectric etc. rapidly and effectively in high vacuum situation and make the waste oil reuse.
The lubrication of turbine or other equipments which has lubrication system need be replaced frequently because of vapor,water and other impurities mixed with it.Otherwise,oil deterioration would result in breakdown of machinery or affect the normal running of machinery.
TF series can effectively extend the lifetime of oil and protect turbine and other machinery which has lubrication system from damage.

III. Features
1.Eliminate soluble and dissolved water effectively and demulsify rapidly.
TF series can not only separate large quantity of water but also remove trace water from oil.Fitted with specially made demulsifying device(water separator).It is capable of making turbid emulsified oil very clear.
2.High effectively purify matters in oil such as impurities,sludge etc.
The automatic backwash filtering system can remove large amount of particulate matters and fine filter system can remove tiny particles.
3.High automation,stability and operation online High automation,small size,light weight,safety,and reliability.Installed with inrared liquid level automatic controller,the purifier machine will run automatically and easy handling.

IV.Available Style
1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.

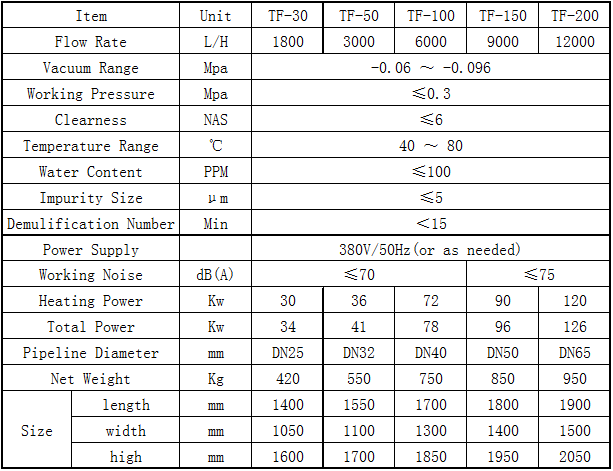

V.Technical Specification

Relative Series:
VFD series: Insulation Oil Purifier Series
TF series: Turbine Oil Purifier Series
LV series: Lubrication Oil Purifier Series
GER series: Used Engine Oil Regeneration System

VFD series: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It  also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

More infomation please feel free to contact us!
