| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 |
| Certification: | ISO |
| Dimension(L*W*H): | according to flow rate |
| Weight: | 360-1200KG |
| Power(W): | 17-186KW |
| Model Number: | LV |
| Brand Name: | Sino-NSH |
| Place of Origin: | China (Mainland) |
| Structure: | Vacuum |
| Type: | Suction Filter |
| Condition: | New |
| Flow Rate: | 600-12000L/H |
| Working Pressure: | less than 0.4Mpa |
| Clearness: | NAS 6 grade |
| Water Content: | less than 100PPM |
| Impurity Size: | less than 5um |
| Power Supply: | 380V/3P/50Hz(or as needed) |
| Material: | Stainless Steel |
| Working Noise: | less than 75 dB(A) |
| Heating Power: | 15-180KW |
| Color: | customized |
Quick Details
Specifications
Brief Introduction About Sino-NSH
Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.We can ensure the first-class quality as well as provide the first-class service.NSH has been engaging in oil purifier producing, our products are extensively used in the fields of electric power, petroleum, natural gas, mechanical engineering, metallurgy etc. We provide oil purifier machine for many famous brands like SIEMENS, ABB etc.()

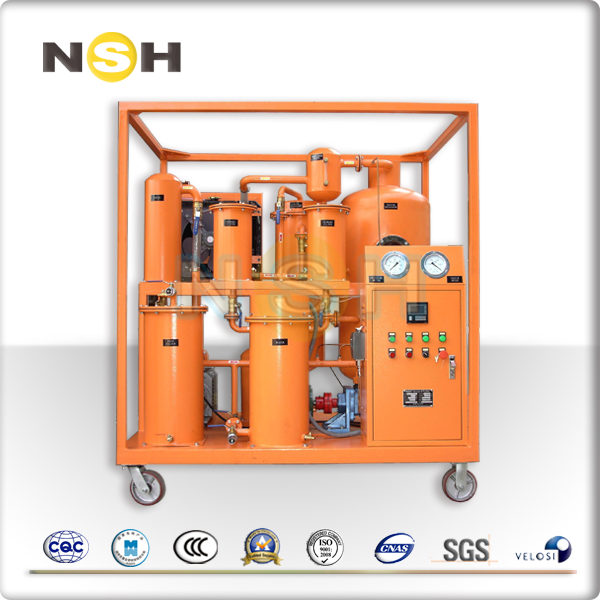

Waste Lube Oil Purifier Machine With Higher Precision And Speed
I.Application
LV series oil purifier are specially suitable for purifying and restoring hydraulic oil,machine oil,coolant oil and various other lubrication oil.Most of breakdown of machinery which has lubrication oil system results from contaminated lubrication in which has water,gas,impurities etc.LV series can rapidly remove water,gas,particulate matters and impurities from lubrication oil and improve properties of lubricating oil so as to greatly extend lifetime of machinery which has lubrication system.
Custom options are available.
II.Features
1.Perfect capacity of removing impurities.The special filters made by NSH are made of special materials which can eliminate various impurities,water and gas effectively and rapidly.
2.Automatic reverse wash system will extend the lifetime of filters and improve the performance of the filters.
3.High performance of security system including pressure protection device and automatic temperature controller makes purifier safely.
4.Online work.
5.Easy handling and maintenance.
6.Lower maintenance and replacement expenses.
7.Small size,light weight,low noise.
8.Various sizes and configurations(alloy shield) available.
III.Available Style
1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.
IV.Relative Models
LV-A Lubrication Oil Automation Oil Purifier
LV-R Lubrication Oil Regeneration Purifier
LV-E Lubrication Oil Exolosion-proof Purifier

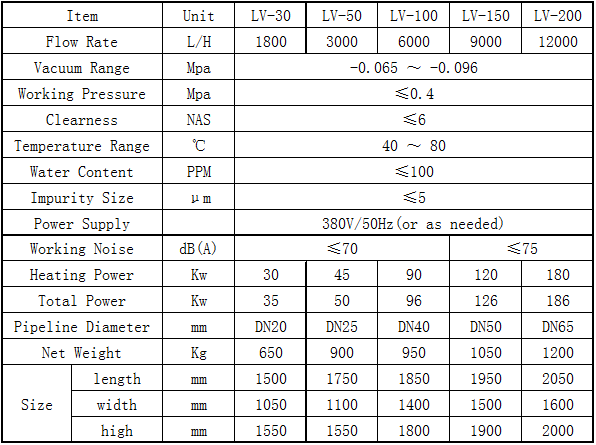

V.Technical Specification
Relative Series:
VFD series: Insulation Oil Purifier Series
TF series: Turbine Oil Purifier Series
GER series: Used Engine Oil Regeneration System
VFD series: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.(lubrication oil recycling,waste oil recycling)
GER series: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
More infomation are attached,if you have any question please feel free to contact us!
