Printing Type: | for any printing machine |
---|---|
Use: | for any brand printing machine |
Type: | PCO Series Magnetic Powder Clutch |
Brand Name: | Sunrise Group |
Usage: | PCO Series Magnetic Powder Clutch |
Model Number: | Magnetic Powder Clutch SG-PCO-015 |
Place of Origin: | China (Mainland) |
Place of Origin:: | Guangdong, China (Mainland) |
Brand Name:: | Sunrise Group |
Model Number:: | SG-PCO-015 |
Type:: | Magnetic Powder Clutch, |
Use:: | For any brand printing machine |
Printing Type:: | For any printing machine |
Rated torque::: | 12Nm |
Material:: | Stainless steel |
Rated volatage:: | 24V DC |
Color:: | gray |
Quick Details
Specifications
Fields of application:
Unwind brakes / winding
Torque controls
Speed controls
Clutch proceedings
Start controls
and powder clutch key features:
1. Using antifriction, anti-erode super alloy magnetic powder as material.
2. Clutch and brake powder and slide rate is high which can slide neatly and is not arose shake.
3. the coil is covered by red H grade heat resistance material which is not easy to burn by lighter.
4. Our bearing is imported from Japan which can bear up 180 degrees.
data:
Model | PCO-006 | PCO-015 | PCO-025 | PCO-050 | PCO-100 | PCO-200 | PCO-400 | |
Rated torque [kgf](N-m)[ | 0.6(6) | 1.2(12) | 2.5(25 | 5(50) | 10(100) | 20(200) | 40(400) | |
Capacity DC24V ( 75C) |
Current (A) | 0.9 | 1.0 | 2.0 | 2.3 | 2.5 | 2.5 | 3.0 |
Power (W) | 17.8 | 21.6 | 26.4 | 33.6 | 48 | 60 | 82 | |
No. of hour set (S) | 0.10 | 0.10 | 0.12 | 0.13 | 0.25 | 0.37 | 0.4 | |
Weight | 2.7 | 5.2 | 9 | 14.5 | 37 | 53 | 106 | |
Maximum speed r/min | 1500 | |||||||
Weight of powder (g) | 14 | 25 | 39 | 60 | 117 | 255 | 370 | |

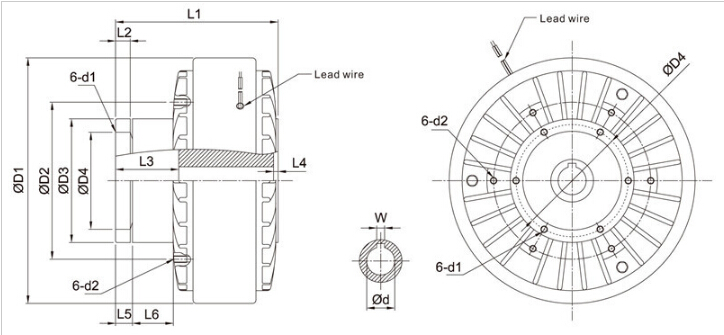

Exterior Dimension |
L1 | 110 | 126 | 122 | 155 | 177 | 197 | 239 |
L2 | 8 | 9 | 10 | 12 | 14 | 15 | 18 | |
L3 | 44 | 49 | 51 | 64 | 77 | 83 | 91 | |
L4 | 3 | 3 | 4 | 4 | 8 | 9 | 7 | |
L5 | 13 | 14 | 15 | 17 | 20 | 21 | 25 | |
L6 | 24 | 29 | 26 | 36 | 45 | 42 | 42 | |
D1 | 140 | 152 | 186 | 220 | 290 | 336 | 398 | |
D2 | 100 | 105 | 115 | 140 | 180 | 190 | 210 | |
D3(g7) | 85 | 90 | 100 | 120 | 150 | 170 | 180 | |
D4 | 75 | 80 | 85 | 105 | 130 | 150 | 160 | |
D(H7) | 16 | 20 | 25 | 30 | 35 | 45 | 50 | |
W(F7) | 5 | 6 | 8 | 8 | 10 | 14 | 14 | |
D1* depth | M5*8L | M6*9L | M6*10L | M6*12L | M10*14L | M10*15L | M12*18L | |
D2*depth | M5*10L | M6*12L | M6*12L | M6*14L | M10*15L | M10*16L | M12*19L | |
* Printing systems: conveyors and in-feeders
*Wood-working systems: saws, wood-working machine, laminators
* Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
* Testing systems: lab machines, durability testers, measuring systems
* Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
* Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.
Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? and looking for available and enduring ones with warranty?
You've come to the right place!
Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!
Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call
Us or tell us in your email, so that we can regard your inquiry priority.
2. how should I place the order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. for air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3. What's your MOQ basis?
Normally, we don't have MOQ request, except the rollers.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. for powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. for safety chucks, air shaft and roller
Which need about 15-30days.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIFetc. You can choose the most convenient one or cost-effective way.
