| Insulation Material: | Enameled |
|---|---|
| Conductor Material: | Aluminum |
| Application: | Heating |
| Type: | Insulated |
| Brand Name: | LP Industry |
| Conductor Type: | Solid |
| Place of Origin: | China (Mainland) |
| Name: | Enameled Aluminum Magnet Wire With UL Approved |
| Standard: | GB IEC JIS NEMA |
| Certification: | UL SGS ROHS ISO |
| Insulation: | Polyamide-Imide |
| Voltage: | 450/750V300/500V300/300V.(600/1000V |
| Temperature range: | 130/155/180/200/200 |
| Size: | Round: 0.2mm-8.0mm; Flat: a:1-10mm, b:3-16mm; Square: a(b):0.8-7mm |
| Packing: | Plastic Spools |
| Delivery time: | 15-25days |
Quick Details
Specifications

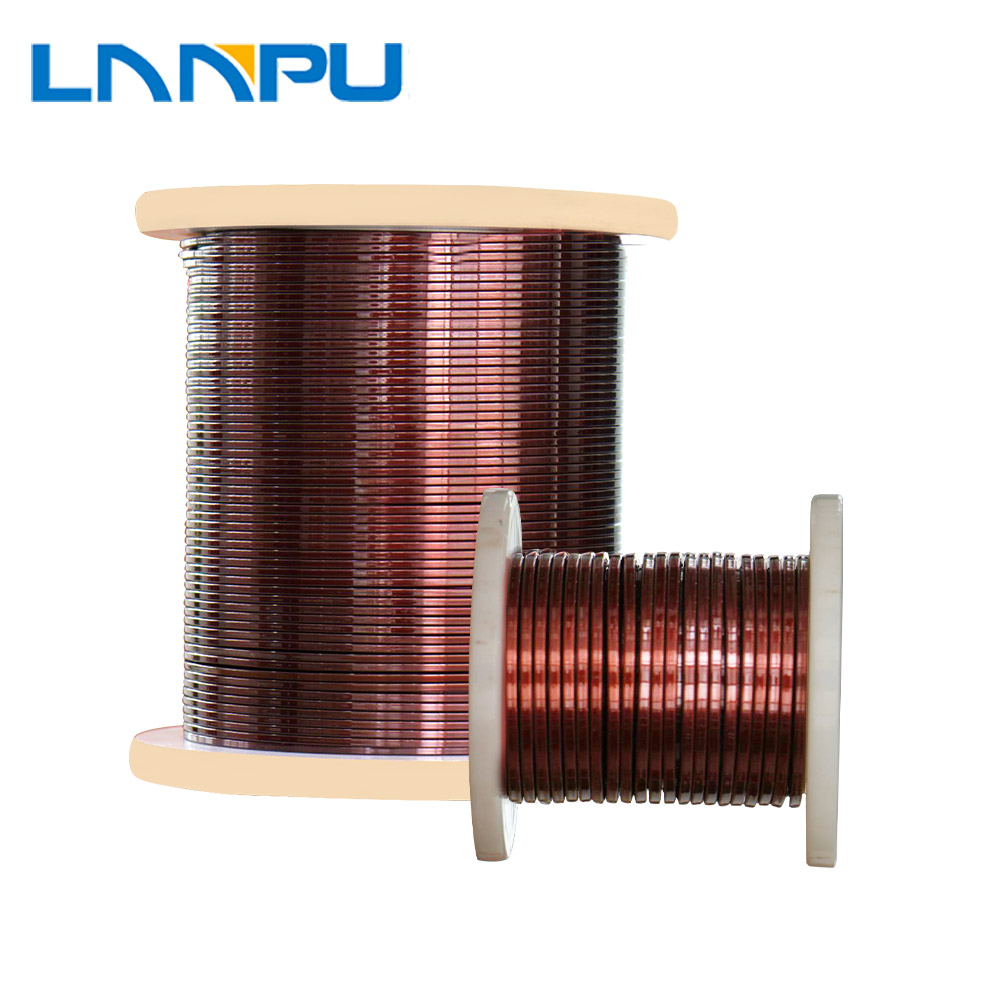

Enameled Aluminum Magnet Wire with UL Approved
1. Zhengzhou LP Industry Co., Ltd Our company supply super enameled aluminum magnet wire.
1. Zhengzhou LP Industry Co., Ltd Our company supply super enameled aluminum magnet wire.
2. Detailed Product Description
Supply scope:
Enameled Aluminum Wire round diameter: 0.2mm-8.0mm
Enameled Aluminum Wire round diameter: 0.2mm-8.0mm
BWG 4-33, SWG 4-35 AWG 2.5-32
Flat scope: Thickness(a): 1mm-10mm, Width(b): 3mm-35mm
Suitable insulation: UEW/PEW/PIW/EIW/AIW
Suitable insulation: UEW/PEW/PIW/EIW/AIW
3. Features: Natural color, Excellent resistance to abrasion and solvent, excellent electricity performance
Excellent heat shock, adherence and flexibility, high cut through
4. Temperature Class of Enameled Aluminum Wire: B130C, F155C, H180C, H+200C, C220, C+240
5. Typical Applications: Relays, Micro-motors, Mini-transformers, Ignition coils, Water valves, Magnetic heads, Coils for telecommunication equipment
6. Remark: the special specification can be produced and accustomed according to requirements of clients.
