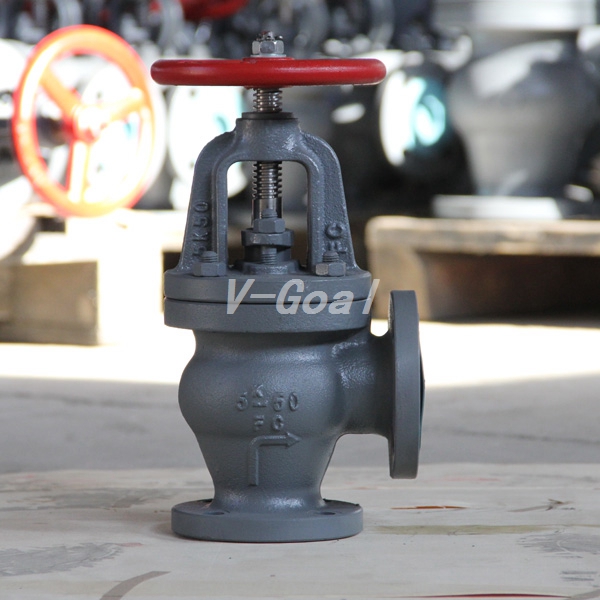

1)F7354-Marine Cast Iron 5K Screw-down Check Angle valve

Nominal pressure; 5K(0.49Mpa)

DN 50, 65,80,100,125,150,200,250,300,350,400,450

2)F7376-Marine Cast Iron 10K Screw-down Check Angle valve

 Nominal pressure; 10K(0.98Mpa)

 DN 50, 65,80,100,125,150,200,250

3)F7378-Marine Cast Iron 16K Screw-down Check Angle valve

Nominal pressure; 16K(1.56Mpa)

DN 50, 65,80,100,125,150,200

1.End Type; Flange

2.Angle Type

3. Main material;

Body/Bonnet;FC200;or FCD400

Disc/Valve seat/ Gland packing; BC6; or brass or Stainless Steel 2CR13 or 1CR13

Stem; Brass C3771BD; or Stainless Steel 2CR13 or 1CR13.

Gasket; Non-asbestos;

Hand-wheel; FC200

4.Application;Sea water piping, fresh water piping, oil piping and steam piping.

5.Function:High flow, Zero leakage check globe valves are used for on-off duty and regulating the flow into one direction.
