| Type: | Moving Head Lights |
|---|---|
| Brand Name: | Dovefen |
| Certification: | CE,RoHS |
| Working Lifetime(Hour): | 2000 |
| Lamp Power(W): | 250 |
| Input Voltage(V): | AC100-240, 50-60HZ |
| Model Number: | DF-M230 BEAM |
| Place of Origin: | China (Mainland) |
| Emitting Color: | Changeable |
| IP Rating: | |
| Working Temperature(): | |
| Color Temperature(CCT): | Cool White |
| Lamp source: | YOND MSD 200R5 / YOND MSD 230R7 (optional: OSRAM SIRIUS HRI 7R ) |
| color: | 14 fixed color+white |
| gobo: | 17 fixed gobos+white |
| Prism: | 16-facet prism |
| Dimming: | 0-100% |
| Pan: | 540 (16bit) |
| tilt: | 270 (16bit) |
| channel: | 16/20CH alternative |
| Control mode: | Standard DMX512 |
Quick Details
Specifications
| Specification | |

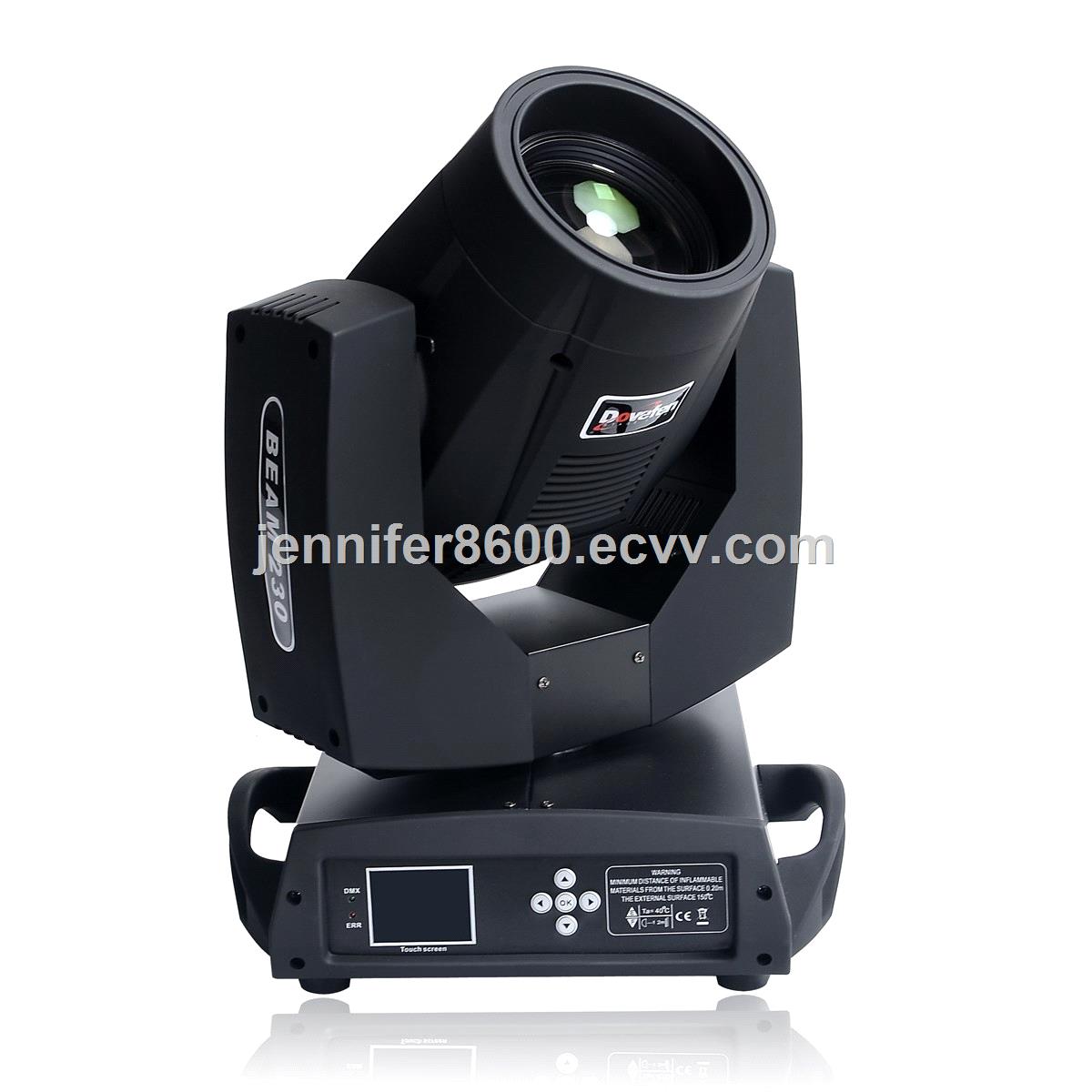

| Name: | 230W 7RMoving Head Beam Light |
| Model: | DF-M230 BEAM |
| Voltage: | AC100-240, 50-60HZ |
| Rated Power: | 280W |
| Lamp Source: | YOND MSD 230R7 (optional: OSRAM SIRIUS HRI 7R ) |
| Color temp: | 8500K/4500K/3200K |
| Lifespan: | 2000 hours |
| Beam Angle: | Parallel beam Angle, 0-3 Adjustable |
| Dimming: | 0-100% Electronic Linear Dimming |
| Strobe: | 1-20 Times/sec, pulse Strobe, Synchronous and Asynchronous Strobe |
| Fixed color | 14 fixed Color+white, Half-tone Effect, Linear color Conversion, Bidirectionally Rotatable at Variable Speeds |
| Static gobo | 17 fixed Gobos+white, shake and Bidirectionally Rotate at Variable Speeds |
| Prism: | 16-facet Prism, Bidirectionally Rotate at Variable Speeds |
| Forst Effect | 0-100% |
| Focus | Electronic Focusing |
| Pan/tilt: | Pan Scanning angle 540(16-bit) |
| Tilt Scanning angle 270(16-bit) | |
| Double-phase motor Provides fast Smooth Scanning and Eliminates drive noise | |
| Channel: | 16/20CH Alternative |
| Control mode | Standard DMX512, Automatic / Master-slave /sound Control mode |
| Display: | Full color touch Screen, Chinese and English |
| IP: | IP20 |
| Weight: | N/W: 18.5KG; G/W: 20.5KG |
| Product size: | 300 x 310 x 450MM /unit |
| Packing size: | 440 x 410 x 540MM /unit |
| Accessories | User Manual 1 PC; clamp 2 pcs; Safety cord 1 PC; power Cable 1 PC; Signal cable 1 PC |
| Service | |
| MOQ: | 1 unit Acceptable |
| Pruduct ETD: | 2-7days for small Order, 7-20days for big order |
| Customized: | Accept OEM, Customized LOGO Printing |
| Quality: | CE , RoHS . Strict QC Procedure ,3 days Testing Before Loading |
| Quotation: | EXW , FOB |
| Payment: | 1.T/T, L/C, Western Union, Paypel, Escrow, Cash |
| 2.Small Order:pay in Advance Before Shipment. | |
| 3.Bulk Order:30% Deposit after order Confirmed, the Balance 70% after goods ready Before Shipping. | |
| Package: | Flight case, Carton |
| Shipping: | by air, by sea, by Express(DHL/ UPS/ FEDEX/ TNT/ EMS) |
| after-sale Service: | 1. 12 Months for Hardwear(bulb only Warrant for 3 Months), Lifelong for Software |
| 2. if there is a Problem with the Product, pls Describe it and sent Necessary Pictures or video to us for Analyzing. | |
| 3. Then we'll guide you how to fix it and Provide free Accessories if Needed, but the Freight is on your side; | |
4. for the big Issues, pls sent the Defective Product back to us, we'll Resend a new one Instead.
| |
