Passenger Elevator Specification
Product Model:Machine room passenger elevator / Machine room less passenger elevator
Target Market:Residence,Comfortable Housing Project,Office Building,Business Building,Hotel
Control System:VVVF / VVVF
Traction Machine:Permanent Magnet Synchronization Gearless
Door Operator:VVVF / VVVF
Rate Load(Kg):450~2000 / 630/800/1000/1250/1350/1600
Rate Speed(m/s):1.0/1.5/1.75/2.0/2.5/3.0/4.0/5.0/6.0 / 1.0/1.5/1.75
Max Lift Height: 60/72/90/120/180 / 60/72/90
1.the matured and reliable serial communication
2.Smooth start, quiet running
3.the matured and reliable serial communication

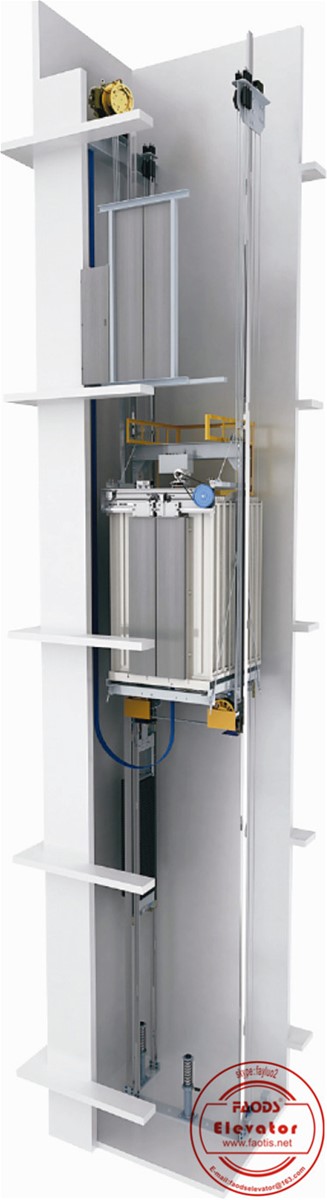

We know very well about the loss reduction and energy-saving, environmental protection ideas for machine roomless passenger lift. with great improving on design freedom of motion & full expressing on green humanities. We endeavor to save the building area, enhance the freedom in design, fully display a green and human concept. Compared with same loading level geared lift, it can save 25% of the electricity 10% of the building area. Machine roomless passenger lift breaks through the premise that every lift needs to have a machine room. It offers an infinitely inventive possibility for the limited space in the modern constructions.
MRL passenger elevator's parameters:
No |
Capacity(kg / p) |
Speed(m/s) |
Car size (w*d*h) |
Door size (w*h) |
Hoistway (w*d) |
Pit |
Overhead |
Open mode |
1 |
450(6) |
1.0 |
1200×1100×2400 |
800×2100 |
1800×1800 |
1400 |
4200 |
Center open |
2 |
630(8) |
1.0 |
1400×1200×2400 |
800×2100 |
2000×1850 |
1400 |
4200 |
Center open |
1.5 |
1700 |
4500 | ||||||
3 |
800(10) |
1.0 |
1400×1400×2400 |
800×2100 |
2000×2050 |
1400 |
4200 |
Center open |
1.5/ 1.75 |
1700 |
4500 | ||||||
4 |
1000(13) |
1.0 |
1600×1500×2400 |
900×2100 |
2200×2150 |
1400 |
4200 |
Center open |
1.5/ 1.75 |
1700 |
4500 | ||||||
5 |
1250(16) |
1.0 |
1800×1500×2400 |
1000×2100 |
2400×2200 |
1400 |
4200 |
Center open |
1.5/ 1.75 |
1700 |
4500 | ||||||
6 |
1600(21) |
1.0 |
2000×1700×2400 |
1100×2100 |
2600×2450 |
1400 |
4200 |
Center open |
the Permanent magnet synchronous gearless traction machine
It chooses the rare earth materials to fully merge the coaxial drive technology, the numeric variable frequency technology, the group-computer combined control technology with the efficient energy-saving, minimum running cost, low heat dissipation, extremely high work efficiency. Compared with the common traditional techniques, it can save more than 40% of the energy. and the gearless traction machine needs no renewal of the grease without any oil stain pollution. the low noise design produces a peaceful riding space for you.
