| Type: | Elevators |
|---|---|
| Elevator Type: | Passenger Elevators |
| Drive Type: | AC |
| Usage: | Sightseeing Elevators |
| Model Number: | TGJ/TGJn |
| Brand Name: | FAODS |
| Place of Origin: | China (Mainland) |
| Capacity: | 630kg~2000kg |
| speed:: | 1.0m/s~2.5m/s |
| Machine room: | MR/MRL |
Quick Details
Specifications
Panoramic Elevator Specification
Product Model:Machine room panoramic Elevator | Machine room less panoramic Elevator
Target Market:Comfortable Housing, Project Office Building | Residence, Hotel
Control System:VVVF | VVVF
Traction Machine:Permanent Magnet Synchronization Gearless | Permanent Magnet Synchronization Gearless
Door Operator:VVVF | VVVF
Rate Load(Kg):630/800/1000/1250/1350/1600 | 630/800/1000/1250/1350/1600
Rate Speed(m/s):1.0/1.5/1.75/2.0/2.5 | 1.0/1.5/1.75
Max Lift Height:60/72/90/120 | 60/72/90

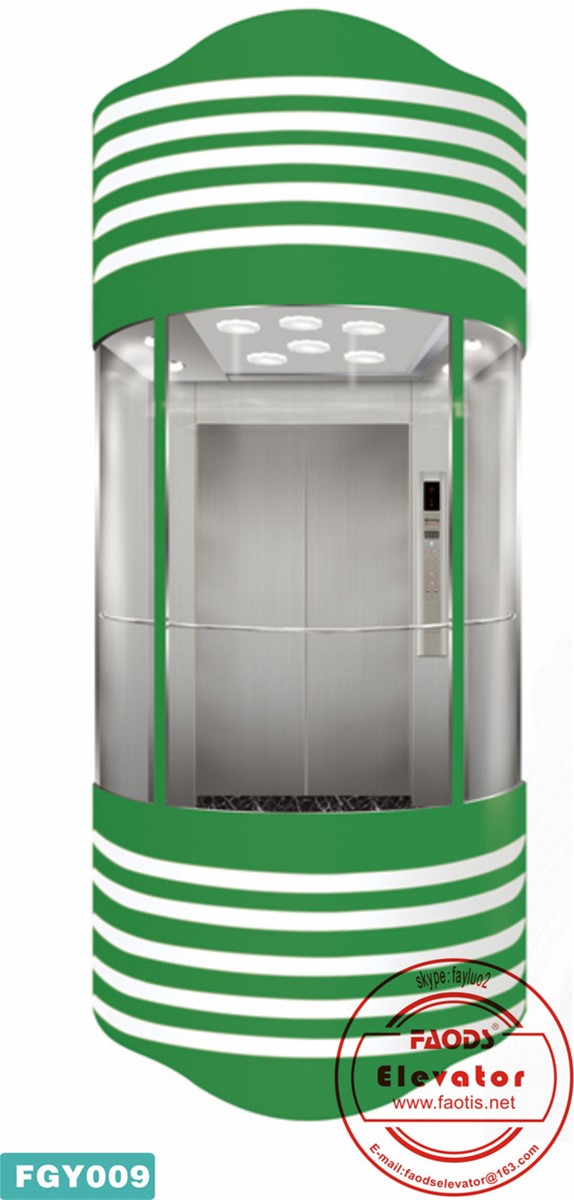

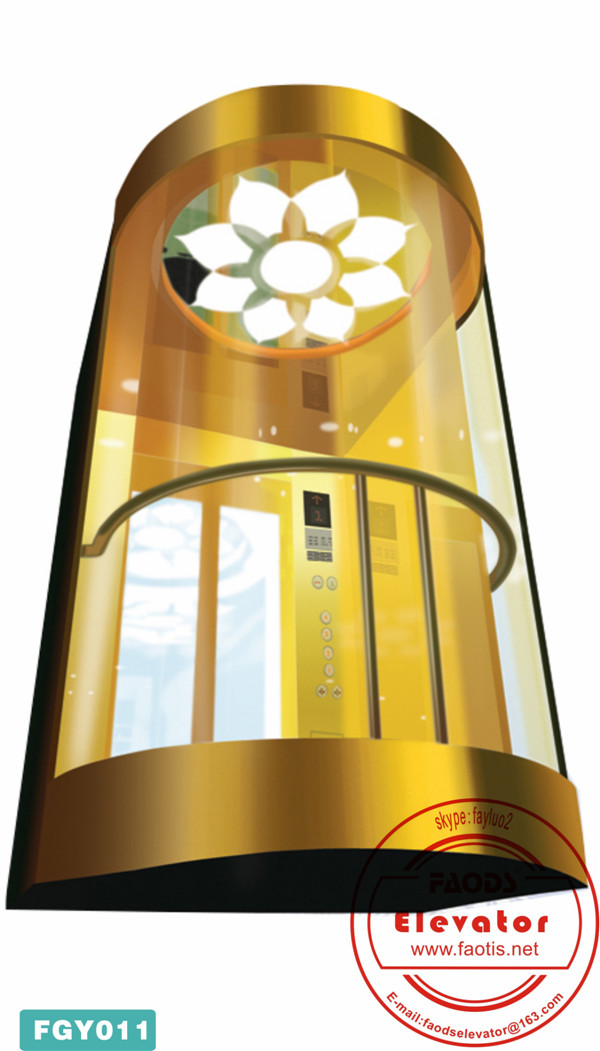

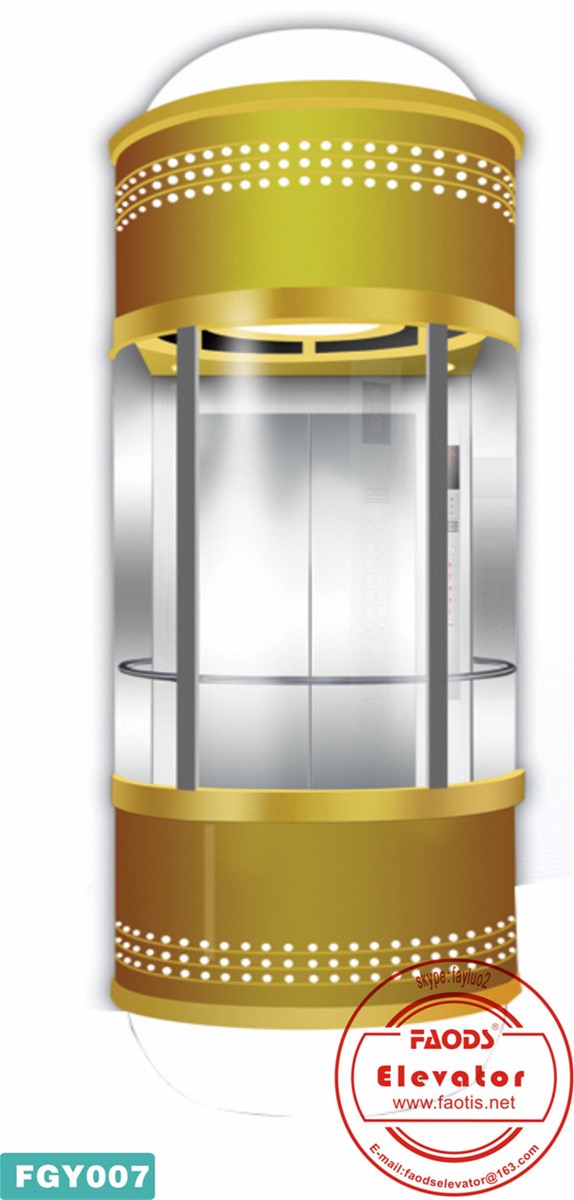

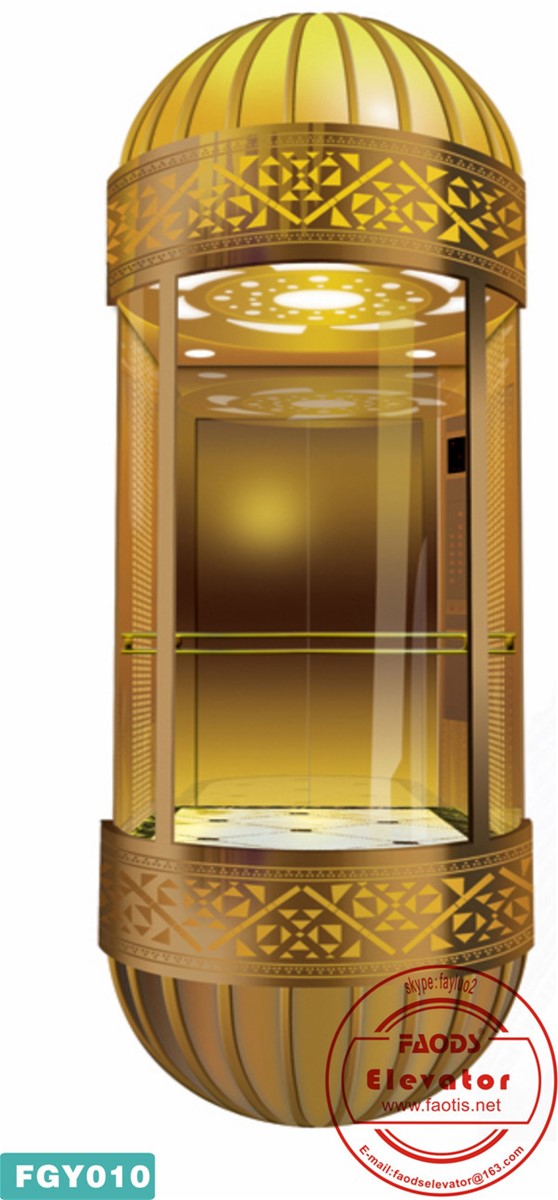

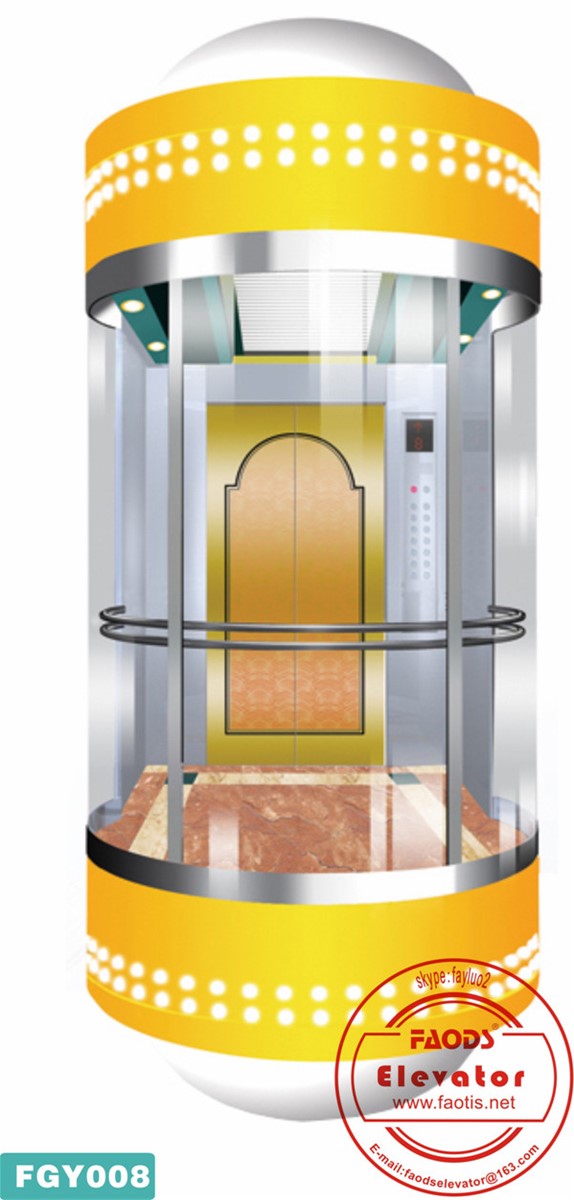

Suzhou faods panorama elevator series apply the open and deluxe decoration style. It is famous for super-strong visual aesthetics, the elaborate material, the consummate manufacture craft & technology. The excellent sight-seeing lift not only harmoniously combines with your high-grade building, but also adds glamour to each other.
Suzhou faods panorama elevator introduces a full set of the latest USA control technology; apply new modern materials and the latest processing craft & technique to produce serial observation lift products. this kind of products have the most perfect performance in lots of aspects such as the running quality, safety functions, car model design, energy-saving and loss reduction etc.
We strive to bring advanced super view aesthetics to the serial products. Which will be the most glaring flowing scene which up and down in the buildings? When the night falls, Lift deducts the dazzling light of aristocracy in the constructions.
Panorama lift parameter table:
No |
Capacity(kg / p) |
Speed(m/s) |
Car size (w*d*h) |
Door size (w*h) |
Hoistway (w*d) |
Pit (d) |
Overhead (d) |
MR size (w*d*h) |
Open mode |
1 |
630(8) |
1.0/ 1.5 |
1200×1600×2400 |
800×2100 |
2300×2200 |
1800 |
4800 |
3000×3200×2200 |
Center open |
2 |
800(10) |
1.0/ 1.5/1.75/ 2.5 |
1400×1600×2400 |
800×2100 |
2400×2200 |
2000 |
5000 |
3000×3500×2400 |
Center open |
3 |
1000(13) |
1.0/ 1.5/ 1.75/2.5 |
1400×1800×2400 |
900×2100 |
2450×2400 |
2000 |
5000 |
3000×3500×2400 |
Center open |
4 |
1250(16) |
1.0/ 1.5/ 1.75/2.5 |
1500×2000×2400 |
1000×2100 |
2600×2650 |
2000 |
5000 |
3500×4000×2400 |
Center open |
5 |
1600(21) |
1.0/ 1.5/ 1.75/2.5 |
1600×2300×2400 |
1100×2100 |
2700×2950 |
2300 |
5000 |
3500×4000×2400 |
Center open |
