Tangshan Shengcai Steel co., Ltd. Specialized in hot rolled construction steel,like angles,channel section,coils and plates.the goods have export to South Korea,Singapore,Middle East,and UAE.Etc As mean products angle size range from 25-250mm,with standard JIS G3101SS400/SS540,GB Q345,EN 10025 GDR 355JO,ASTM etc

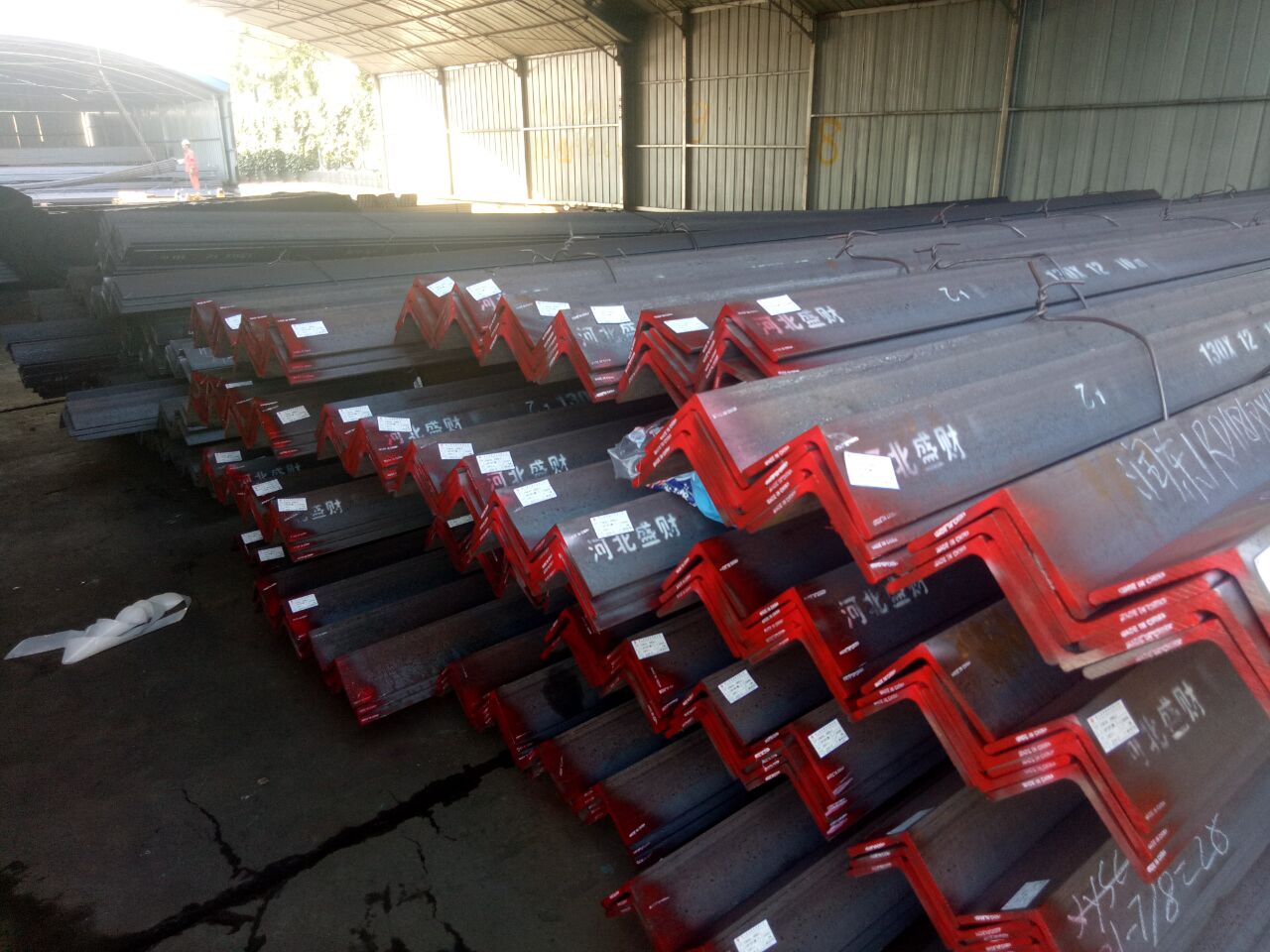

EQUAL ANGLE
Specification	Theoretical weight	Specification	Theoretical weight
WIDTH*WIDTH*THICKNESS(mm)	(kg/m)	WIDTH*WIDTH*THICKNESS (mm)	(kg/m)
25*25*3	1.12	90*90*7	9.59
30*30*3	1.36	90*90*10	13.3
40*40*3	1.83	90*90*13	17
40*40*5	2.95	100*100*7	10.7
45*45*4	2.74	100*100*10	14.9
45*45*5	3.38	100*100*13	19.1
50*50*4	3.06	120*120*8	14.7
50*50*5	3.77	120*120*10	18.2
50*50*6	4.43	130*130*9	17.9
60*60*4	3.68	130*130*12	23.4
60*60*5	4.55	130*130*15	28.8
60*60*6	5.41	150*150*12	27.3
65*65*6	5.91	150*150*15	33.6
65*65*8	7.66	150*150*19	41.9
70*70*6	6.38	175*175*12	31.8
75*75*6	6.85	175*175*15	39.4
75*75*9	9.96	200*200*15	45.3
75*75*12	13	200*200*20	59.7
80*80*6	7.32	200*200*25	73.6
80*80*7	8.48	250*250*25	93.77
90*90*6	8.28	250*250*35	128
UNEQUAL ANGLE
Specification	Theoretical weight	Specification	Theoretical weight
WIDTH*WIDTH*THICKNESS (mm)	(kg/m)	WIDTH*WIDTH*THICKNESS (mm)	(kg/m)
75*50*6	5.67	125*75*9	13.6
75*50*8	7.35	125*75*10	15
100*75*6	8.04	125*75*12	17.8
100*75*7	9.32	150*90*9	16.4
100*75*8	10.6	150*90*10	18.2
100*75*9	11.8	150*90*12	21.5
100*75*10	13	150*90*15	26.6
100*75*12	15.4	150*100*9	17.1
125*75*7	10.7	150*100*12	22.4
125*75*8	12.2	150*100*15	22.7

the LENGTH IS:6-12M
