| Output: | Analog Sensor |
|---|---|
| Theory: | Resistance Sensor |
| Usage: | scale |
| Model Number: | SPA-01 |
| Brand Name: | TST |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

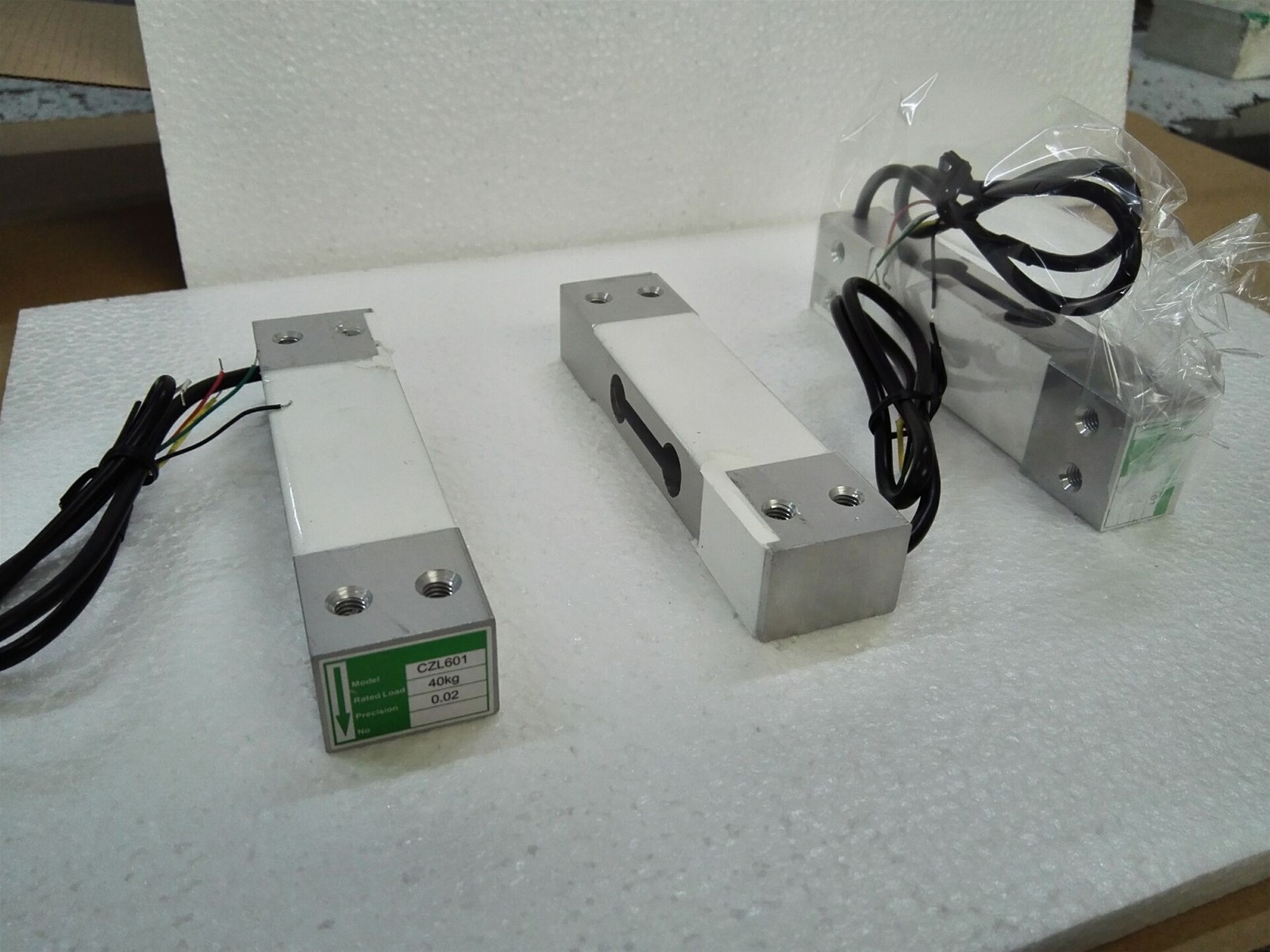

Load Cell, Single Point Type (CZL601)
CAPACITY:
CAPACITY:
3-120KG
FEATURES:
Aluminum-alloy; Colourless anodized; Hermetically sealed with glue to IP65.
APPLICATIONS:
Electronic counting scales, platform scales etc.
Electronic counting scales, platform scales etc.
Precision: 0.02%F.S |
Insulation resistance: ≥5000MΩ(100VDC) |
Rated output: 2±0.1mV/V |
Excitation voltage: 9VDC~12VDC |
Non-linearity: & 0.02%F.S |
Compensated temp.Range: -10℃~+40℃ |
Hysteresis: 0.02%F.S |
Use temp.Range: -20℃~+60℃ |
Repeat: 0.01%F.S & 0.02%F.S |
Temp.Effect on zero: & 0.03%F.S/10℃ |
Creep: 0.02%F.S/10min |
Temp.Effect on span: & 0.02%F.S/10℃ |
Zero balance: ±1%F.S |
Safe overload: 120% |
Input resistance: 405±10Ω |
Ultimate overload: 150% |
Output resistance: 350±3Ω |
Defense class: IP65 |
