Main Features

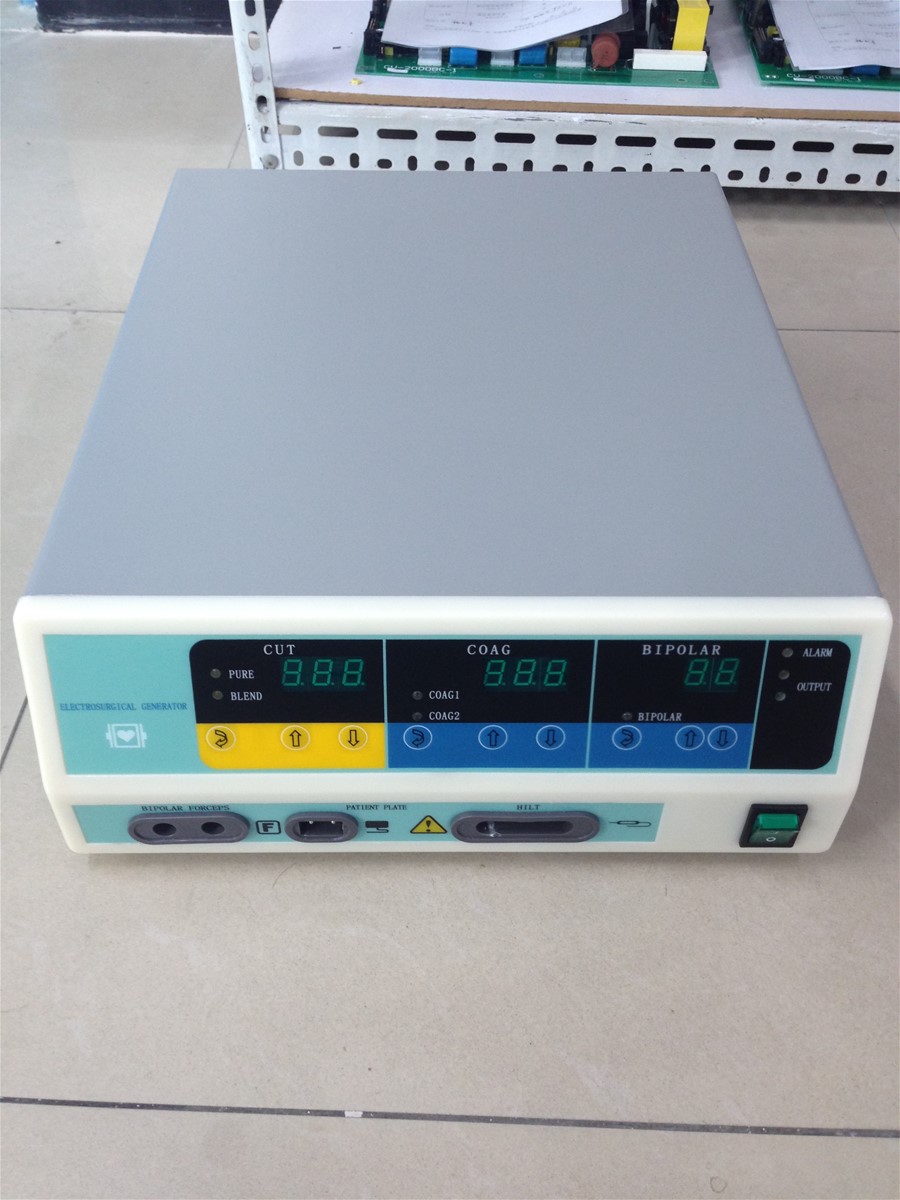

  Max 300W Electrosurgical Generator, with mono-polar and bipolar function.

  Five working modes: pure Cut, blend, spray coag, forced coag, bipolar coag.

  Wide clinical applications, Such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, Gynecology, urology(under water TUR), oncology, neurosurgery, etc.

  Microprocessor controlled, digital Display. with audible and visual indicators and errors codes during the process of outputting.

  Return Electrode Monitoring System and Power Peak System, minimizing the risk of tissue damage.

  both hand and foot controlled.

  Separate power display and Outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar Coag, each output can be individually configured.

  the ESU unit can be connected with laparoscope and endoscope, etc.

  Protection against over-voltage and over-current.

  Defibrillation protected.

  Meets the requirements of International safety standards EN60601-1 and EN60601-2.

Technical Specifications

Power: 220V22V, 50Hz1Hz(110V11V, 60Hz)

Operating frequency: 416KHz

Power rating: 1100VA10

Five Working modes:

Packing list
