| Brand Name: | Kangwei |
|---|---|
| Type: | medical equipment |
| Properties: | The Basis of Surgical Instruments |
| Material: | metal |
| Voltage: | 220V/ 110V |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Main Features
Highest Power:200W
Seven working modes: pure cut, Blend1, blend2, blend3, spray coag, forced coag, bipolar coag.
Microcomputer Control, three-way power output, with different audible and visual indication during the process of outputting.

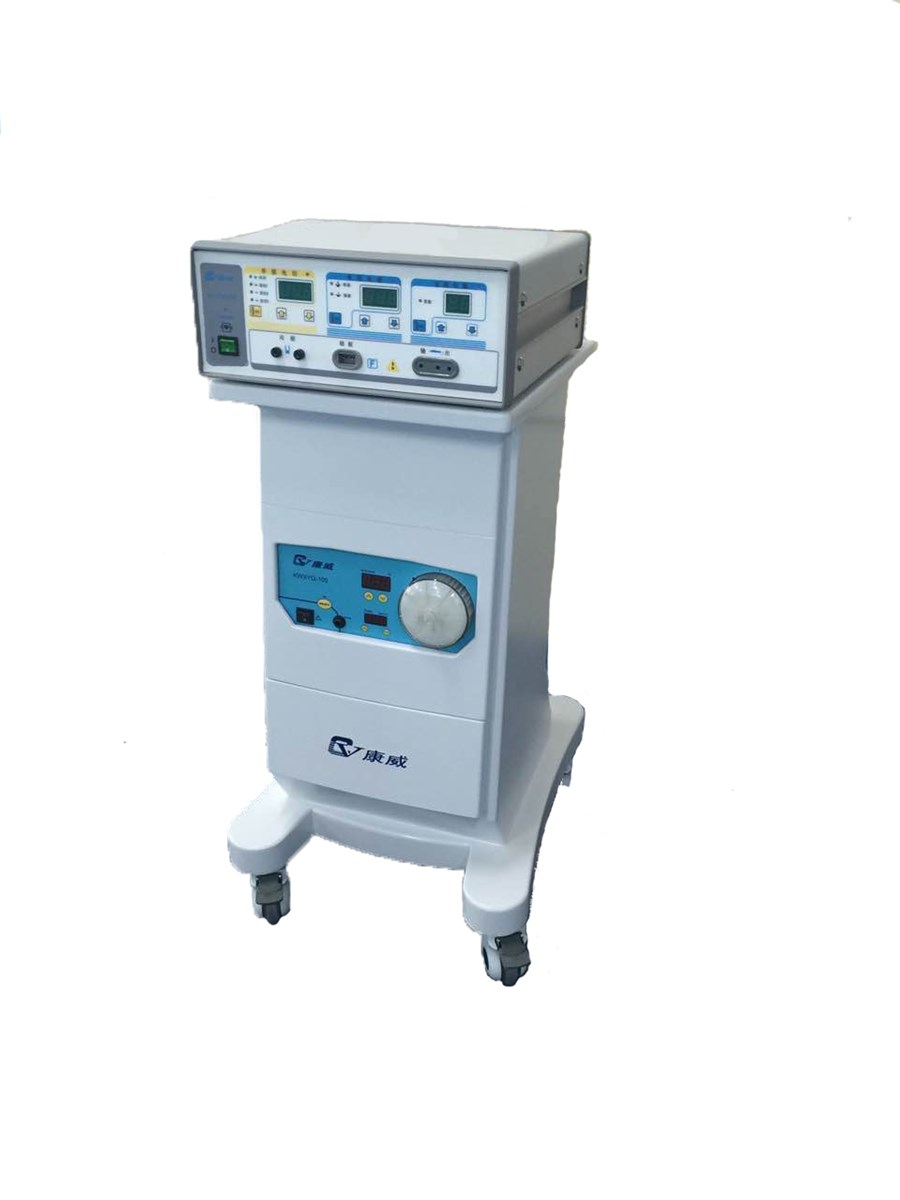

2000LEEP Generator adopts LEEP which specializing in gynecological intrauterine event, Increasing the accuracy, controllability, security of the surgery.
Dealing with some kinds of pathological changes in Obstetric and gynecology, for example, Cutting, electrocoagulation, cervical erosion, and some kinds of surgery that Fit in peritoneoscope.
Different Electrodes have different effects in coagulation.
An optional smoke evacuation system is available.
Particular illuminating ESU pencil can increase the clarity of wound healing.
Technical Specifications
Power: 220V22V, 50Hz1Hz(110V11V,50/60Hz)
Power rating: 1100VA10
Ralated power output
Function |
Working modes |
Power output (Max) |
load |
Frequency |
V-PP |
Crest Factor |
Monopolar Cut |
Pure Cut |
200W |
800 |
416HKz |
2.6kV |
1.5 |
Blend1 |
150W |
800 |
4KV |
1.8 | ||
Blend2 |
100W |
800 |
4.2KV |
2.1 | ||
Blend3 |
80W |
800 |
4KV |
2.7 | ||
Monopolar Coagulation |
Spray |
80W |
800 |
5.3KV |
7.4 | |
Forced |
120W |
800 |
5KV |
3.8 | ||
Bipolar |
Macro-bipolar |
90W |
200 |
350V |
1.6 |
Surgical Smoke Evacuation Parameter
Blowing Rate |
100 l/min @6mm tube |
Start Control |
Manus/Foot/Synchronize |
Suction Adjust |
10%100% |
Stop Delay time |
060s |
AC Power |
AC90~250V, 50Hz |
Power Consumption |
< 350W |
Filter Characteristics |
99.999% @ 0.1-0.2m |
Active Carbon |
97% @ 1 year |
Packing List
Accessory Name |
Quantity |
Main Unit |
1set |
Electrosurgical Pencil |
5pcs |
Electrosurgical Pad |
10pcs |
Electrosurgical Pad cable |
1pc |
Footswitch |
1set |
Bipolar Forceps |
1pc |
Bipolar Forceps cable |
1pc |
Tip Clean Sponge |
1pc |
Electrodes |
10pcs |
Vaginaldilator |
1set |
SurgicalSmoke Evacuation |
1set |
Trolley |
1set |
