| Type: | Graphic |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | Parallel |
| Resolution: | 256x64 |
| application: | LCM |
| Model Number: | LM6800 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

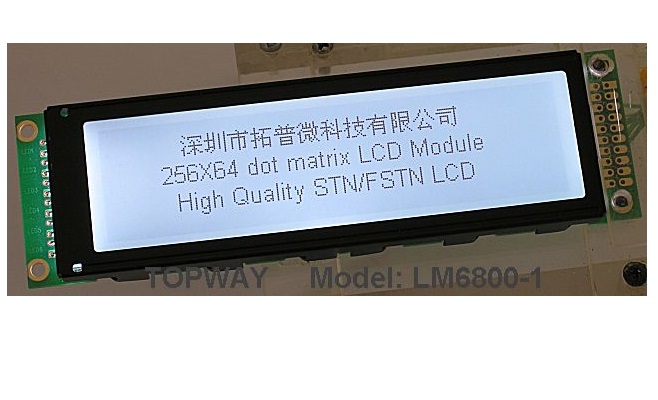

LCM 256x64 dots(LM6800)
- 256x64 dots, parallel interface
- Specially designed for 1U case
- DC/DC on board, 5V power supply
- Wide temperature, High reliability
- Kinds of display model, STN-Gray, FSTN-POS., FSTN-Neg. with White or Green LED backlight optional
- Applications:
* Power supply devices
* Professional audio equipments
- 256x64 dots, parallel interface
- Specially designed for 1U case
- DC/DC on board, 5V power supply
- Wide temperature, High reliability
- Kinds of display model, STN-Gray, FSTN-POS., FSTN-Neg. with White or Green LED backlight optional
- Applications:
* Power supply devices
* Professional audio equipments
| Item | Description |
| Product Name | 256x64 Graphic LCD Module(LM6800) |
| Model No. | LM6800 |
| Dot Format | 256 x 64 |
| Outline Dimension(mm) | 130.5 x 32.0 |
| Assem. Size(mm) | 108.6 x 29.6 |
| Viewing Area(mm) | 102.37 x 25.57 |
| Pixel Size( mm) | 0.37 x 0.37 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN&STN |
| Backlight | White LED backlight |
| Driver IC | S6B0108 |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
