| After-sales Service Provided: | No overseas service provided |
|---|---|
| Warranty: | one year |
| Voltage: | one year |
| Brand Name: | BSIT |
| Condition: | New |
| Certification: | |
| Weight: | 58KG |
| Dimension(L*W*H): | 1300*400*1500mm |
| Power(W): | 380v |
| Model Number: | BS |
| Place of Origin: | China (Mainland) |
| Processing Type: | |
| Product Type: | Paper Cup Machine |
| Operator: | two wroking position |
| raw material: | green tea, black tea |
Quick Details
Specifications

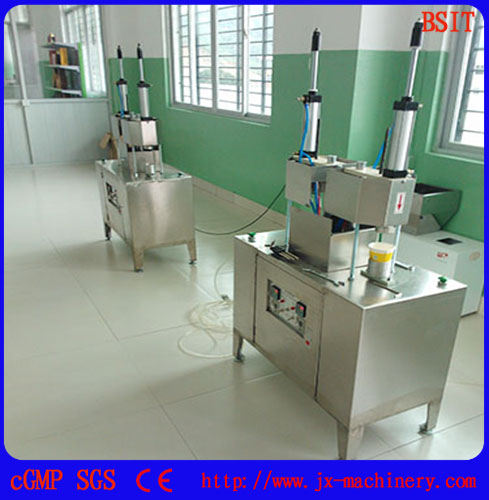

Tea Hidden Cup Machine with two wroking position
Summary
Summary
this machine is suitable for packing tea fannings, tea bag, tea, Herb-tea and different shape tea from foodstuff industry.
Introduction
Cylinder series is our factory new model manufacture development equipment. Use automation cylinder down-pressure sealing principles, double location operation Independent. Adjust heat pressing time freely and strong utility, the machine use advanced automatic numerical control thermostat technology, stable property, high thermal efficiency, Long life, low power consumption, less noise. Used 220V power whole machine adopts all stainless steel. Bright and clean, original paper cup separation technique for prevent adhesion of finished good tea cup and heat pressing head, operation more convenient and practical.
Main technical parameter:
Machine adopt new type round filter pape rand mesh round filter paper ( thickness 18 grams, Diameter:77mm), Paper cup specification:6-30 oz and others;
Raw material: tea fannings, tea bag, tea, Herb-tea and fruit tea, coffee milk-tea and different shape tea.
Technical Parameter:
Technical Parameter:
Power supply: 220V 50 Hz
total power:0.3kw
Rating Capacity: 650 cups / hour by one worker, 1300 cups/hour by two worker.
Overall dimention (LxWxH):1300x400x1500mm
Total weight:58kg
Heat pressing temperture: 225°C (can control)
Heat pressing time per cup:1.5 second,
Temperature control precision: ±5°C
Air compressor allocation: 2HP air pressure: 0.6Mpa
