Quick Details

Razor Type: Cross Razor
Type: Barbed Wire Mesh
Surface Treatment: Galvanized
Material: Iron Wire
Model Number: razor barbed wire
Brand Name: razor barbed wire
Place of Origin: China (Mainland)
model: Hot Dipped Galvanized Razor Wire Mesh BTO22
Material: Iron Wire
Surface Treat: Galvanized
Type: Barbed Wire Coil
Razor Type: Cross Razor
Main type: sprial razor wire/straight razor
Thickness: 0.5+/_0.05
Wire Dia: 2.5+/-0.1
Barb Length:: 12+/-1,18+/-1,22+/-1,28,30,6
OD: 450mm-960mm

Specifications

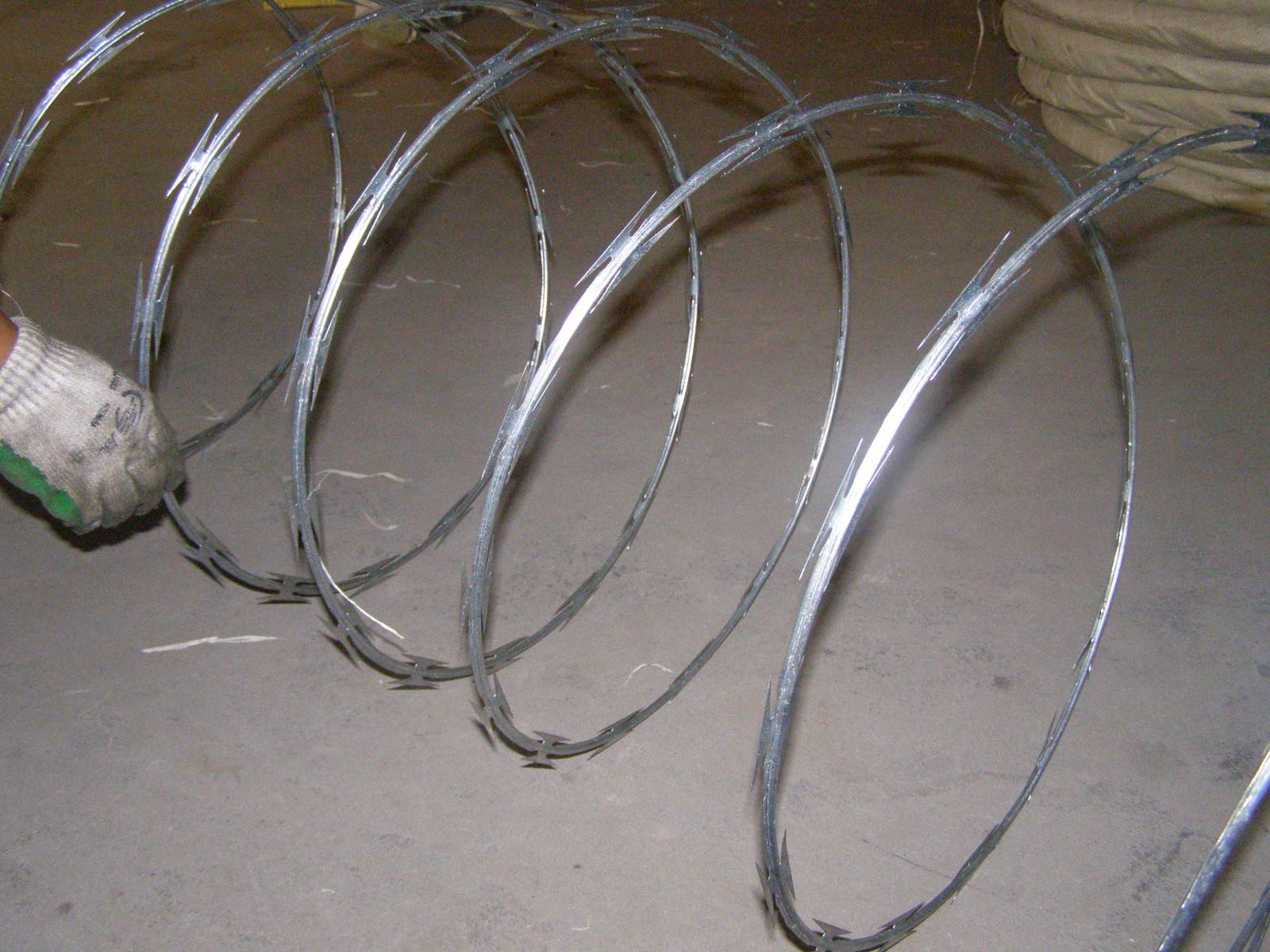

Hot dipped galvanized razor wire mesh BTO22 with 980mm outer diameter
Hot dipped galvanized razor wire mesh BTO22 with 980mm outer diameter
1.Process of Hot Dipped Galvanized Razor Wire Mesh BTO22:




the razor barbed wire welding nets fence type used galvanized Stainless steel wire, steel wire pressing, numerical control machine of high frequency welding line and into.

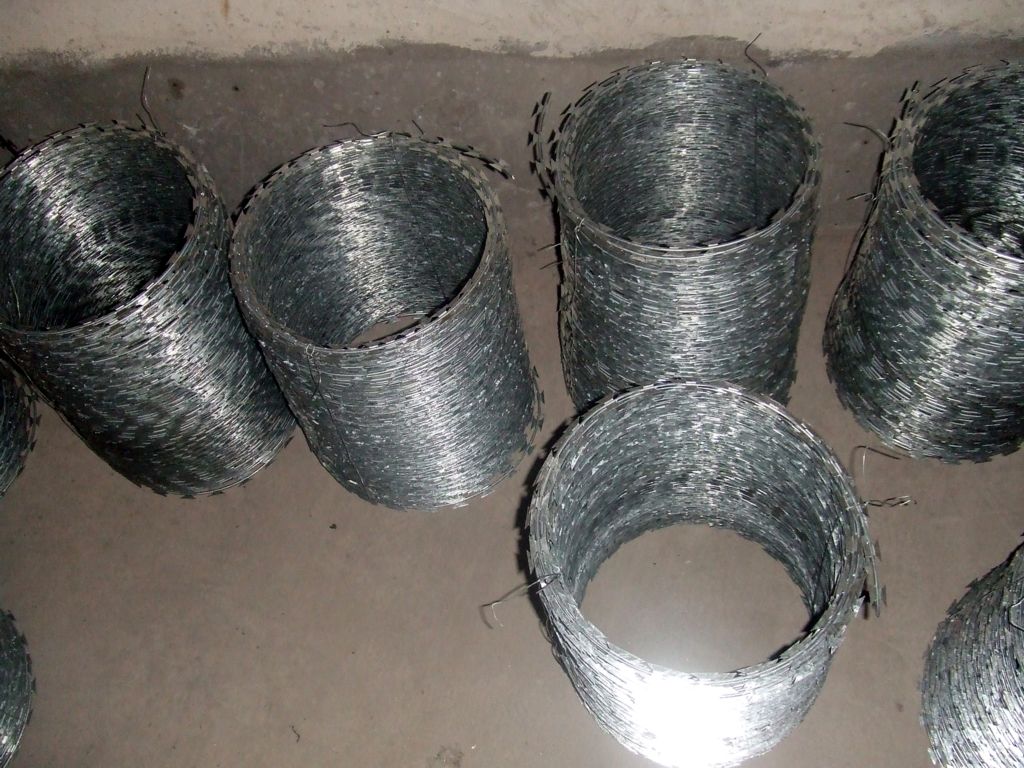

 Hot Dipped Galvanized Razor Wire Mesh BTO22 with 980mm Outer Diameter









2.Features of Hot Dipped Galvanized Razor Wire Mesh BTO22





It USES the steel plate stamping forming bag attached to steel wire (steel wire) above, pointed by sharp galvanized steel or stainless steel thin blade, high tension wire do a combination of polishing, nets of level off, nets hole uniform, welding firmly, no virtual welding no leak phenomenon, no plastic welding liquid flow phenomenon, it is beautiful and chilling, and play a good protection, stunning, prevent climb role.





3.Material of Hot Dipped Galvanized Razor Wire Mesh BTO22:



Galvanized steel wire excellent polishing; for hot plate with high zinc or stainless steel plate. Can also plastic-sprayed surface or plastic coated, in order to achieve better anticorrosive acid and alkali resistant effect, extend the use fixed number of year



4.Character of Hot Dipped Galvanized Razor Wire Mesh BTO22:



Corrosion resistance, prevent sunlight, resistance against weathering drying, etc. Anticorrosion form have electroplating, hot plating.





5.the more  information you could see the table:





Type

Razor Mesh(Diamond Hole)

Razor Mesh(Square Hole)

Thickness of Sheet

0.5mm±0.05mm

Wire Diameter

2.5mm±0.1mm

Height

1.0m-2.4m

Length

2.0m-10.0m

Mesh Size

75mmx150mm

150mmx200mm

150mmx300mm

150mmx150mm

200mmx200mm

300mmx300mm

Note:accessory like post bar or clips can be provided too.

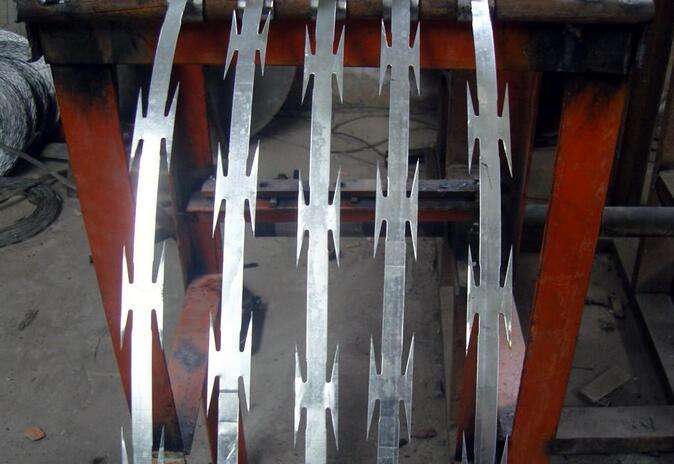

Hot Dipped Galvanized Razor Wire Mesh BTO22 with 980mm Outer Diameter

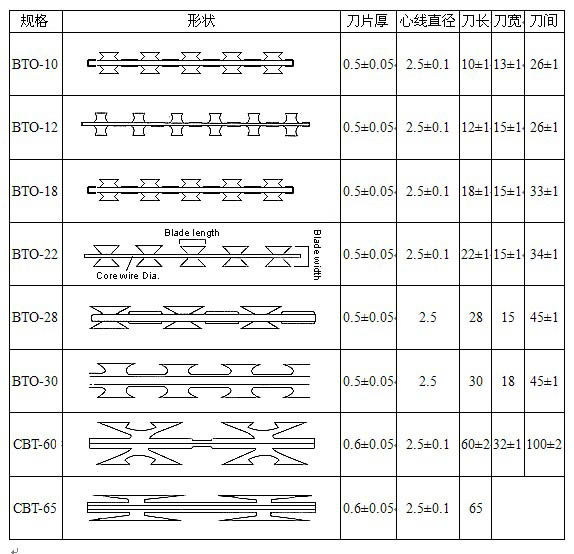

Razor blade type and specification
Reference Number

Thickness

(mm)

Wire Dia

(mm)

Barb Length

(mm)

Barb Width

(mm)

Barb spacing

(mm)

BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 45±1
CBT-60 0.5±0.05 2.5±0.1 60±1 32±1 100±1
CBT-65 0.5±0.05 2.5±0.1 65±1 21±1 100±1
Hot dipped galvanized razor wire mesh BTO22 with 980mm outer diameter


Specifications:

Outside Diameter

No. of Loops

Standard Length per Coil

Type

Notes

450mm

33

8M

CBT-65

Single coil

500mm

41

10M

CBT-65

Single coil

700mm

41

10M

CBT-65

Single coil

960mm

53

13M

CBT-65

Single coil

500mm

102

16M

BTO-12.18.22

Cross type

600mm

86

14M

BTO-12.18.22

Cross type

700mm

72

12M

BTO-12.18.22

Cross type

800mm

64

10M

BTO-12.18.22

Cross type

960mm

52

9M

BTO-12.18.22

Cross type

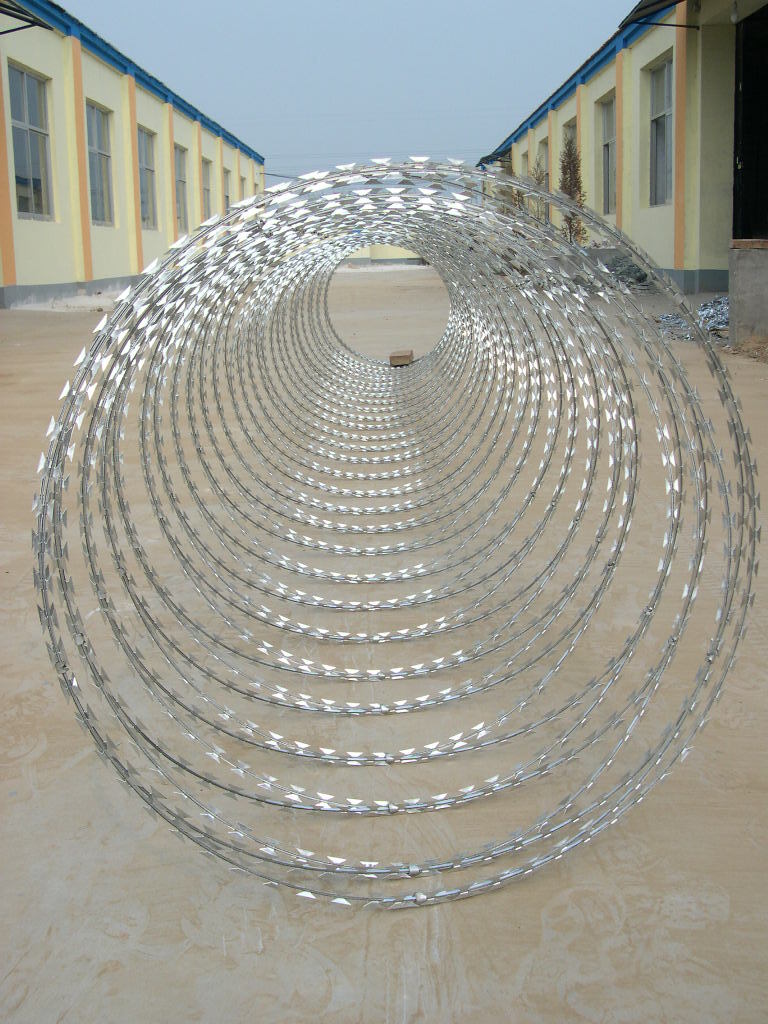

CROSSED TYPE OR SINGLE TYPE concertina razor wire mesh

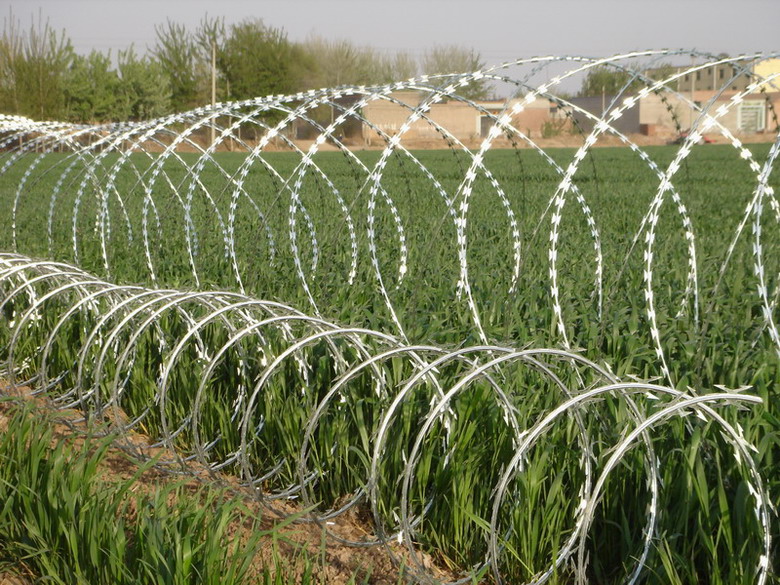

CROSSED TYPE OR SINGLE TYPE concertina razor wire mesh
