| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | ce,fda |
| Weight: | 1500kg |
| Dimension(L*W*H): | 3500*2200*1700mm |
| Power(W): | 1500W |
| Voltage: | AC220V 1phase |
| Model Number: | RF-1325-4 |
| Brand Name: | rayfine |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| packing: | wood package |
| guide rails: | HGH25CA |
| machine body: | low heavy body |
Quick Details
Specifications
Machine parameter:
|
Model
|
RF-1325-4 |
|
XY working area
|
300X2500mm
|
|
Z working area
|
200mm
|
|
Table size
|
1480X3000mm
|
|
Max feeding
|
>25m/min
|
|
Work-holding
|
clamp
|
|
Processor
|
DSP/Frequency 100MHz
|
|
Interface
|
USB
|
|
Command
|
G code*.u00*.mmg*.plt
|
|
Surrounding for software
|
DSP
|
|
Power (not include the spindle )
|
2KW
|
|
Working voltage
|
AC220V/50Hz
|
|
spindle power rate
|
2.2KW(Domestic water cooling)
|
|
spindle rotating speed
|
0-24000rmp/min
|
|
Drive motor
|
steper
|
Machine featurers:

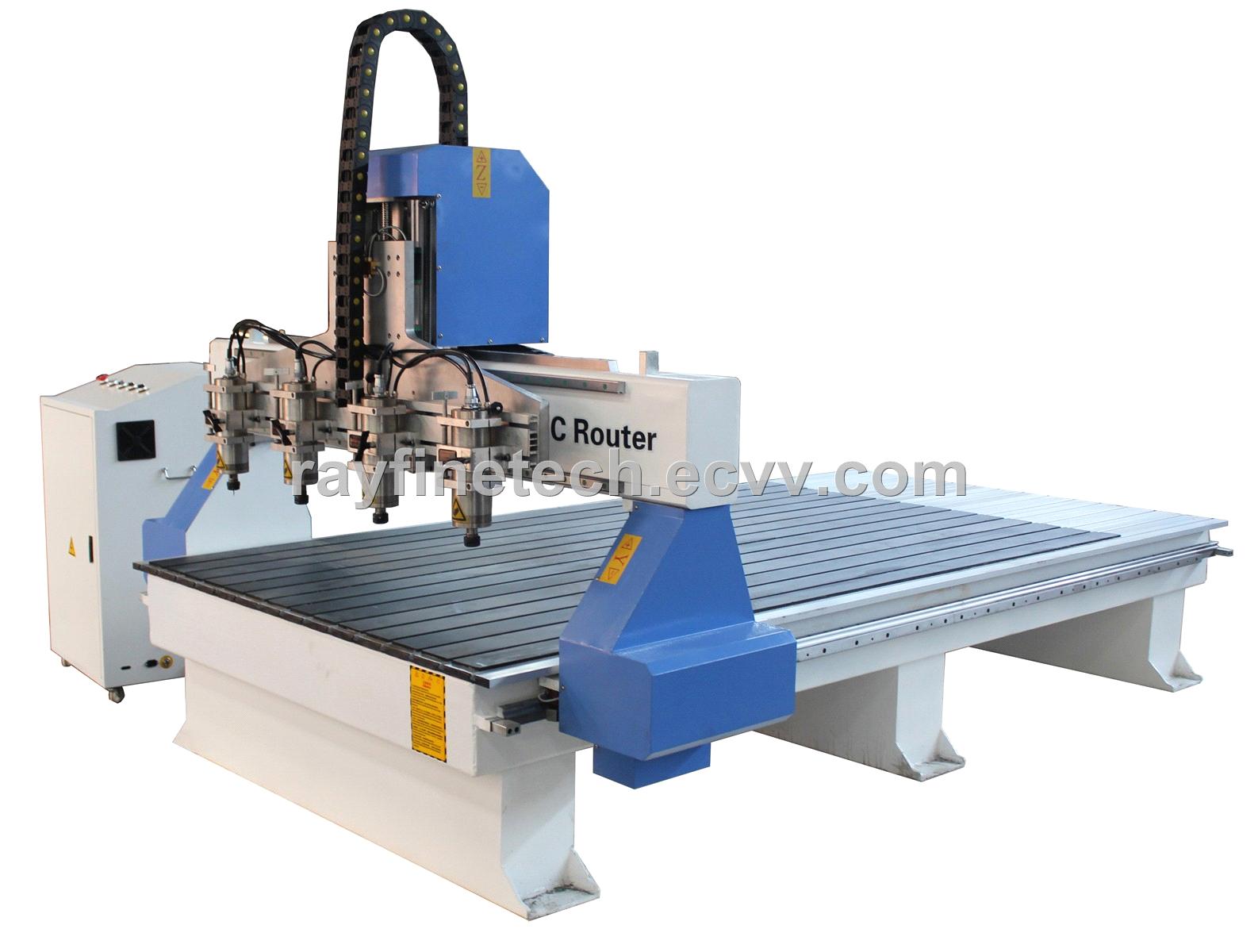

Two heads cnc router more efficiency for relief making.
Tai wan hiwin linear square rails with high precision.
Powerful rack gear and pinion drive with high working speed 20m/min
Big steel pipe machine body which is more stable and durable.
Advanced DSP offline control system
