| Protection Level: | IP64 |
|---|---|
| Operating Temperature: | -25+80 |
| Max. Voltage: | 250 |
| Max. Current: | 15 |
| Brand Name: | RENEW |
| Model Number: | RZ-15GD-B3 |
Quick Details
Specifications

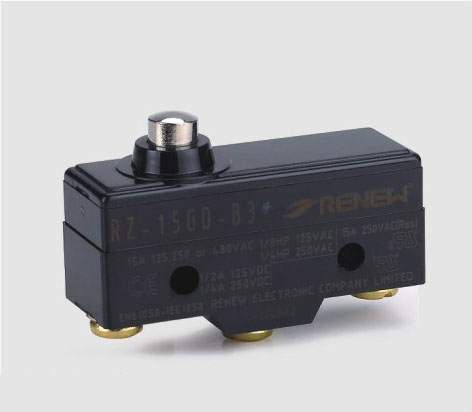

P/N:Short spring plunger type snap action switch/micro switch/snap action switch
Model No.:RZ-15GD-B3
A micro switch with high quality
There are UL CCC CE Certificates
It can be used in Home and Industies
Operating characteristics
Item |
Characteristics |
of max. |
2.45-3.43N(250-350gf) |
RF min |
1.12N(114gf) |
PT max |
0.4mm |
MD max |
0.05mm |
OT min |
1.6mm |
OP |
21.5±0.5mm |
CERTIFICAT:UL. CE. ISO9001.CCC
