| Type: | Graphic |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | Parallel or Serial |
| Resolution: | 128x64 |
| application: | LCM |
| Model Number: | LM6059B |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
| Item | Description of LCD COG Display |

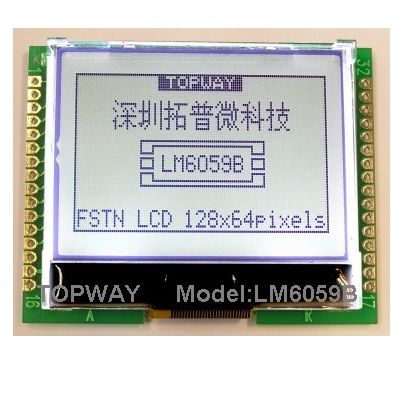

| Product Name | 128 X 64 COG LCD Module (LM6059B) |
| Model No. | LM6059B |
| Dot Format | 128 x 64 |
| Outline Dimension(mm) | 50.9 x 40.9 x 8.7MAX |
| Viewing Area(mm) | 37.0 x28.0 |
| Dot Size( mm) | 0.252 x 0.33 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Pos or STN-Blue |
| Backlight | White LED backlight |
| Driver IC | ST7565 |
| Power supply | 3.3V |
| Interface | Parallel or Serial |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
1. 128x64 dots
2. COG type, cost effective
3. Parallel & Serial interface optional
4. 3.3V power supply
5. Ultra high contrast, FSTN-positive, white LED backlight
6. Compact design, low power consumption, widely applied on hand-held devices
