| Place of Origin: | China (Mainland) |
|---|---|
| Model Number: | ZR-056 |
| Alloy Or Not: | Is Alloy |
| Length: | From 3m to 30m |
| Thickness: | From 0.4mm to 1.65mm |
| Grade: | TP2 |
| Specification: | From 6.35mm to 22.23mm |
| Application: | Air Condition Or Refrigerator |
| Type: | Pancake Coil Copper Pipe |
| Ductless Compatibility: | 9000BTU-36000BTU |
Quick Details
Specifications
flame retardant insulated air conditioner copper tube for split AC
1.
Production Specifications

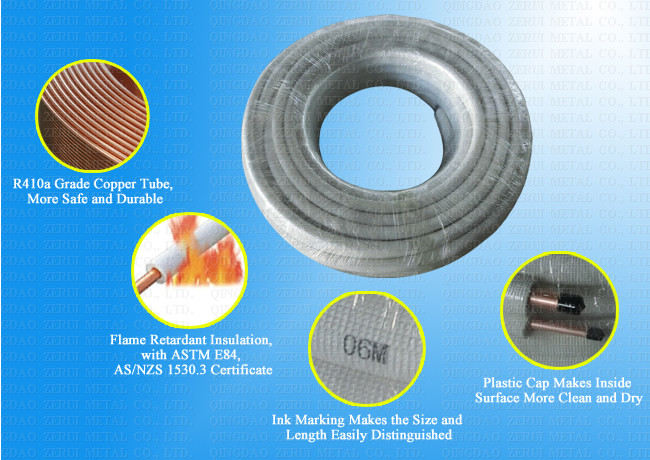

Product Pictures
Technical Properties for Insulation Tube
| Insulation Type | Thermal Conductivity | Vapor Barrier | Water Absorption | Tensile Strength | Shrinkage | Fire Proof Rating |
|
Irradiation Polythene Insulation (IXPE Insulation) |
≤0.033W/m.k | u≥5000 |
≤0.0076 g/100cm2 |
≥0.34MPa | ≤7% |
ASTM E84 UL 94 AS/NZS 1530.3 EN 13501-1 |
Chemical Composition & Mechanical Property - ASTM B280 Copper Tube
| Copper Alloy | Chemical Composition | Temper | Mechanical Property |
Grain Size mm |
||
|
Copper % |
Phosphorus % |
Tensile Strength MPa |
Elongation % |
|||
| C12200 | ≥ 99.90 | 0.015-0.040 | O60 | ≥ 205 | ≥ 40 | ≥ 0.040 |
| C12200 | ≥ 99.90 | 0.015-0.040 | O50 | ≥ 205 | ≥ 40 | 0.015-0.040 |
Chemical Composition & Mechanical Property - EN 12735-1 Copper Tube
| Copper Alloy | Chemical Composition | Temper | Mechanical Property | |||
|
Copper % |
Phosphorus % |
Tensile Strength MPa |
Elongation % |
Hardness HV |
||
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R220 | ≥ 220 | ≥ 40 | 40-70 |
Chemical Composition & Mechanical Property - AS/NZS 1571 Copper Tube
| Copper Alloy | Chemical Composition | Temper |
Hardness HV |
Grain Size mm |
|
|
Copper % |
Phosphorus % |
||||
| C12200 | ≥ 99.90 | 0.015-0.040 | O | ≤ 75 | ≤ 0.065 |
Cleanness Requirement - Air Conditioner and Refrigeration Copper Tube
| Copper Alloy | Temper | Cleanness | Standard |
| C12200 | O60 | ≤ 38mg/m2 | ASTM B280 / EN 12735-1 / AS 1571 |
Size Range
| Insulated Copper Tube - Pair Coil | ||||
| size |
copper tube outside diameter x wall thickness (mm) |
insulation thickness (mm) | Insulation inner diameter (mm) | length |
| 1/4"+3/8" | 6.35x0.56 - 9.52x0.56 | 8mm / 9mm | 8.0 - 12.0 | 3-30 meters |
| 1/4"+3/8" | 6.35x0.61 - 9.52x0.61 | 8mm / 9mm | 8.0 - 12.0 | |
| 1/4"+3/8" | 6.35x0.71 - 9.52x0.71 | 8mm / 9mm | 8.0 - 12.0 | |
| 1/4"+3/8" | 6.35x0.81 - 9.52x0.81 | 8mm / 9mm | 8.0 - 12.0 | |
| 1/4"+1/2" | 6.35x0.56 - 12.7x0.56 | 8mm / 9mm | 8.0 - 14.0 | |
| 1/4"+1/2" | 6.35x0.61 - 12.7x0.61 | 8mm / 9mm | 8.0 - 14.0 | |
| 1/4"+1/2" | 6.35x0.71 - 12.7x0.71 | 8mm / 9mm | 8.0 - 14.0 | |
| 1/4"+1/2" | 6.35x0.81 - 12.7x0.81 | 8mm / 9mm | 8.0 - 14.0 | |
| 1/4"+5/8" | 6.35x0.56 - 15.88x0.61 | 8mm / 9mm | 8.0 - 18.0 | |
| 1/4"+5/8" | 6.35x0.61 - 15.88x0.71 | 8mm / 9mm | 8.0 - 18.0 | |
| 1/4"+5/8" | 6.35x0.71 - 15.88x0.81 | 8mm / 9mm | 8.0 - 18.0 | |
| 1/4"+5/8" | 6.35x0.81 - 15.88x1.02 | 8mm / 9mm | 8.0 - 18.0 | |
| 3/8"+5/8" | 9.52x0.56 - 15.88x0.71 | 8mm / 9mm | 12.0 - 18.0 | |
| 3/8"+5/8" | 9.52x0.61 - 15.88x0.81 | 8mm / 9mm | 12.0 - 18.0 | |
| 3/8"+5/8" | 9.52x0.71 - 15.88x0.91 | 8mm / 9mm | 12.0 - 18.0 | |
| 3/8"+5/8" | 9.52x0.81 - 15.88x1.02 | 8mm / 9mm | 12.0 - 18.0 | |
| 3/8"+3/4" | 9.52x0.56 - 19.05x0.81 | 8mm / 9mm | 12.0 - 22.0 | |
| 3/8"+3/4" | 9.52x0.61 - 19.05x0.91 | 8mm / 9mm | 12.0 - 22.0 | |
| 3/8"+3/4" | 9.52x0.71 - 19.05x1.02 | 8mm / 9mm | 12.0 - 22.0 | |
| 3/8"+3/4" | 9.52x0.81 - 19.05x1.14 | 8mm / 9mm | 12.0 - 22.0 | |
| 1/2"+3/4" | 12.7x0.56 - 19.05x0.81 | 8mm / 9mm | 14.0 - 22.0 | |
| 1/2"+3/4" | 12.7x0.61 - 19.05x0.91 | 8mm / 9mm | 14.0 - 22.0 | |
| 1/2"+3/4" | 12.7x0.71 - 19.05x1.02 | 8mm / 9mm | 14.0 - 22.0 | |
| 1/2"+3/4" | 12.7x0.81 - 19.05x1.14 | 8mm / 9mm | 14.0 - 22.0 | |
| Insulated Copper Tube - Single Coil | ||||
| size |
copper tube outside diameter x wall thickness (mm) |
insulation thickness (mm) | Insulation inner diameter (mm) | length |
| 1/4" | 6.35x0.56 | 8mm / 9mm | 8.0 | 3-50 meters |
| 1/4" | 6.35x0.61 | 8mm / 9mm | 8.0 | |
| 1/4" | 6.35x0.71 | 8mm / 9mm | 8.0 | |
| 1/4" | 6.35x0.81 | 8mm / 9mm | 8.0 | |
| 3/8" | 9.52x0.56 | 8mm / 9mm | 12.0 | |
| 3/8" | 9.52x0.61 | 8mm / 9mm | 12.0 | |
| 3/8" | 9.52x0.71 | 8mm / 9mm | 12.0 | |
| 3/8" | 9.52x0.81 | 8mm / 9mm | 12.0 | |
| 1/2" | 12.7x0.56 | 8mm / 9mm | 14.0 | |
| 1/2" | 12.7x0.61 | 8mm / 9mm | 14.0 | |
| 1/2" | 12.7x0.71 | 8mm / 9mm | 14.0 | |
| 1/2" | 12.7x0.81 | 8mm / 9mm | 14.0 | |
| 5/8" | 15.88x0.71 | 8mm / 9mm | 18.0 | |
| 5/8" | 15.88x0.81 | 8mm / 9mm | 18.0 | |
| 5/8" | 15.88x0.91 | 8mm / 9mm | 18.0 | |
| 5/8" | 15.88x1.02 | 8mm / 9mm | 18.0 | |
| 3/4" | 19.05x0.81 | 8mm / 9mm | 22.0 | |
| 3/4" | 19.05x0.91 | 8mm / 9mm | 22.0 | |
| 3/4" | 19.05x1.02 | 8mm / 9mm | 22.0 | |
| 3/4" | 19.05x1.14 | 8mm / 9mm | 22.0 | |
| 7/8" | 22.23x0.91 | 8mm / 9mm | 25.0 | |
| 7/8" | 22.23x1.14 | 8mm / 9mm | 25.0 | |
| 7/8" | 22.23x1.22 | 8mm / 9mm | 25.0 | |
| 7/8" | 22.23x1.40 | 8mm / 9mm | 25.0 | |
